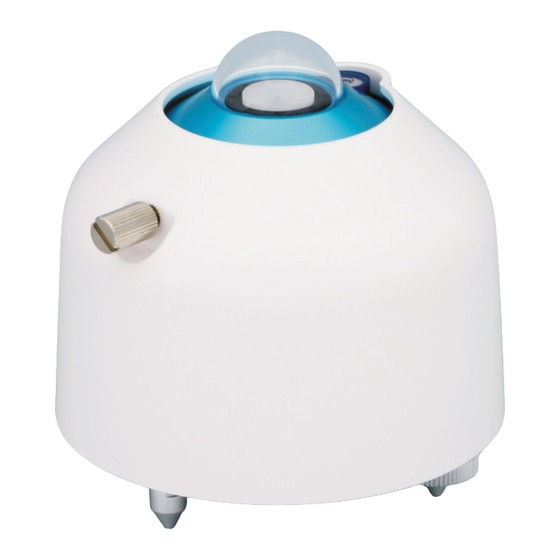

Campbell MS-80M Product Manual

Campbell MS-80M Product Manual

Secondary standard pyranometer

Advertisement

Quick Links

Revision: 05/2020
Copyright © 2018 – 2020
Campbell Scientific, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-80M and is the answer not in the manual?

Questions and answers

Summary of Contents for Campbell MS-80M

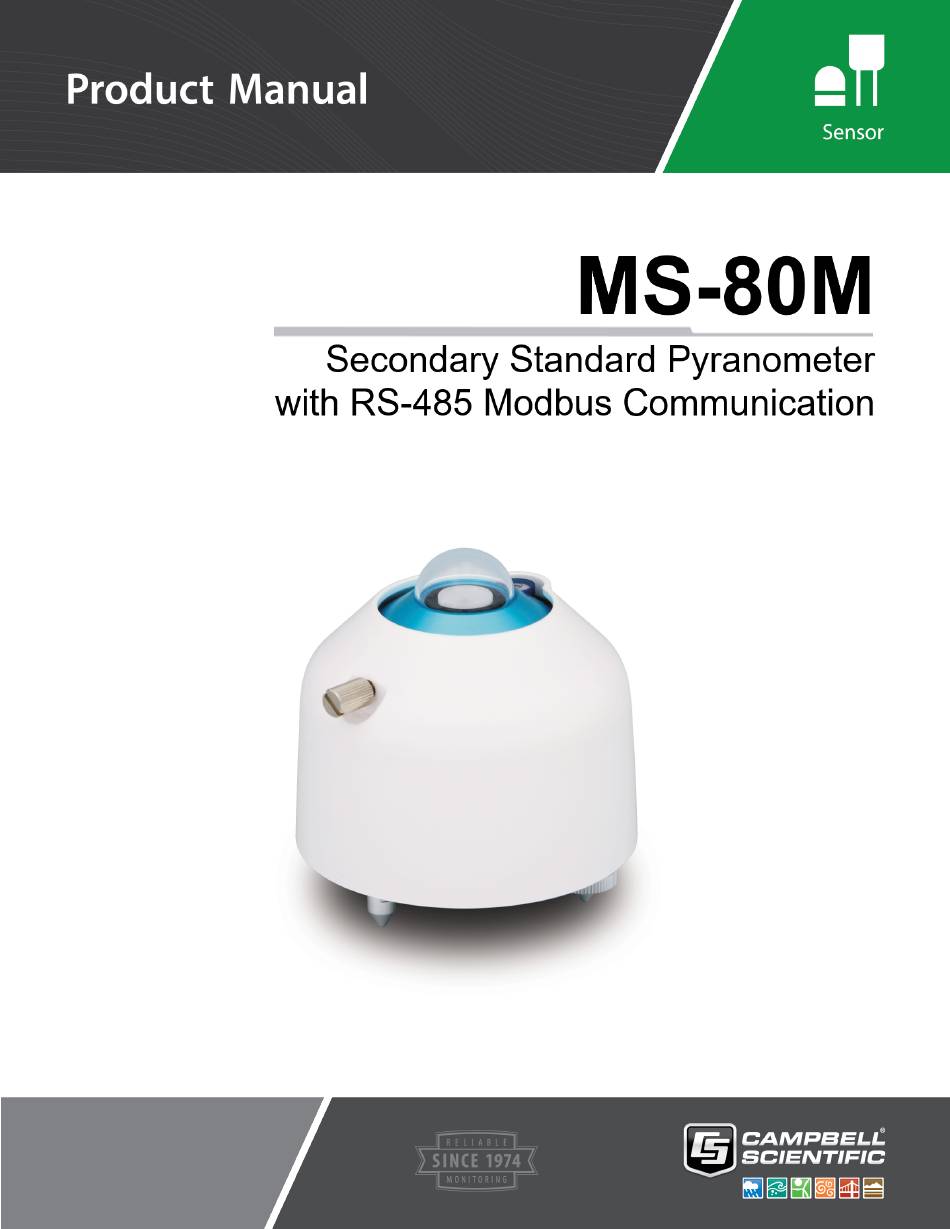

  • Page 1 Revision: 05/2020 Copyright © 2018 – 2020 Campbell Scientific, Inc.
  • Page 2: Table Of Contents

    5. Mounting procedure 6. MS-80M wiring 7. RS-485 default configuration 8. MS-80M register map 9. RS-485 programming 10. Maintenance and troubleshooting Appendix A. Importing Short Cut code into CRBasic Editor Appendix B. MS-80M example program Table of Contents - i...
  • Page 3: Ms-80M Introduction

    Modbus RTU 485 output; and a five-year warranty and recalibration interval. The MS-80M features a compact design with internal desiccation, single dome, isolated thermopile detector, quartz diffusor, immunity to offsets, ultra-low temperature dependency, and exceptional non-linearity characteristics.
  • Page 4 3. In the Available Sensors and Devices box, type MS-80M or locate the sensor in the Sensors > Meteorological > Solar Radiation folder. Double-click the MS-80M. Type the RS-485 address. Default value is 53. 4. Click the Wiring tab to see how the sensor is to be wired to the data logger. Click OK after wiring the sensor.
  • Page 5 9. If the sensor is connected to the data logger, check the output of the sensor in the data logger support software data display in LoggerNet, PC400, RTDAQ, or PC200W to make sure it is making reasonable measurements. MS-80M Secondary Standard Pyranometer with RS-485 Modbus Communication...
  • Page 6: Ms-80M Specifications

    5°. Diffuse solar radiation is less influenced by obstructions near the horizon. The sensor should be mounted with the cable MS-80M Secondary Standard Pyranometer with RS-485 Modbus Communication...
  • Page 7: Mounting Procedure

    4. Secure the mounting bracket to the crossarm or vertical pole using the hardware included with the mounting bracket. The CM255 uses one U-bolt, nuts, flat washers, and lock washers to mount the bracket, as shown in the following figure. MS-80M Secondary Standard Pyranometer with RS-485 Modbus Communication...
  • Page 8 For pyranometers mounted horizontally, ensure the mounting bracket is horizontal in two dimensions. For pyranometers mounted at an angle, set the mounting bracket angle to the desired angle prior to tightening the mounting hardware. MS-80M Secondary Standard Pyranometer with RS-485 Modbus Communication...
  • Page 9: Ms-80M Wiring

    Modbus networks. 8. MS-80M register map Table 8-1 (p. 8) provides the register map for the most commonly used values. A comprehensive register map is available in the EKO manual. MS-80M Secondary Standard Pyranometer with RS-485 Modbus Communication...
  • Page 10: Rs-485 Programming

    9. RS-485 programming The RS-485 output can be directly read by a MeteoPV, CR6-series, CR1000X-series, or Modbus RTU RS-485 network. Other Campbell Scientific data loggers can use an MD485 multidrop interface to read the RS-485 output (refer to the MD485 manual).
  • Page 11: Maintenance And Troubleshooting

    10. Maintenance and troubleshooting The MS-80M has no service items requiring scheduled replacement. There is no accessible desiccant cartridge to maintain. Use pure alcohol or distilled water and a lint-free cloth to clean the dome, removing smears and deposits. Local conditions and application dictate cleaning interval.
  • Page 12 Check the cable for damage and ensure that it is properly connected to the data logger. MS-80M Secondary Standard Pyranometer with RS-485 Modbus Communication...
  • Page 13: Appendix A. Importing Short Cut Code Into Crbasic Editor

    Block. This adds an apostrophe (') to the beginning of each of the highlighted lines, which instructs the data logger compiler to ignore those lines when compiling. The Comment Block feature is demonstrated at about 5:10 in the CRBasic | Features video MS-80M Secondary Standard Pyranometer with RS-485 Modbus Communication...
  • Page 14: Appendix B. Ms-80M Example Program

    Power in (12 V) Black Power ground Yellow RS-485 G Clear Shield ⏚ (analog ground) CRBasic Example 1: CR1000X program that measures the MS-80M ' Variables associated with Pyranometer 1 (MS-80M) ModbusMS80_1(2) As Float Public ModbusResult_1 Public MS80M_Irradiance As Float Unit s MS80M_Irradiance=W/m²...
  • Page 15 CRBasic Example 1: CR1000X program that measures the MS-80M SerialOpen (ComC5,19200,2,0,50,4) Scan (1, Sec, 0, 0) 'MS-80M ModbusMaster (ModbusResult_1,ComC5,19200,65,3,ModbusMS80_1,22,2,1,100,0) MS80M_Irradiance = ModbusMS80_1(1) MS80M_InternalTemp = ModbusMS80_1(2) CallTable OneMin NextScan EndProg MS-80M Secondary Standard Pyranometer with RS-485 Modbus Communication...
  • Page 16 See Product Details on the Ordering Information pages at www.campbellsci.com. Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer.
  • Page 17 Campbell Scientific reserves the right to refuse service on products that were exposed to contaminants that may cause health or safety concerns for our employees.
  • Page 18 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
  • Page 19 Campbell Scientific regional offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
