Status Led; Usb Connection - Pegasus Astro FocusCube v2 Operating Manual

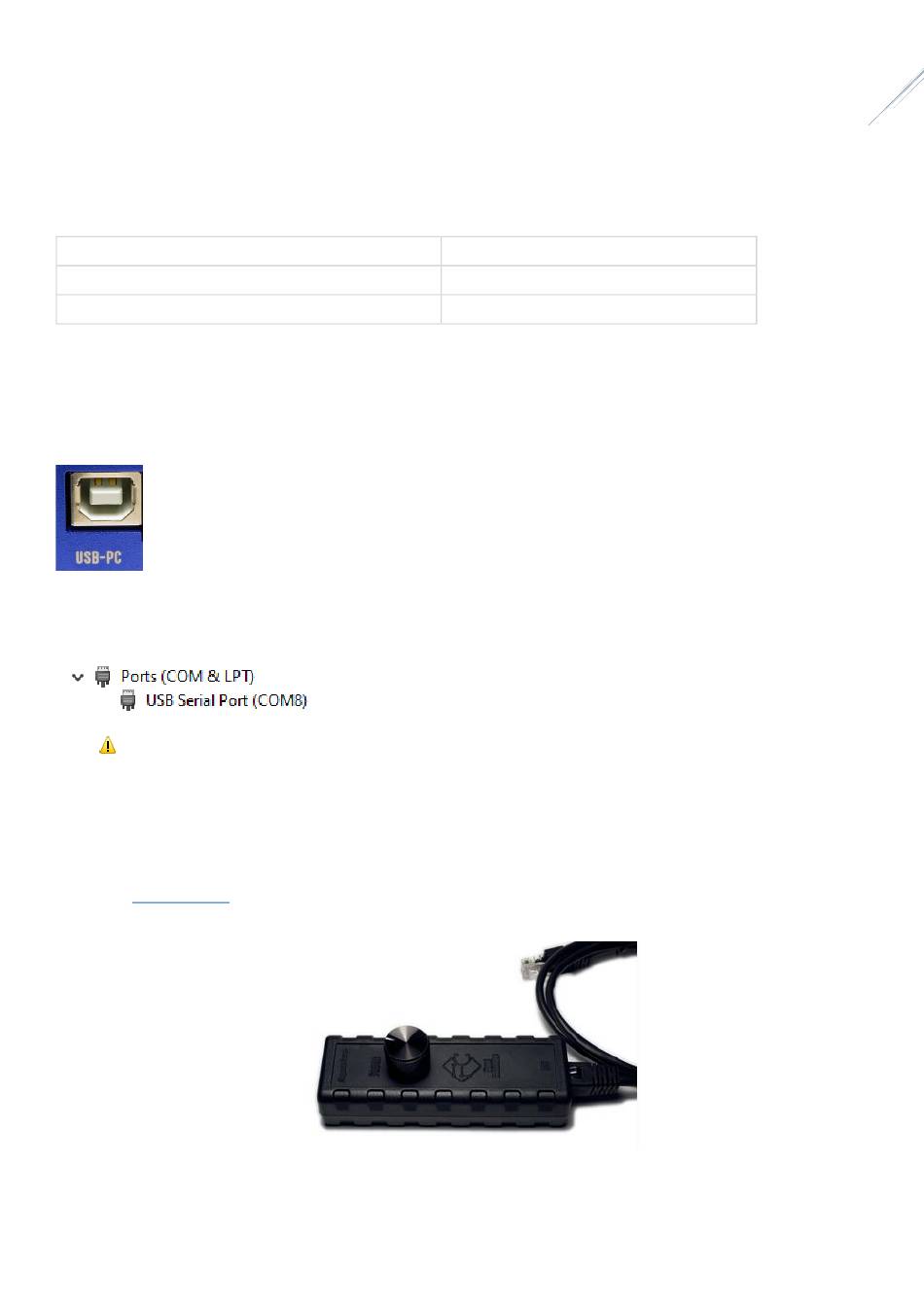

Status Led

Two LED indicators are fitted right and left of the RJ45 socket. The light displayed by the led indicates the status of the device.
Permanently Green Light
Permanently Orange Light ON
Orange Light OFF

USB Connection

Unit has been designed with a USB type B connector. Plug one end into a spare USB 2.0 port on the computer or USB Hub, the
other end into the USB type B receptacle on the controller labelled USB.
Controller will be identified as "FocusCube v2 revX" and a "USB Serial Port COMx" will be appeared to the device manager of
Windows, under Ports (COM & LPT).
Each device gets a unique serialized COM number (e.g: COM8) so you can simultaneously plug to your PC as many
controllers as you need.
Hand Controller - Rotary Encoder Knob
An optional hand controller
refer to the Hand Controller manual for operating instructions.
for manual focus control can be acquired for those who might want to add this functionality. Please
Controller is fully operational
Motor is moving
Motor is idle
PEGASUS ASTRO – FOCUSCUBE V2
4
| 1.2
