Pegasus Astro FocusCube v2 Operating Manual page 14

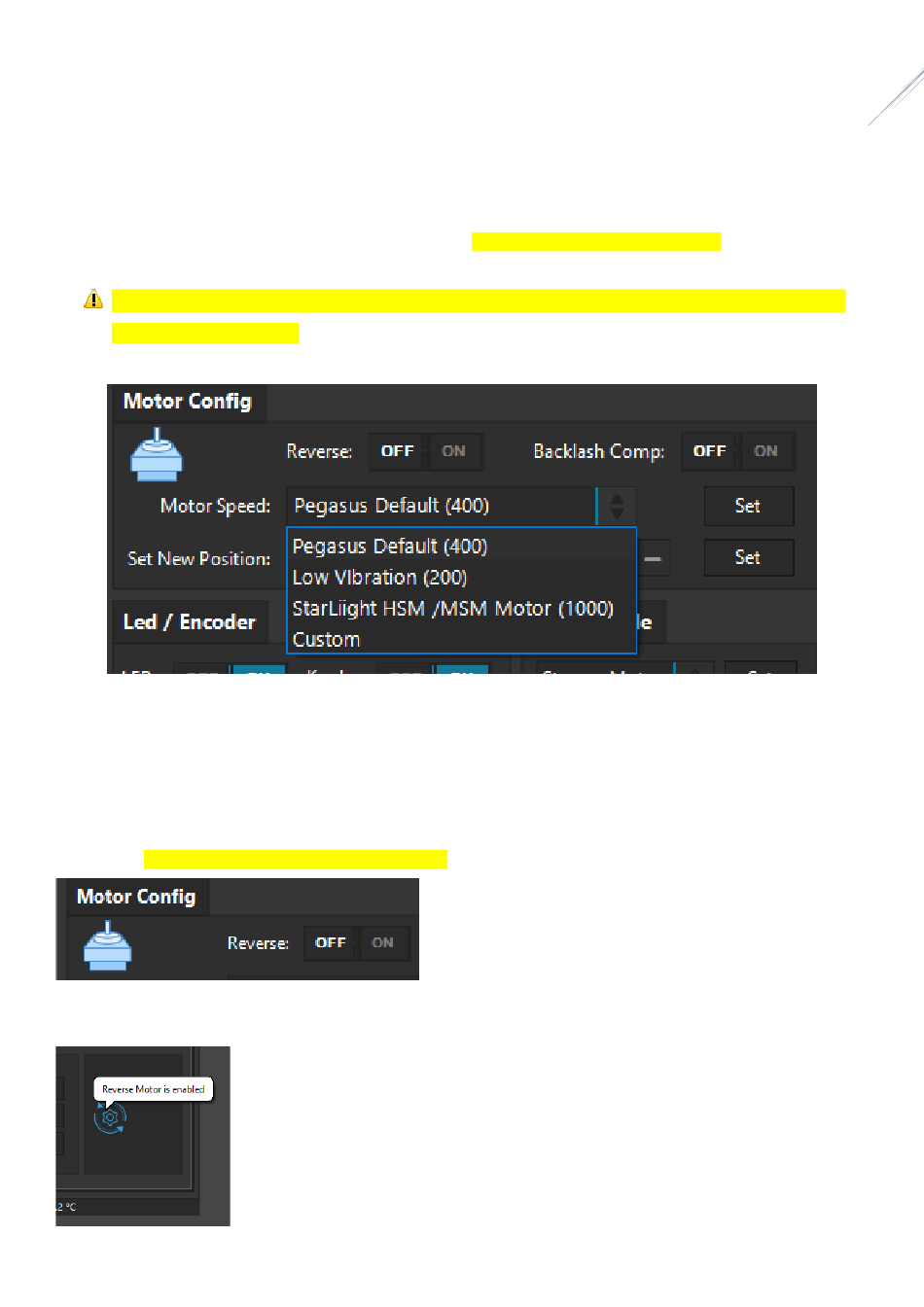

Motor Config –> Motor Speed
All stepper motors have limits of the max speed they can achieve. If you set a higher "max speed" than your motor can support,
it will probably jump / loose steps and make weird noises as it will never be able to keep up with the controller's designated
steps.
Click the Motor Speed drop down menu and select the desired max speed.
Click Set button on the right to push this setting to the controller. Setting is stored in controller's memory
WE STRONGLY SUGGEST TO LEAVE THE MAX SPEED TO "PEGASUS DEFAULT" AS IT IS OPTIMIZED FOR THE
PEGASUS STEPPER MOTOR
Motor Config -> Reverse Direction
In case you need to reverse the motor rotation you can switch the "Reverse" button to ON. Reverse button is located at
"Settings tab. Reverse Setting is stored in controller's memory
A reverse icon will be appeared at the status window of the main application pointing that you have enabled this option.
PEGASUS ASTRO – FOCUSCUBE V2
14
| 1.2
