- Page 1 VERSION 1.1 NOVEMBER 10, 2021 EZY FOCUS HAND CONTROLLER PRODUCT MANUAL BY PEGASUS ASTRO [COMPANY ADDRESS]...
-
Page 2: Device Care

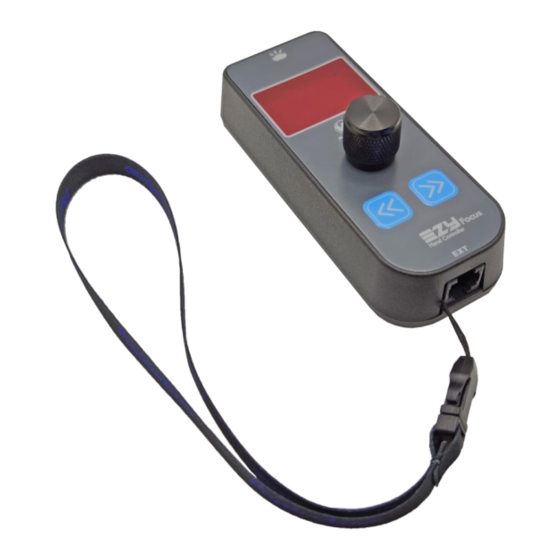

INTRO Thank you for purchasing Pegasus Astro – EZY Focus Hand Controller. The EZY Focus Hand Controller is a perfect match for your Ultimate Powerbox v2 or Prodigy Microfocuser. This little device allows precision control of your motorized focuser. It also ensures a vibration free focus routine! DEVICE CARE •... -
Page 3: What Is Inside The Box
Use the RJ11 and connect one side to the EXT port of the UPBv2 or Prodigy Microfocuser. Connect the other side to the EZY Focus Hand Controller. Power device after you connect the EZY Focus hand controller EZY Focus will initialize, communicate with main device and display the motor position. OVERVIEW 11/10/2021... -
Page 4: Focus Control
POWER EZY Focus requires only the RJ12 cable for power and data exchange from main focus device. DISPLAY An 128x64 pixels red transparent film OLED display ensures that your night vision will not get affected. Brightness of the display can be tuned in settings menu. -
Page 5: Red Light
Ultimate Powerbox v2 automatically detects and uses this sensor (instead of stock sensor) to retrieve environmental values. (ambient temperature and relative humidity). This means that when you have the Hand controller plugged into the Ultimate Powerbox v2 you do not need the stock env sensor of the UPBv2 anymore. 11/10/2021 EZY FOCUS HAND CONTROLLER... - Page 6 PRESETS EZY Focus allows three (3) presets (focus positions) to be stored in memory. You can easily retrieve this motor position and command the motor to move to this preset. To enter focus preset menu double click the knob. Preset menu shows the 3 (#) presets and the stored motor position in each preset.
- Page 7 Define step count for the Fine focus rate 3. Light Tune the brightness (0-10) of Red LED light in front of the hand controller. 4. Units Define Celsius or Fahrenheit degree for ambient temperature 5. Display Tune display brightness (0-10) 11/10/2021 EZY FOCUS HAND CONTROLLER...
-
Page 8: Frequently Asked Questions
SET OUTER LIMIT Press and hold button for 2 seconds to enable outer position limit. EZY Focus hand controller sets current motor position as outer limit position. The hand controller will not allow you to move motor beyond this position.
