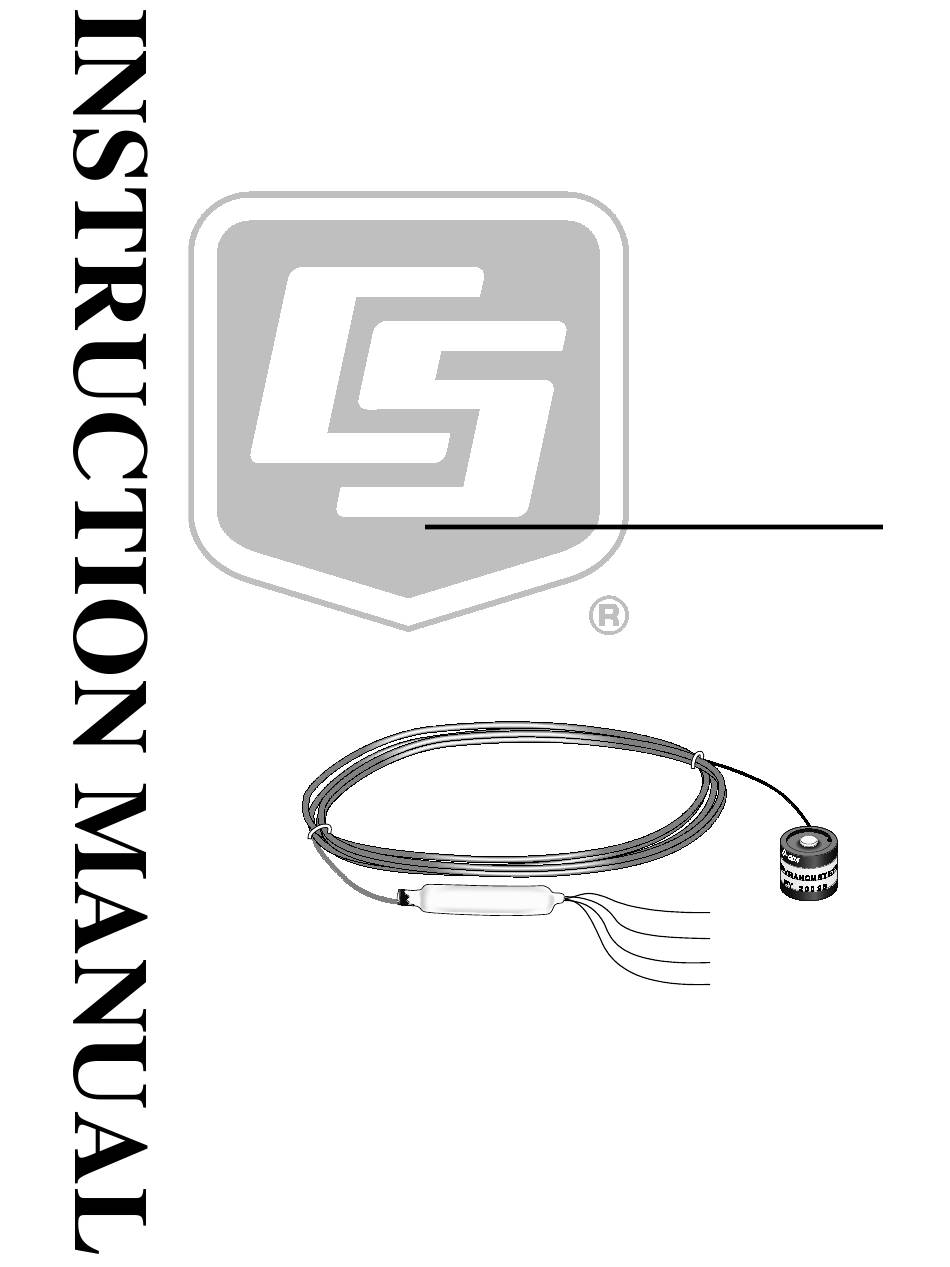

- Page 1 LI200X Pyranometer Revision: 1/15 C o p y r i g h t © 1 9 9 4 - 2 0 1 5 C a m p b e l l S c i e n t i f i c ,...
- Page 3 Limited Warranty “Products manufactured by CSI are warranted by CSI to be free from defects in materials and workmanship under normal use and service for twelve months from the date of shipment unless otherwise specified in the corresponding product manual. (Product manuals are available for review online at www.campbellsci.com.) Products not manufactured by CSI, but that are resold by CSI, are warranted only to the limits extended by the original manufacturer.
- Page 4 SCIENTIFIC, INC., phone (435) 227-9000. After an application engineer determines the nature of the problem, an RMA number will be issued. Please write this number clearly on the outside of the shipping container. Campbell Scientific’s shipping address is: CAMPBELL SCIENTIFIC, INC.
- Page 5 • Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC.
-
Page 7: Table Of Contents
Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction ..............1 2. Cautionary Statements ..........1 3. Initial Inspection ............1 4. - Page 8 Unmodified Pyranometers ............... C-1 C.2.1 Wiring ..................C-1 Input Range ..................C-2 Multiplier ..................C-2 Figures 5-1. LI200X Pyranometer with –PT cable termination option....4 7-4. LI200X Schematic ................10 C-1. Unmodified Pyranometer Wiring Schematic ........C-1 Tables 7-1.
-
Page 9: Introduction
Upon receipt of the LI200X, inspect the packaging and contents for damage. File damage claims with the shipping company. Quickstart Short Cut is an easy way to program your datalogger to measure the LI200X and assign datalogger wiring terminals. The following procedure shows using Short Cut to program the LI200X. - Page 10 LI200X Pyranometer 2. The Short Cut installation should place a shortcut icon on the desktop of your computer. To open Short Cut, click on this icon. 3. When Short Cut opens, select New Program. 4. Select Datalogger Model and Scan Interval (default of 5 seconds is OK...
- Page 11 LI200X Pyranometer 5. Under the Available Sensors and Devices list, select the Sensors | Solar Radiation folder. Select LI200X Pyranometer. Click to move the selection to the Selected device window. The flux density defaults to kW/m^2 and the total flux defaults to MJ/m^2. This can be changed by clicking the Flux Density or Total Flux box and selecting one of the other options.
-
Page 12: Overview
This negative signal is caused by RF noise. Negative values may be set to zero in the datalogger program. The –L portion of the model number indicates that the LI200X has a user- specified cable length. Its cables can terminate in: •... -
Page 13: Specifications
Completion circuit in its cable standardizes calibration, allowing sensors to be interchanged without altering multiplier and offset values • Compatible with Campbell Scientific CRBasic dataloggers: CR6, CR800 series, CR1000, CR3000, CR5000, and CR9000(X). Stability: < ±2% change over a 1 year period Response Time: 10 µs... -
Page 14: Installation
Section 4, Quickstart, for a Short Cut tutorial. Siting The LI200X should be mounted such that no shadows or reflections are cast on it by the tripod/tower or other sensors. The sensor should be mounted with the cable pointing towards the nearest magnetic pole. For example, in the Northern Hemisphere, point the cable toward the North Pole. - Page 15 2. Place the CM225’s U-bolt in the bottom holes and secure the CM225 to the crossarm by tightening the U-bolt nuts. CM225 Stand U-bolt Nuts CM200-Series Crossarm 3. Place the LI200X in the center of the LI2003S base/leveling fixture. Bubble Level Leveling Holes for Screws...
-
Page 16: 015Arm
LI200X Pyranometer 5. Turn the leveling screws as required to bring the bubble of the bubble level within the ring. Leveling Bubble Screws Level 6. Tighten the mounting screws to secure the assembly in its final position. Check that the pyranometer is still correctly leveled and adjust as necessary. - Page 17 LI200X Pyranometer 2. Place the LI200X in the center of the LI2003S base/leveling fixture. Bubble Level Leveling Holes for Screws Mounting Screws LI2003S Base 3. Loosely mount the LI2003S base/leveling fixture on the 015ARM. Do not fully tighten the three mounting screws.
-
Page 18: Wiring
LI200X Pyranometer Wiring A schematic diagram of the LI200X is shown in FIGURE 7-1. Connections to Campbell Scientific dataloggers are given in TABLE 7-1. When Short Cut software is used to create the datalogger program, the sensor should be wired to the channels shown in the wiring diagram created by Short Cut. -
Page 19: Total Solar Radiation
Edlog dataloggers are provided at www.campbellsci.com/old-manuals. –2 –1 Output from the LI200X is 0.2 kW m , which is measured by the datalogger using the VoltDiff CRBasic instruction. CRBasic is included in PC400 and LoggerNet datalogger support software. -
Page 20: Calibration
Calibration LI200X pyranometers output a current that is proportional to the incoming solar radiation. Each LI200X has a unique calibration factor. A variable shunt resistor in the cable converts the current to the voltage measured by the datalogger. Campbell Scientific sets the shunt resistor so that the pyranometer –1... -
Page 21: Importing Short Cut Code
Appendix A. Importing Short Cut Code This tutorial shows: • How to import a Short Cut program into a program editor for additional refinement. • How to import a wiring diagram from Short Cut into the comments of a custom program. A.1 Importing Short Cut Code into a Program Editor Short Cut creates files that can be imported into either CRBasic Editor or Edlog program editor. - Page 22 Appendix A. Importing Short Cut Code mark) begins each line. This character instructs the datalogger compiler to ignore the line when compiling the datalogger code.
-
Page 23: Example Program
Appendix B. Example Program The following program measures the LI200X every 10 seconds, and converts –2 –2 the mV output to Wm and MJ m . The program outputs an hourly average –2 –2 flux (Wm ) and a daily total flux density (MJm ). - Page 24 Appendix B. Example Program 'convert mV to W/m2 SlrW=SlrW*200.0 'Call Data Tables and Store Data CallTable(Table1) CallTable(Table2) NextScan EndProg...
-
Page 25: Li200S Pyranometer
C.2 Unmodified Pyranometers Pyranometers that do not have variable or fixed shunt resistors built into the cable can still be measured by Campbell Scientific dataloggers. This is done by wiring in a 100 Ω shunt resistor directly onto the datalogger wiring panel. -
Page 26: Input Range
Appendix C. LI200S Pyranometer C.3 Input Range The following is an example of how to determine the optimum input range for a given sensor calibration and maximum expected irradiance. This is an example only. Your values will be different. This example uses the calibration provided by LI-COR, Inc. Assume that the –1 sensor calibration is 87 µA kW . - Page 28 • info@campbellsci.com.cn • info@campbellsci.de www.campbellsci.com www.campbellsci.de Campbell Scientific do Brasil Ltda. (CSB) Campbell Scientific Spain, S. L. (CSL Spain) Rua Apinagés, nbr. 2018 ─ Perdizes Avda. Pompeu Fabra 7-9, local 1 CEP: 01258-00 ─ São Paulo ─ SP 08024 Barcelona...
