106/107
Users Manual

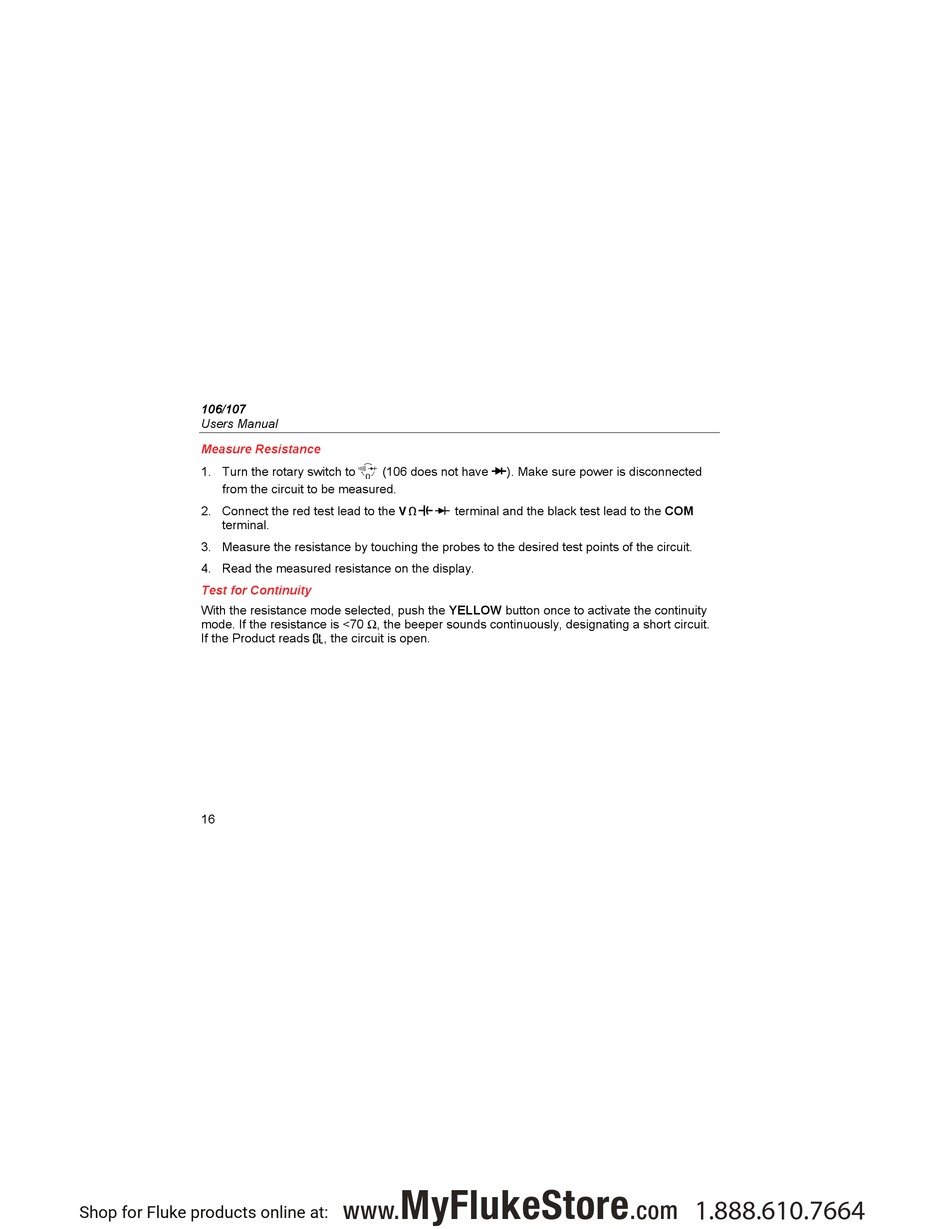

Measure Resistance

1. Turn the rotary switch to
from the circuit to be measured.
2. Connect the red test lead to the  terminal and the black test lead to the COM
terminal.
3. Measure the resistance by touching the probes to the desired test points of the circuit.
4. Read the measured resistance on the display.

Test for Continuity

With the resistance mode selected, push the YELLOW button once to activate the continuity
mode. If the resistance is <70 Ω, the beeper sounds continuously, designating a short circuit.
If the Product reads  , the circuit is open.
16
Shop for Fluke products online at:

(106 does not have ). Make sure power is disconnected
