81281_1.book Page 1 Monday, April 30, 2007 3:31 PM
ST70 Instruments Operating Guide
Welcome

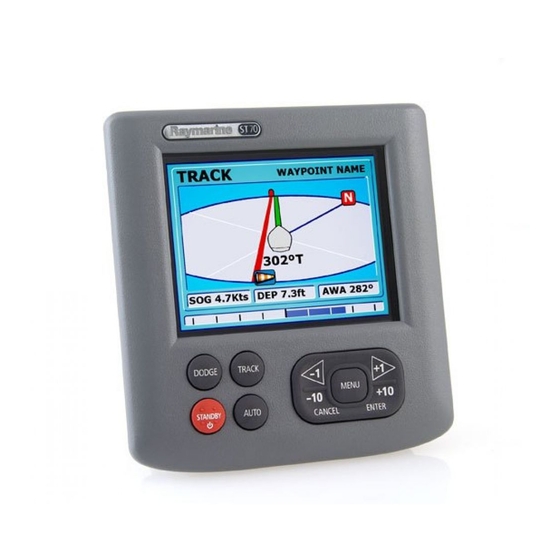

Congratulations on having chosen a Raymarine ST70 instrument.
This gives you easy access to the important information you need
to make your boating experience both safe and enjoyable.
ST70 provides an adaptable, daylight-viewable color display that
you can customize to clearly show exactly what you want.
No more, no less.
This Operating Guide
This Operating Guide tells you how to use an ST70 instrument, and
describes how to switch on the instrument, set it up and display the data you want, to best suit
your style of operation.
This guide assumes that the instrument has been prepared for use in accordance with the
Commissioning Procedures in the ST70 Instrument User Reference Manual.
ST70 products include instruments and pilot controllers. This guide gives user instructions for the instrument only.
Note:
Information on using the ST70 Pilot Controller is given in separate documentation accompanying the controller.
Contents
Getting started
Setting the screen brightness........................................................................................ Card 2
Setting your preferences
Choosing the screen colors........................................................................................... Card 3
Choosing data units....................................................................................................... Card 4
Organizing your pages
Setting page rollover...................................................................................................... Card 6
Changing the information on a page ............................................................................. Card 7
Changing the layout of a page ..................................................................................... Card 8
Resetting data................................................................................................................ Card 9
Clocks
Setting the correct local time ....................................................................................... Card 10
Using the alarm clock .................................................................................................. Card 11
Alarm events................................................................................................................ Card 12
Setting alarms.............................................................................................................. Card 13
General information
Data list ....................................................................................................................... Card 14
Raymarine UK Ltd, Anchorage Park, Portsmouth, Hampshire PO3 5TD, United Kingdom
Tel: +44 (0) 23 9269 3611, Fax:+44 (0) 23 9269 4642
Raymarine Inc ,21 Manchester Street, Merrimack, New Hampshire 03054, USA
Tel: +1 603.881.5200, Fax: +1 603.864.4756
Part Number: 81281-1
Date: June 2007
CANCEL
ENTER
MENU
www.raymarine.com
Advertisement
Table of Contents
Related Manuals for Raymarine ST70
Summary of Contents for Raymarine ST70
-
Page 1: Table Of Contents
This guide assumes that the instrument has been prepared for use in accordance with the Commissioning Procedures in the ST70 Instrument User Reference Manual. ST70 products include instruments and pilot controllers. This guide gives user instructions for the instrument only. Note: Information on using the ST70 Pilot Controller is given in separate documentation accompanying the controller. - Page 2 Information The information in this guide is valid for ST70 Instruments and systems which have been installed and commissioned in accordance with the correct Raymarine procedures. Relevant documents are: • ST70 Instrument User Reference Manual (contains commissioning, maintenance & troubleshooting procedures).
-
Page 3: Switch On/Off & Introduction
Time 11:23 when the power was last switched off. Note: If power to a system to which ST70 instruments is connected is switched centrally CANCEL ENTER (e.g.from a central circuit breaker), the on/off condition of each individual instrument when MENU system power is applied reverts to what it was when the system power was last switched off. - Page 4 • The instrument power down is complete. Resolving problems In the unlikely event that you experience problems using your ST70 instrument, refer to the troubleshooting procedures in the ST70 Instrument User Reference Manual. If you need further assistance, please visit the Customer Support area of our web site at: www.raymarine.com...
-
Page 5: Setting The Screen Brightness
81281_1.book Page 5 Monday, April 30, 2007 3:31 PM ST70 instrument - getting started Setting the screen brightness Card Use these instructions to set the screen brightness to the level you want. Quick Set Up To quickly change the screen brightness:... - Page 6 81281_1.book Page 6 Monday, April 30, 2007 3:31 PM...
-
Page 7: Choosing The Screen Colors
81281_1.book Page 7 Monday, April 30, 2007 3:31 PM ST70 instrument - setting your preferences Choosing the screen colors Card Use these instructions to set the screen colors for optimum viewing. You can choose from three daytime and three night-time settings... - Page 8 81281_1.book Page 8 Monday, April 30, 2007 3:31 PM...
-
Page 9: Choosing Data Units
ST70 instrument - setting your preferences Choosing data units Card When an ST70 instrument is connected to SeaTalk or SeaTalk , you can use the instrument to select the units in which data is displayed throughout the system. A range of imperial, metric and nautical units is available. - Page 10 81281_1.book Page 10 Monday, April 30, 2007 3:31 PM ST70 instrument - setting your preferences Choosing data units Card continued 6. Set the units < > to scroll to the required units. Wind Speed Units ENTER Press to save your setting and return to the Units summary page.
-
Page 11: Switching Pages Off & On
81281_1.book Page 13 Monday, April 30, 2007 3:31 PM ST70 instrument - organizing your pages Switching pages off & on Card If you need to quickly access only certain pages, you can switch off the pages you do not need, and thus reduce the time it takes to access the required pages. This is a particularly useful feature if you are using the automatic rollover to select pages (see Card 6). - Page 12 81281_1.book Page 14 Monday, April 30, 2007 3:31 PM ST70 instrument - organizing your pages Switching pages off & on Card continued Returning to normal operation To return to your operational page: CANCEL 1. Press to select the Page Layout menu.
-
Page 13: Setting Page Rollover
81281_1.book Page 15 Monday, April 30, 2007 3:31 PM ST70 instrument - organizing your pages Setting page rollover Card You can set a rollover value so that operational pages are automatically displayed in sequence, one after the other. Use the procedure on this card to: •... - Page 14 81281_1.book Page 16 Monday, April 30, 2007 3:31 PM ST70 instrument - organizing your pages Choosing data units Card continued...
-
Page 15: Changing The Information On A Page
81281_1.book Page 21 Monday, April 30, 2007 3:31 PM ST70 instrument - organizing your pages Changing the information on a page Card You can change the information displayed in any frame on any page. You can either: • Retain the basic page layout, but change the information in individual frames on a page, as described on this card, or •... - Page 16 Page 1 Frame A item that you want (Depth shown here). If you don’t know which group you need, select ALL. ST70 supports a wide range of data. Refer to Card 14 for a full data list. Note: ENTER Press to go to the data select menu.
-
Page 17: Changing The Layout Of A Page
81281_1.book Page 23 Monday, April 30, 2007 3:31 PM ST70 instrument - organizing your pages Changing the layout of a page Card Rebuilding pages If you want to make changes to the way a page is laid out, use the procedure on this card to rebuild the page with a different layout and different data. - Page 18 Page 1 Frame A want (Depth shown here). If you don’t know which group you need, select ALL. ST70 supports a wide range of data. Refer to Card 14 for a full data list. Note: ENTER Press to go to the data select menu.
-
Page 19: Resetting Data
81281_1.book Page 25 Monday, April 30, 2007 3:31 PM ST70 instrument - organizing your pages Resetting data Card Resettable data The maximum, minimum and average running values of some data are accrued in the instrument. You can reset these values using the procedure on this card. - Page 20 81281_1.book Page 26 Monday, April 30, 2007 3:31 PM...
-
Page 21: Setting The Correct Local Time
Date and time information is available only if your ST70 instrument is receiving GPS data. Note: If your ST70 instrument is receiving GPS data, you can use the procedure on this card to set the correct local time as your system time. - Page 22 81281_1.book Page 28 Monday, April 30, 2007 3:31 PM ST70 instrument - clocks Setting the correct local time Card continued 5. Set time offset ENTER Press to display the Set time offset setup box. Set time offset The time offset is the difference in time between GMT (time -1.0...
-
Page 23: Using The Alarm Clock
81281_1.book Page 29 Monday, April 30, 2007 3:31 PM ST70 instrument - clocks Using the alarm clock Card This card tells you how to set and use the alarm clock. Setting alarm clock 1. Select Display Settings MENU < >... - Page 24 81281_1.book Page 30 Monday, April 30, 2007 3:31 PM ST70 instrument - clocks Using the alarm clock Card continued Returning to operational page To return to your operational page: CANCEL 1. Press to select the Display Settings menu. CANCEL 2. Press to select the Main Menu.
-
Page 25: Alarms
3 and 4 on,Card 13, to set the parameters you want for the active alarm. Alarm events The following alarm functions are supported by ST70, although they may not all be applicable to your system. Alarm... - Page 26 81281_1.book Page 26 Monday, April 30, 2007 3:31 PM...
-
Page 27: Setting Alarms
81281_1.book Page 27 Monday, April 30, 2007 3:31 PM ST70 instrument - alarms Setting alarms Card For each alarm, you can: • Disable or enable the alarm. • Set the level at which the alarm operates. Setting up alarms 1. Enter alarm setup MENU <... - Page 28 81281_1.book Page 28 Monday, April 30, 2007 3:31 PM...
-
Page 29: Data List
ST70 instrument - general information Data list Card Data list This card lists the data supported by ST70. Please note that these data are dependent on the configuration of individual systems, so will be not all be available on all systems. Data Group... - Page 30 81281_1.book Page 30 Monday, April 30, 2007 3:31 PM ST70 instrument - general information Data list Card continued Data Group Data Group Humidity ENVIRONMENTAL Serial number DIAGNOSTIC Illumination SYSTEM ENVIRONMENTAL Software version DIAGNOSTIC Local date TIME Speed over ground Local time...
