By clicking on "+" or "Modify", it is possible to add/modify a new variable for the selected ID. The window "Add/Modify EnOcean variable"
appears (Fig. 6).
The means of the EEP fields are:
In the field "Rorg" the type of EnOcean telegram is defined;
In the field "Func" the type of EnOcean instance is defined;
In the field "Type" the type of event is defined.
The means of the Variable fields are:
In the field "Case" the format of the EnOcean telegram is defined;
In the field "Variable" the variable to read/write is defined;
In the field "Position" the starting byte of the internal array where
mapping/taking the variable is defined;
In the field "Bit Start" the starting bit of the defined Position where
mapping/taking the variable is defined.
ADFweb.com S.r.l.
User Manual EnOcean / BACnet Slave
Document code: MN67C56_ENG Revision 1.000

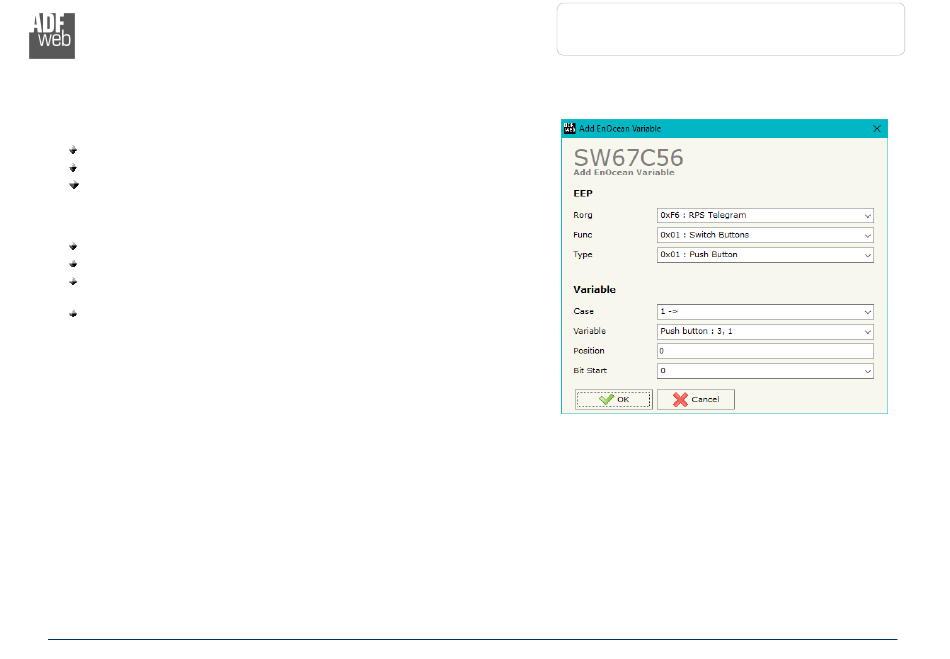

Figure 6: "Add/Modify EnOcean variable"
