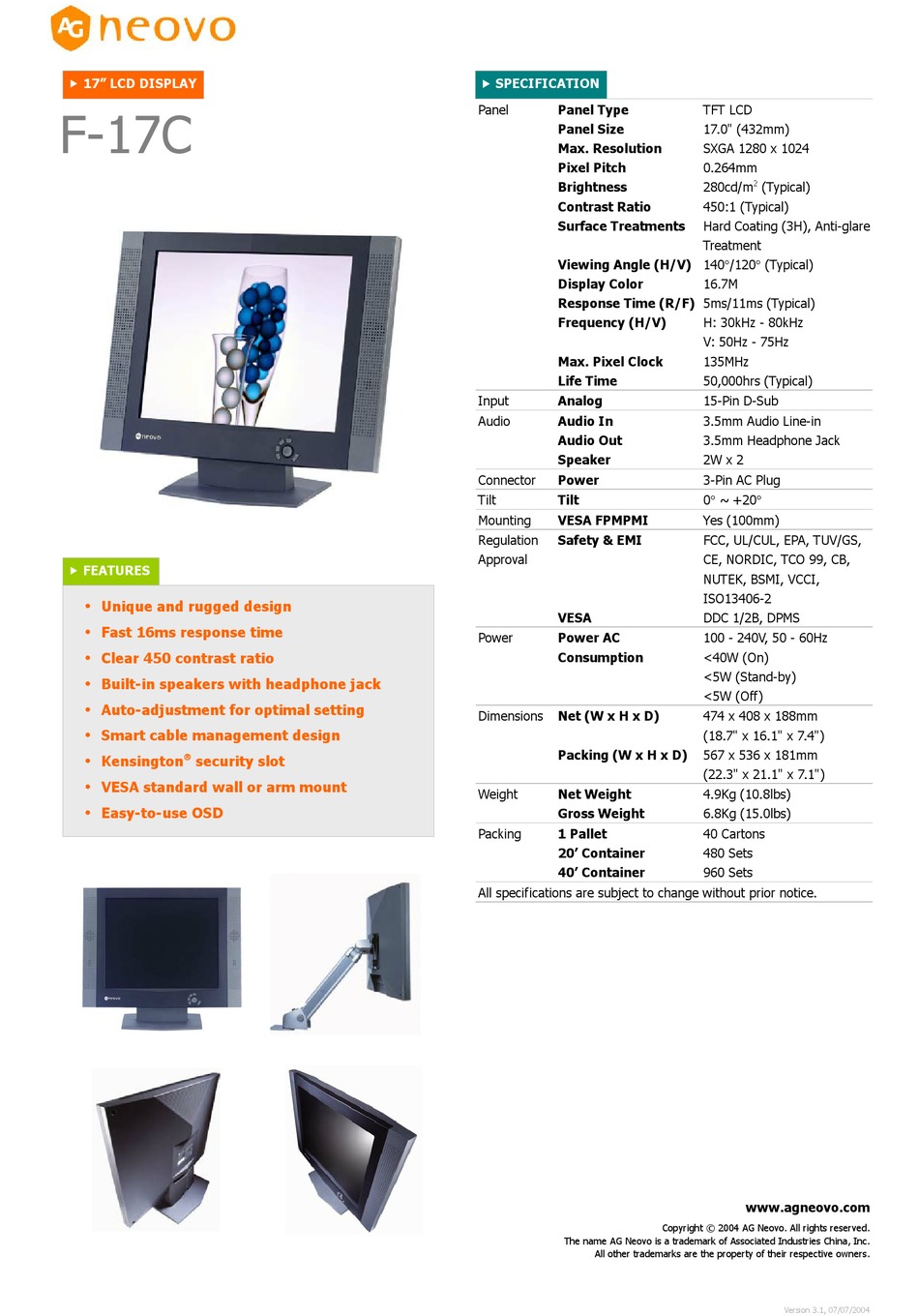

AG Neovo F-17C Specifications

17" LCD DISPLAY
F-17C
FEATURES
Unique and rugged design
Fast 16ms response time
Clear 450 contrast ratio
Built-in speakers with headphone jack
Auto-adjustment for optimal setting
Smart cable management design

Kensington security slot
VESA standard wall or arm mount
Easy-to-use OSD
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V) 140°/120° (Typical)
Display Color
Response Time (R/F) 5ms/11ms (Typical)
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Analog
Audio Audio In
Audio Out
Speaker
Connector Power
Tilt Tilt
Mounting VESA FPMPMI
Regulation Safety & EMI
Approval
VESA
Power Power AC
Consumption
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice.
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
17.0" (432mm)
SXGA 1280 x 1024
0.264mm
280cd/m 2 (Typical)
450:1 (Typical)
Hard Coating (3H), Anti-glare
Treatment
16.7M
H: 30kHz - 80kHz
V: 50Hz - 75Hz
135MHz
50,000hrs (Typical)
15-Pin D-Sub
3.5mm Audio Line-in
3.5mm Headphone Jack
2W x 2
3-Pin AC Plug
0° ~ +20°
Yes (100mm)
FCC, UL/CUL, EPA, TUV/GS,
CE, NORDIC, TCO 99, CB,
NUTEK, BSMI, VCCI,
ISO13406-2
DDC 1/2B, DPMS
100 - 240V, 50 - 60Hz
<40W (On)
<5W (Stand-by)
<5W (Off)
474 x 408 x 188mm
(18.7" x 16.1" x 7.4")
567 x 536 x 181mm
(22.3" x 21.1" x 7.1")
4.9Kg (10.8lbs)
6.8Kg (15.0lbs)
40 Cartons
480 Sets
960 Sets
www.agneovo.com
Copyright © 2004 AG Neovo. All rights reserved.
Version 3.1, 07/07/2004
