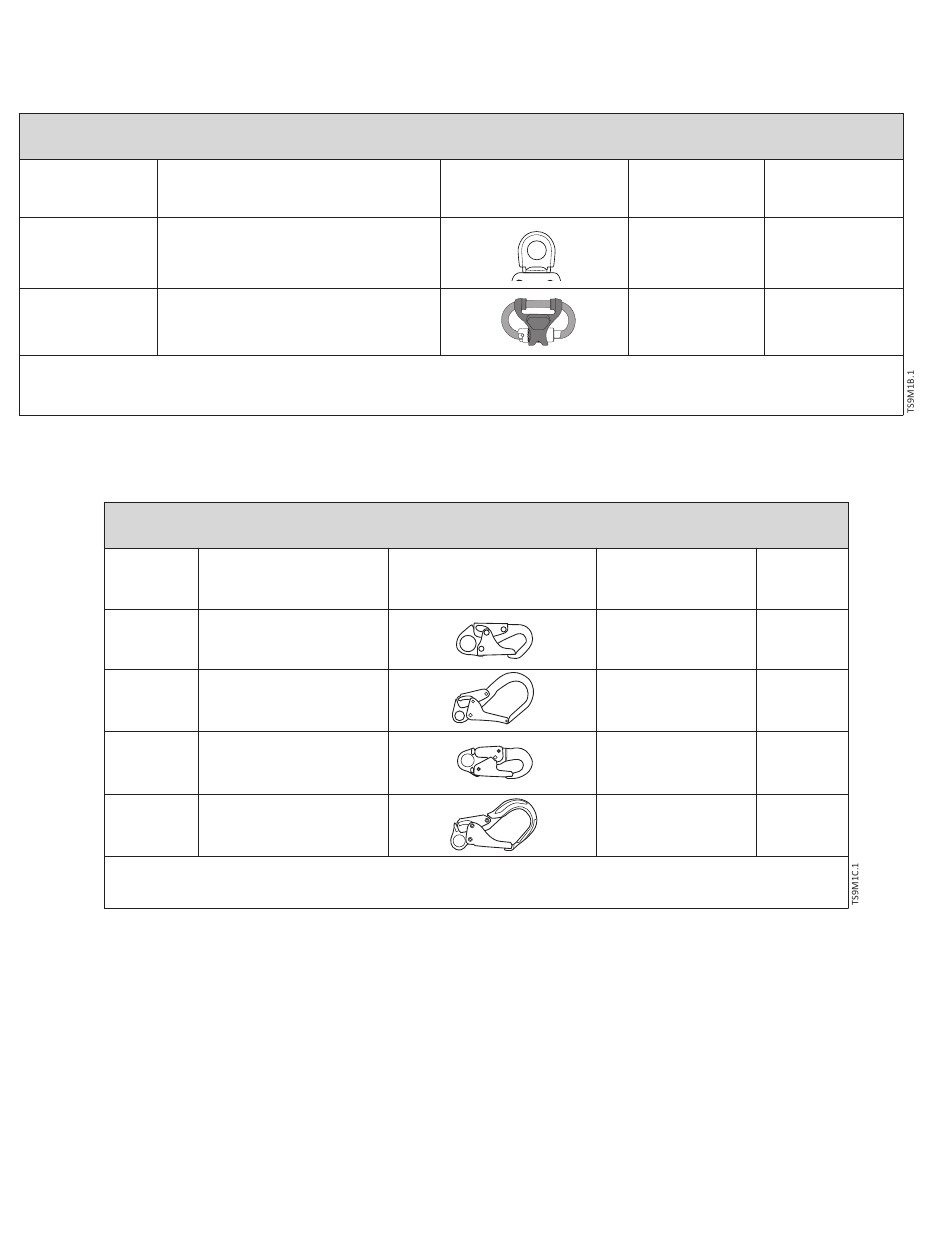

Table 1B: Specifications for Housing Swivel-Eye Connectors
Housing Swivel Eye Connector
Part # Reference
A
Integral Housing Swivel Eye only
Triple-lock Carabiner with Alignment Clip
B
Above Carabiner has a 5,000lb Minimum Tensile Strength and 3,600lb Gate Strength to comply with ANSI Z359.12
Part #
Reference
1
3
4
5
All Anchorage Connectors shown above have 5,000lb Minimum Tensile Strength and 3,600lb minimum
Carabiner and Clip used to join two Single Leg SRD's into one Twin Leg unit.
Table 1C: Specifications for SRD Leg-end Connectors
Leg-End Connector
Snap Hook
Rebar Hook
Snap Hook
Rebar Hook
Gate Strength to comply with ANSI Z359.12
Connector
Connector
17
Material
Gate Opening
Eye:
Aluminum
.67"
.55"
Steel
Gate
Material
Opening
Steel
.85"
2.5"
Steel
Aluminum
.8"
2.5"
Aluminum
APPENDIX A
092915
