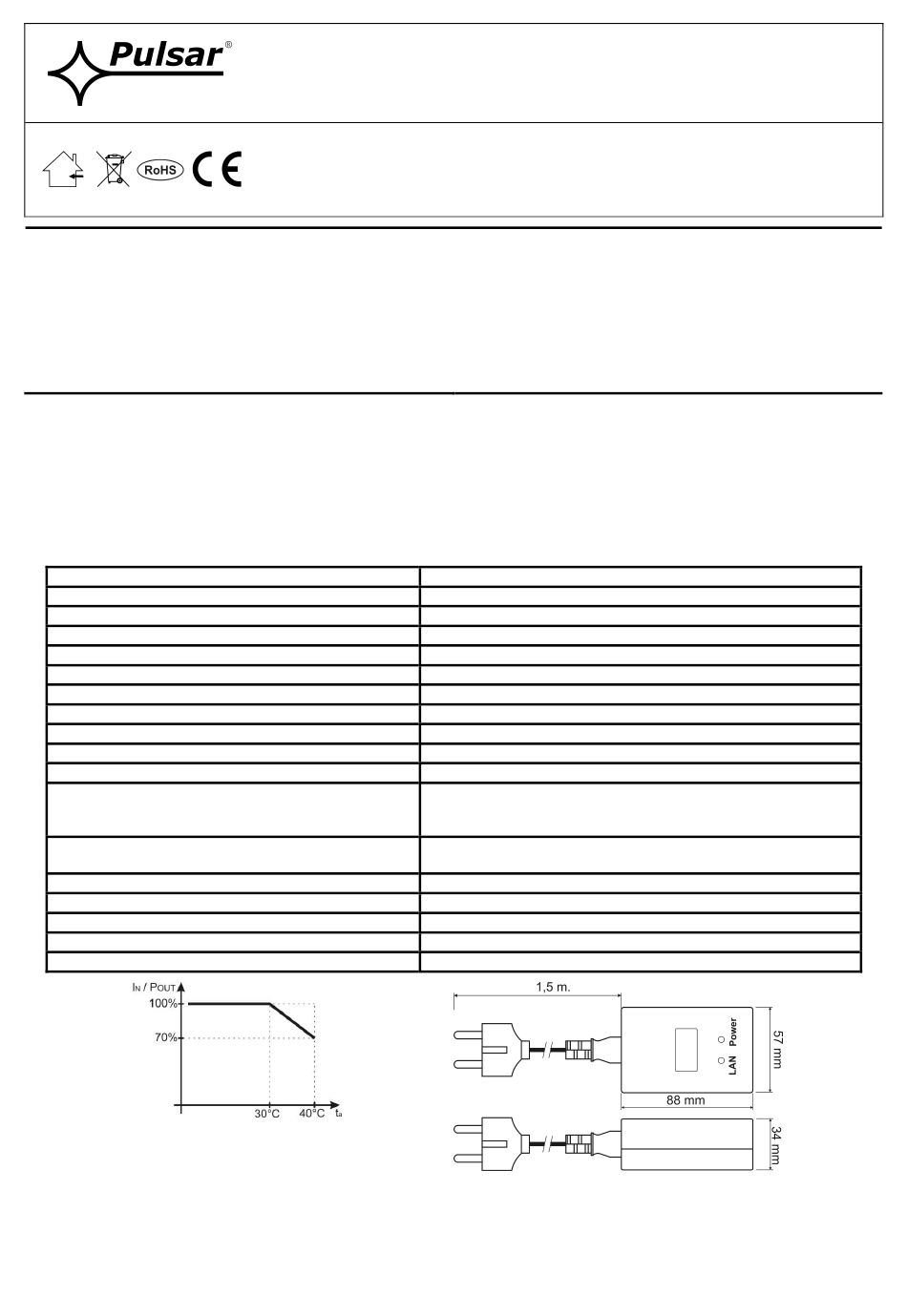

Pulsar PSP24010 Quick Start Manual

•
power output 24VDC/1A
•
universal input voltage range 90÷264VAC
•
high efficiency 75%
•
Data and Power carried over one Ethernet
Cable

1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply any LAN devices through Ethernet Cable, which require
stabilized voltage of 24 V DC. The unit provide power through 4/5pins(+) and 7/8pins(-) in Ethernet cable that
according to the Ethernet standard are not used to transmit data (data communication is made using pairs: 1/2 and
3/6). The Power supply can't be used in Gigabit Ethernet! The unit is protected against short-circuit and overload.

1.2. Technical parameters.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
Optical signalization
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Length of detachable AC cable
Storage temperature
Wykres 1 Relation between output current and ambient
temperature.
2. Installation.
2.1. Requirements.
Features of the power supply unit:
<30°C
=40°C
PSP24010

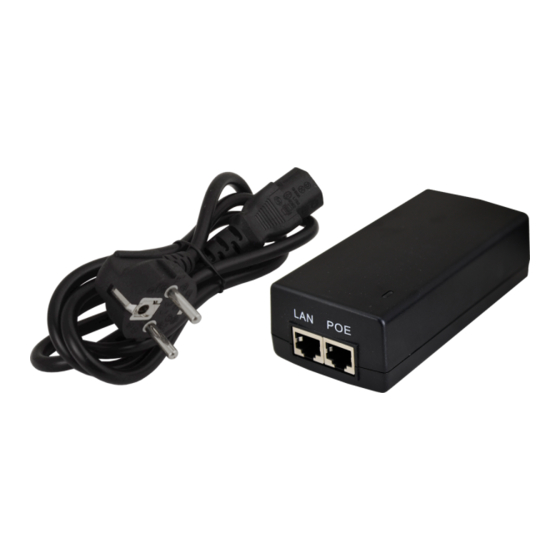

PSP 24V/1A PoE desktop power supply
Edition: 2 from 16.09.2013
Supercedes the edition: 1 from 28.12.2011
•
LED optical signalization
•
protections:
• warranty – 2 year from the production date
90 ÷ 264 V AC 50Hz
0,25A@230VAC max.
24W max.
75%
24V DC
1 A
1A - refer to graph 1.
0,7 A - refer to graph 1.
100mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
Power – presence of DC voltage, changing color over approx.
80% of nominal output current
LAN – presence of LAN network
o
temperature 0 C÷40
relative humidity 20%...90%, without condensation
88 x 57 x 34 [mm]
0,13kg / 0,16kg
II (second)
1,5m + mains plug
-20ºC...+60ºC
Fig.1. Dimension of power supply.
1
•
SCP short-circuit protection
•
overvoltage protection (AC input)
•
overload (OLP)
o
C
EN
