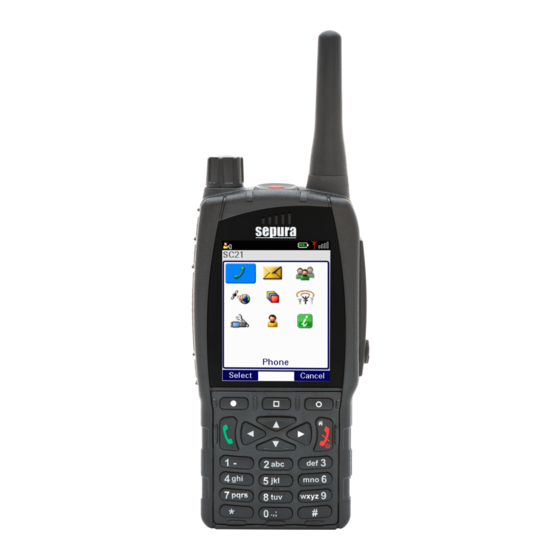

Hand-portable radio
Hide thumbs Also See for SC21 Series:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
a Hytera company
Quick Reference Guide
SC21 series hand-portable radio

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC21 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sepura SC21 Series

Summary of Contents for Sepura SC21 Series

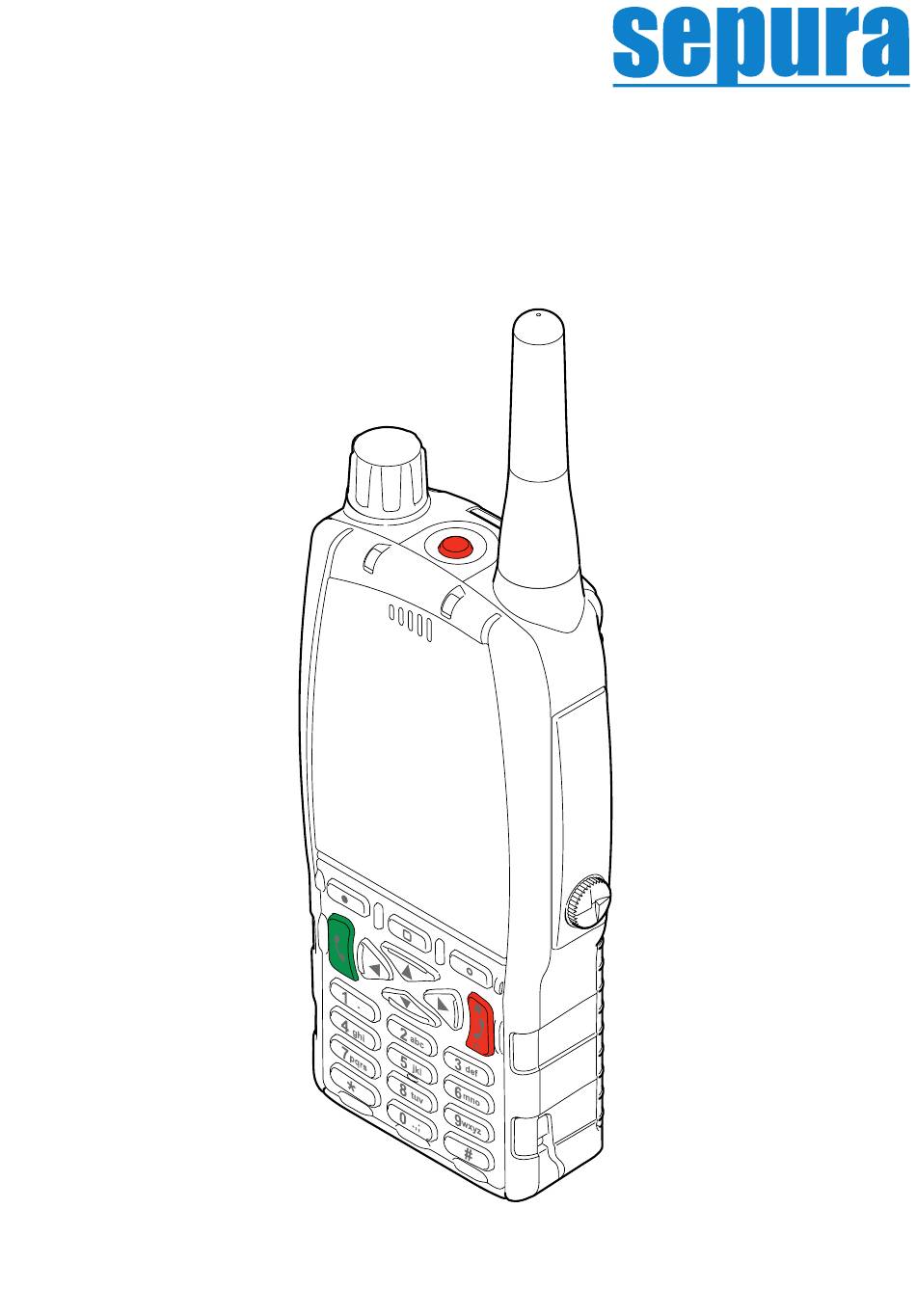

  • Page 1 Hytera company Quick Reference Guide SC21 series hand-portable radio...
  • Page 2 Emergency button Antenna Navigation keys Rugged Accessory Connector (sRAC) Green key (Select/Send) Centre Context key (Groups, Left Context key Status, Profiles) Colour display with backlight Right Context key Earpiece for full-duplex calls. Red key (Cancel/Home) Microphone for half-duplex Alphanumeric keypad with calls backlight and Loudspeaker Blue LED...
  • Page 3 17 Side buttons A/B (soft keys) External Antenna Connector 18 PTT button RFID tag 19 Side button C (soft key) Accessory attachment 20 Digital Accessory Connector mounting points (sDAC) Loudspeaker used for half- 21 Battery duplex calls...
  • Page 4 Power on Press and hold (2 seconds) the Red key. Power off From the Home screen, press and hold (2 seconds) the key, then follow the instructions to power off. Home screen The Home screen displays when the radio powers on and when it is idle.
  • Page 5 Alarm Call WARNING! Do not hold the radio close to your ear. Press and hold (2 seconds) the Emergency button. Press the PTT button and speak into the top microphone. If your radio is customised for ‘live microphone’ you can speak with out holding the PTT button for a period of time.
  • Page 6 Change the From the Home screen, press the Groups talkgroup context key. The Talkgroup Selection box appears showing the current selected talkgroup and folder. Directional arrows displayed under the talkgroup name indicate that there are more talkgroups available in the current folder.
  • Page 7 Send a Status From the Home screen, press the Groups message context key 2 times. Use the navigation keys to scroll through the status messages. To send the message, press the Send context key, select the Send to Default option (or choose another destination such as your talkgroup, a contact in your phone book or dial the number) and press the Green key.

  • Page 8: Led Indicators

    Outgoing DMO call in progress Notification icons Signal Strength (more bars indicate stronger Missed incoming call signal) Missed incoming message Black icon indicates good radio coverage. Red icon Transmit Inhibit indicates no signal. SPR-DOC-03312 Issue 2 ©Sepura plc. 2018...
