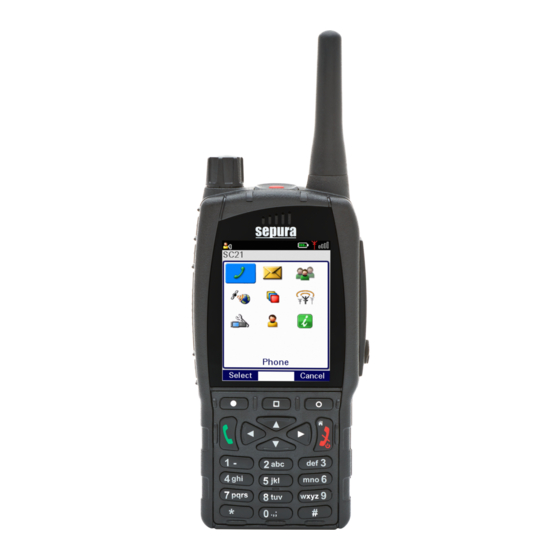

Sepura SC21 Series Quick Reference Manual
Hand-portable radio
Hide thumbs
Also See for SC21 Series:
- User manual (133 pages) ,
- Quick start manual (57 pages) ,
- Service manual (41 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sepura SC21 Series
Summary of Contents for Sepura SC21 Series

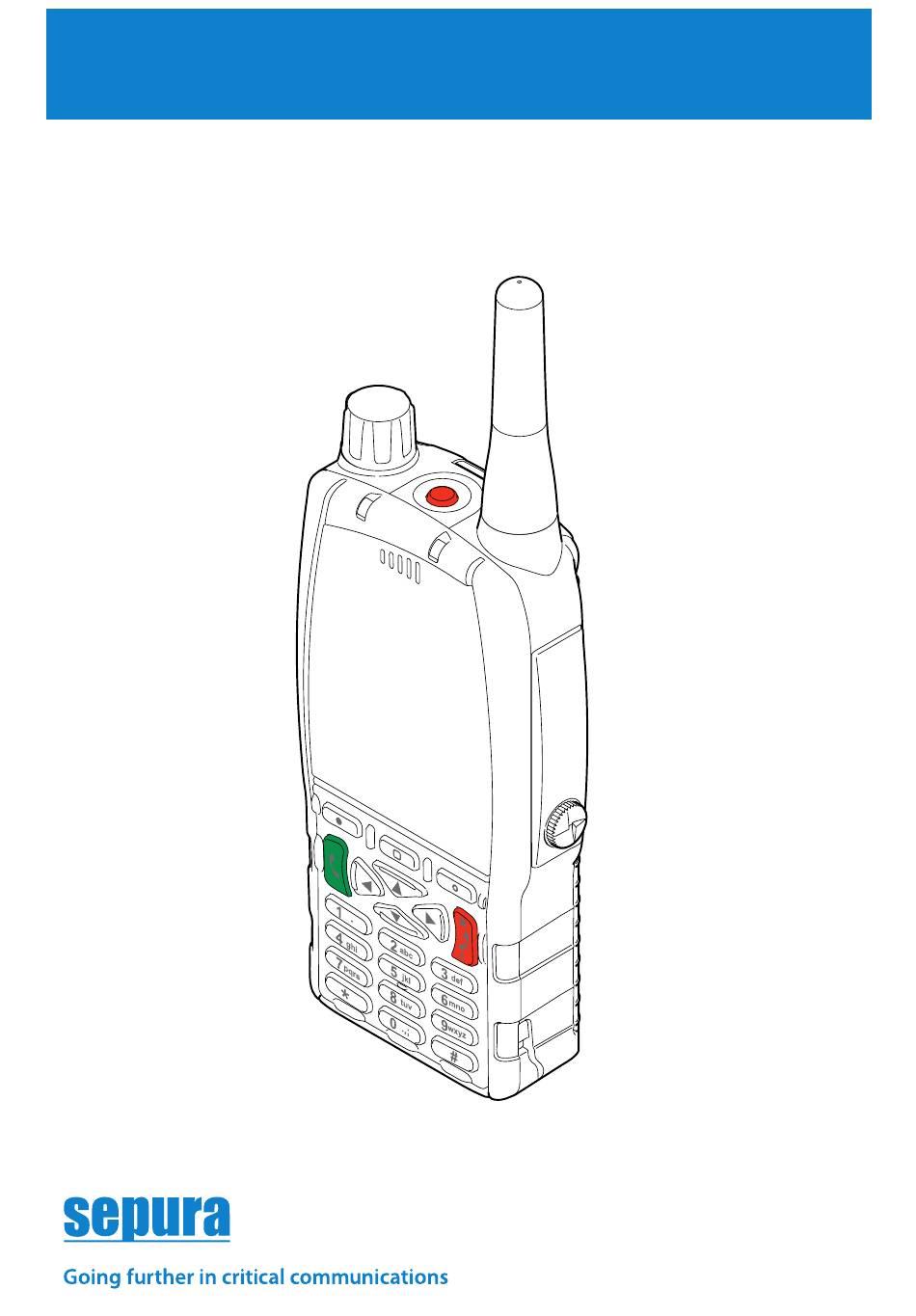

- Page 1 Quick Reference Guide SC21 series hand-portable radio...
- Page 2 Emergency button. Antenna. Rugged Accessory Connector Navigation keys. (sRAC). Remove the cover Select/Send key. to fit an accessory. Refit the Left Context key. cover when an accessory is not in use. Colour display with backlight. Centre Context key (Groups, Status, Profiles). Earpiece and Microphone.
- Page 3 Side buttons A/B (soft keys). External Antenna Connector. PTT button. RFID tag. Side button C (soft key). Mounting clip attachment Digital Accessory Connector points. (sDAC). Loudspeaker. Battery. Radio user label area. Battery user label area.
- Page 4 Power on Press and hold (2 seconds) the Cancel/Home key. Power off From the Home screen, press and hold (2 seconds) the Cancel/Home key, then follow the instructions to power off. Home screen The Home screen displays when the radio powers on and when it is idle.
- Page 5 Your radio has a powerful loudspeaker. Always check the type of incoming call before placing the radio close to your ear. Alarm Calls Press and hold the Emergency button (for 2 seconds). Press the PTT button and speak into the top microphone.
- Page 6 Change the From the Home screen, press the Groups context talkgroup key. The Talkgroup Selection box appears showing the current selected talkgroup and folder. Directional arrows displayed under the talkgroup name indicate that there are more talkgroups available in the current folder. Rotate the Navi- knob to scroll through the talkgroups.
- Page 7 Send a Status From the Home screen, press the Groups context message key 2 times. Use the navigation keys to scroll through the status messages. To send the message, press the Send context key, select the Send to Default option (or choose another destination such as your talkgroup, a contact in your phone book or dial the number) and press the Select context key.
-
Page 8: Led Indicators
Notification icons Signal Strength (more bars indicate stronger Missed incoming call signal) Missed incoming Black icon indicates good message radio coverage. Red icon Transmit Inhibit indicates no signal. Sepura plc. 9000 Cambridge Research Park, Waterbeach, Cambridge CB25 9TL Tel.+44 (0)1223 876000...
