Wavetronix SmartSensor Quick Reference Manual page 4

10

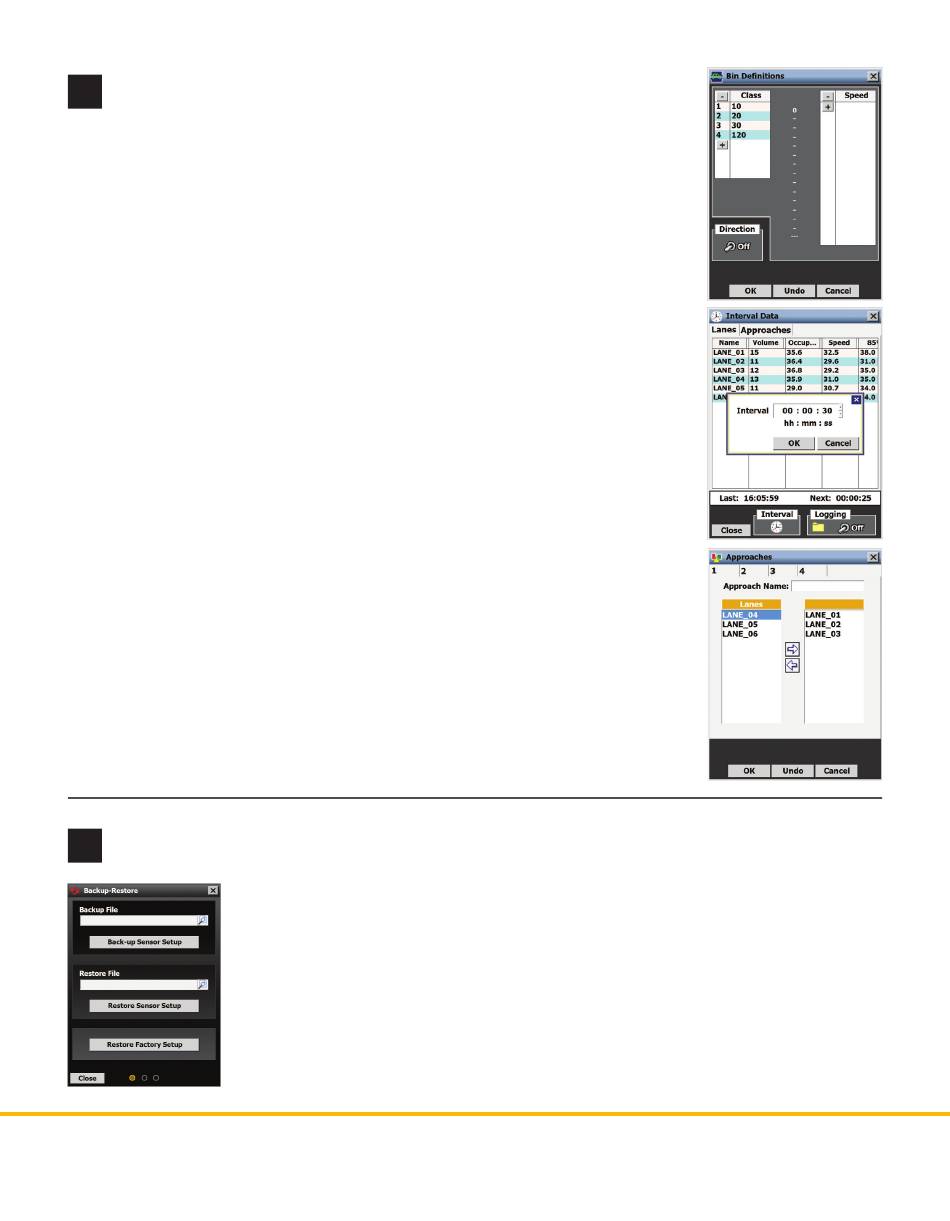

Set up data collection
The Data Setup & Collection link on the main screen lets you set up data collec-
tion. For a basic HD installation, you will need to configure the following settings.
Definitions
Select Data Setup & Collection from the main screen, then click on Bin Defini-
tions. In this section you will define classifications of vehicles based on certain
criteria; once bins are set, data can be collected for these groups of vehicles.
˽ For class, use the - / + buttons under the class section to add or remove bins.
For speed, use the - / + buttons under the speed section to add or remove bins.
˽
For any given bin, click on it and type or use the - / + buttons to change the
˽
definitions.
Click OK when you're done.
Interval Data
Click Interval Data on the Data Collection screen to change the interval (a defined
period of time in which data is collected about all vehicles that pass the sensor).
Once the screen is open, click the clock icon and change the time, then click OK.
Approaches
Click Approaches on the Data Collection screen to configure your approches (lane
groupings used in data collection). To create approaches:
1
Select the lane for the approach from the Lanes list on the left, then click the
right-facing arrow to assign them to the approach.
2
Repeat step 1 for all lanes you want in the approach.
3
Enter a name for your approach in the text field at the top of the window.
4
Click OK to save.
11
Create a backup
After configuring the sensor, you should always make a backup of the sensor settings.
1
2
3
To use a backup file, use the Restore Sensor Setup option on the same screen.
© 2015 Wavetronix LLC. All rights reserved. Protected by US Pat. Nos. 6,556,916; 6,693,557; 7,426,450; 7,427,930; 7,573,400; 7,889,097; 7,889,098; 7,924,170; 7,991,542; 8,248,272; 8,665,113;
and Cdn. Pat. Nos. 2,461,411; 2,434,756; 2,512,689; and Euro. Pat. Nos. 1435036; 1438702; 1611458. Other US and international patents pending. Wavetronix, SmartSensor, Click, Com-
mand and all associated logos are trademarks of Wavetronix LLC. All other product or brand names as they appear are trademarks or registered trademarks of their respective holders.
Product specifications are subject to change without notice. This material is provided for informational purposes only; Wavetronix assumes no liability related to its use.
WX-500-0315
Select Tools from the main menu, then click Backup/Restore.
Under the Back-up File heading, click on the magnifying glass. In the window
that opens, navigate to where you want the backup file to be stored. Give the
backup file a name, and then hit OK.
Click Back-up Sensor Setup.
