3Com NBX V3000 Upgrade Information page 2

8 Attach the power cord and then turn on the power switch. You can verify a successful boot operation by
viewing the status lights on the front of the NBX V3000.
9 To verify that the system recognizes the added memory, log into the NBX NetSet utility as administrator,
click System Configuration, and view the Free Memory value. The value will be greater than 500,000,000
bytes.

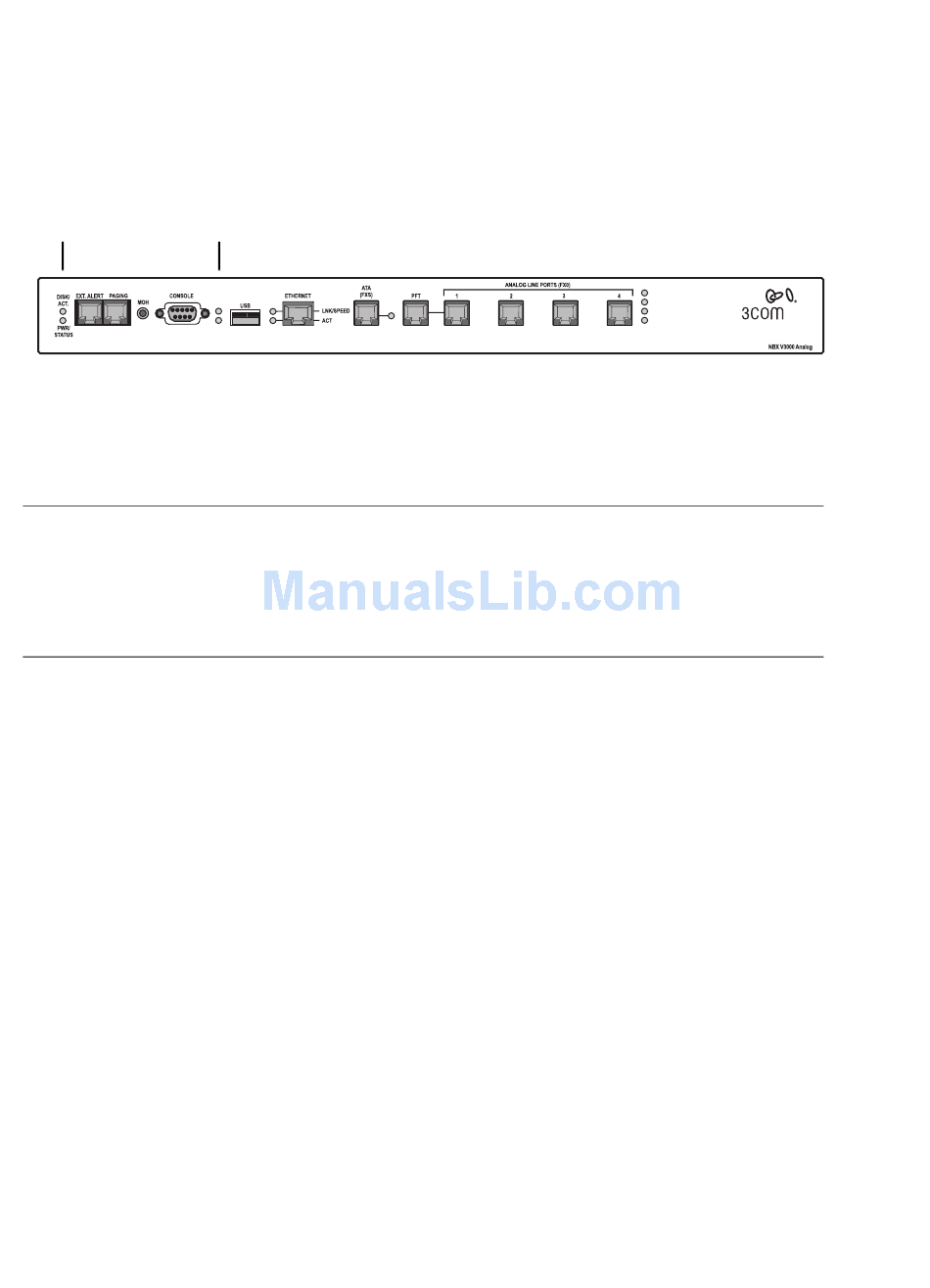

NBX V3000 System Status LEDs
1
1 DISK ACT. — Disk activity. Flashing indicates disk activity.
PWR./STATUS:
Blinking green — System is booting.
■
Blinking red — System boot has failed.
■
Green — System is operational.
■
2 Status lights S1 (bottom) and S2 (top) show boot status:
S2 flashing green — A system boot sequence has started.
■
S2 green — The disk drive initialization process is complete.
■
S1 and S2 flash alternately — A file system check (FSCK) is running due to a previous improper system
■
shutdown. (Do not turn off the system until you have run the system shutdown operation through the
NBX NetSet utility (Operations > Reboot/Shutdown).
