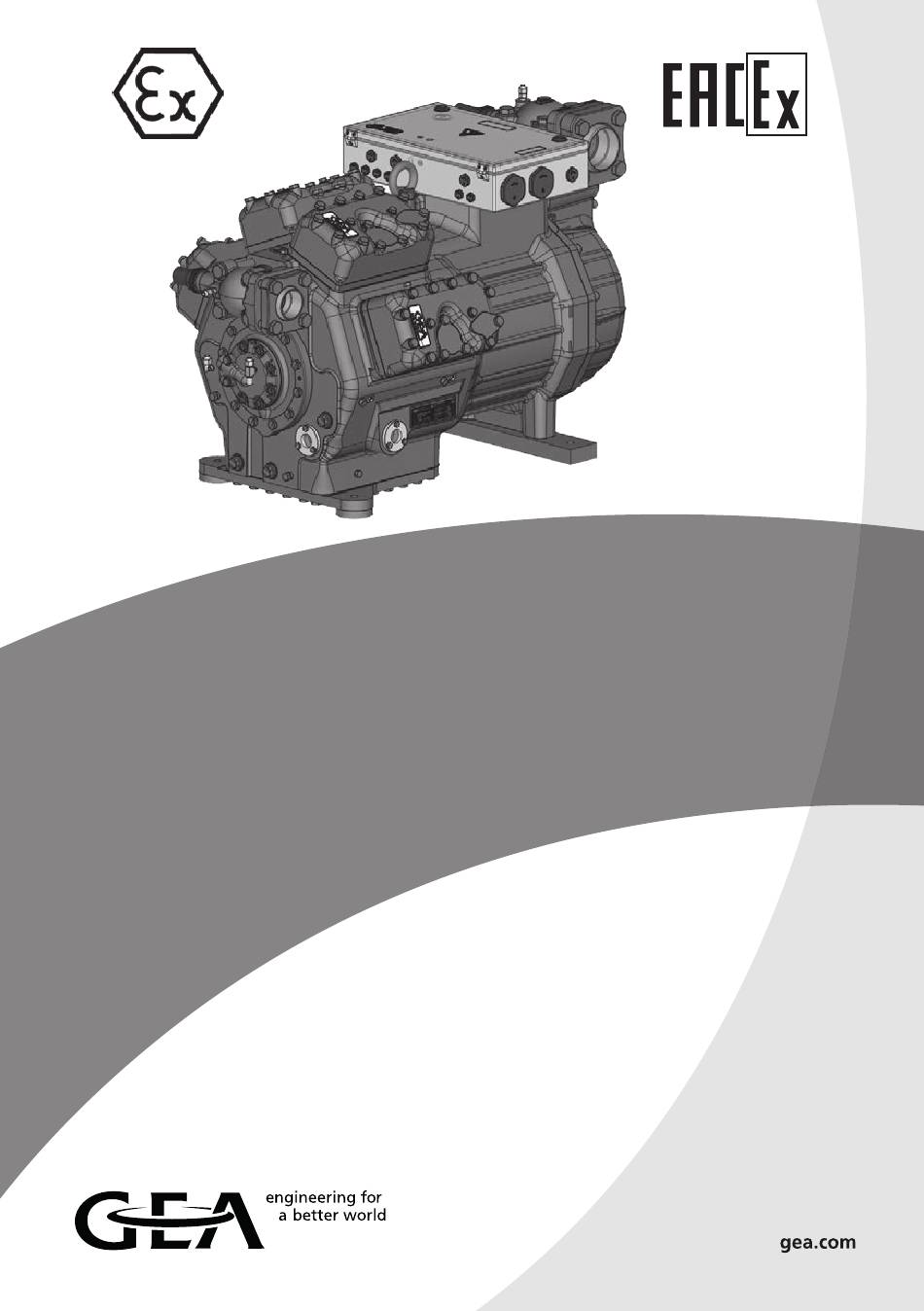

GEA Bock EX-HG88e
Assembly instructions
96403-08.2019-Gb
Translation of the original instructions
EX-HG88e/2400-4 3G
EX-HG88e/2735-4 3G
EX-HG88e/3235-4 3G
EX-HG88e/2400-4 S 3G
EX-HG88e/2735-4 S 3G
EX-HG88e/3235-4 S 3G
EX-HGX88e/2400-4 3G
EX-HGX88e/2735-4 3G
EX-HGX88e/3235-4 3G
EX-HGX88e/2400-4 S 3G
EX-HGX88e/2735-4 S 3G
EX-HGX88e/3235-4 S 3G
Device category 3 G
acc. to directive 2014/34/EU
EX-HG88e/2400-4 3G HC
EX-HG88e/2735-4 3G HC
EX-HG88e/3235-4 3G HC
EX-HG88e/2400-4 S 3G HC
EX-HG88e/2735-4 S 3G HC
EX-HG88e/3235-4 S 3G HC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GEA Bock EX-HG88e Series
Summary of Contents for GEA Bock EX-HG88e Series
- Page 1 GEA Bock EX-HG88e Assembly instructions Device category 3 G acc. to directive 2014/34/EU 96403-08.2019-Gb Translation of the original instructions EX-HG88e/2400-4 3G EX-HGX88e/2400-4 3G EX-HG88e/2400-4 3G HC EX-HG88e/2735-4 3G EX-HGX88e/2735-4 3G EX-HG88e/2735-4 3G HC EX-HG88e/3235-4 3G EX-HGX88e/3235-4 3G EX-HG88e/3235-4 3G HC...
-
Page 2: Table Of Contents
About these instructions Read these instructions before assembly and before using the compressor. This will avoid misunder- standings and prevent damage. Improper assembly and use of the compressor can result in serious or fatal injury. Observe the safety instructions contained in these instructions. These instructions must be passed onto the end customer along with the unit in which the compressor is installed. Manufacturer GEA Bock GmbH 72636 Frickenhausen Contact GEA Bock GmbH Benzstraße 7 72636 Frickenhausen Germany Phone +49 7022 9454-0 Fax +49 7022 9454-137 info@gea.com www.gea.com Contents... - Page 3 Contents Page Compressor assembly 4.1 Storage and transport 4.2 Setting up 4.3 Pipe connections 4.4 Pipes 4.5 Start unloader (external) 4.6 Laying suction and pressure lines 4.7 Operating the shut-off valves 4.8 Operating mode of the lockable service connections 4.9 Suction pipe filter Electrical connection 5.1 Information for contactor and motor contactor selection 5.2 Terminal cross section for leads 5.3 Connection of the drive motor 5.4 - 5.6 Circuit diagram 5.7 Electronic trigger unit INT69 G Ex 5.8 Connection of the electronic trigger INT69 G Ex 5.9 Functional test of the electronic trigger unit INT69 G Ex Commissioning 6.1 Preparations for start-up 6.2 Pressure strength test 6.3 Leak test 6.4 Evacuation...
-
Page 4: Safety
1| Safety 1.1 Identification of safety instructions: DANGER Indicates a dangerous situation which, if not avoided, will cause immediate fatal or serious injury. WARNING Indicates a dangerous situation which, if not avoided, may cause fatal or serious injury. CAUTION Indicates a dangerous situation which, if not avoided, may cause fairly severe or minor injury. -
Page 5: Safety Instructions
(e.g. pneumati- cally moved dust, flowing fluids, direct ventilation, belt drives, brushes, foils, etc.). • Perform installation work only if no damage, leaks and/or appear- ances of corrosion can be recognized. The GEA refrigerating compressors named in the title are intended for installation in machines that were set up in areas falling under the EU Explosion Protection Directive 1999/92/EC (operator direc- tive). In the European Union, electrical as well as mechanical devices operated in explosive atmos- pheres must fulfil what are known as ATEX (ATmospheres EXplosibles) conditions. The compressors are specially designed for the category shown on the name plate in accordance with the ATEX directive and may only be used in conformity with the conditions specified and documented in the set-up area (explosion protection document). User safety is taken into account as a particular... -
Page 6: Intended Use
1 | Safety 1.4 Intended use These assembly instructions describe the compressors named in the title manufactured by GEA. The compressor is intended for use in refrigeration systems inside explosion-endangered areas under the designation specified on the name plate in accordance with the European ATEX Directives. Use of the specified refrigerants as well as observance of the operating limits and listed standards must be ensured in any case. Likewise, all accessories available from, approved and specially marked by GEA are exclusively approved, according to their intended use, for attachment to and operation with GEA compressors of appliance category 2 in accordance with Directive 2014/34/EU. WARNING Any other use of the compressor and its approved accessories is prohibited! The ATEX permit is voided if the compressor is used outside the operating limits or undergoes inadmissible design... -
Page 7: Product Description
2 | Product description 2.1 Short description • Semi-hermetic eight-cylinder reciprocating compressor with suction-gas cooled drive motor. • The stream of refrigerant sucked out of the evaporator flows over the motor and cools it intensively. In this way, the motor can be kept at a relatively low temperature level, particularly under high loads. Suction Terminal box shut-off valve Transport eyelet Valve plate Discharge Cylinder cover shut-off valve Motor section Oil pump Name plate Oil sight glass Drive section Fig. 1 Dimension and connection values can be found in Chapter 10. -
Page 8: Ignition Protection Concept
2 | Product description 2.2 Ignition protection concept The compressor described in these instructions for assembly is suitable for use in device category 3 for explosive gas atmospheres up to temperature class T3 and explosion hazard subgroup IIB/IIC in accordance with Directive 2014/34/EU. The entire compressor, including motor, is perceived as technically tight and therefore does not need an ignition protection. To prevent ignition risk caused by working materials also during system malfunctions, all used working materials have to meet the requirements for the temperature class of the compressor. The surface temperature of the compressor may not exceed 80 % of the ignition temperature of the working material. For this reason all working materials need to have an auto-ignition temperature of > 250 °C. The scope of delivery of the standard compressor comprises a conductive paint finish, that is suitable for the use in explosion group IIC. If the compressor is delivered with the accessory "Offshore Paint Finish", the application is restricted to explosion group IIB. - Page 9 2 | Product description Accessories Heating elements for the compressors to protect against explosion risks are designed in the protection types increased safety (Ex d) and have to have to be mounted stationary at the designated areas in the compressor housing. The heating elements can be operated without temperature- and oil level control since the thermal type testing by the manufacturer verified that the heating elements prevent the exceeding of the temperature class of the compressor. The control has to be carried out in a way that the heating element can only be operated during shutdown of the compressor.
-
Page 10: Name Plate
2 | Product description 2.3 Name plate (example) II 3G Ex d e mb nA nC IIC T3 Gc / EPS 16 ATEX 1042 X Ex d e mb nA nC IIC T3 Gc / IECEx EPS 16.0018 X Tamb: / Tamb with capacity regulator: [-20°C]-[60°C] / [-20°C]-[50°C] EX-HGX88e/3235-4 3G AY09529A040... -
Page 11: Atex Identification / Iecex Identification
2 | Product description 2.5 ATEX identification / IECEx identification IIB/IIC d e mb nA nC T3 Gc Equipment protection level Temperature class T3 (max.200 °C) Explosion subgroups, IIB = Offshore paint finish IIC = ESD paint finish Sealed equipment (option) Non-sparking equipment Encapsulation, magnetic coil (option) Increased safety Flameproof enclosure, heater (option) E urop. explosion protection acc to Direc. 2014/34/EU Suitability for gas-explosive area Device category 3 (= zone 2) Explosion group II for Ex-endangered areas (not underground buildings) - Page 12 2 | Product description ATEX-Certificate of Conformity IECEx-Certificate of Conformity EPS 16 ATEX 1042 X / IECEx EPS 16.0018 X S pecial conditions: see "Conditions of Certification" Year of test/Test report number Bureau Veritas Consumer Products Services Germany GmbH International explosion protection S pecial conditions: see point 17 of the EC type examination certificate Test report number ATmospheres EXplosibles european explosion protection Year of test Bureau Veritas Consumer Products Services Germany GmbH...
-
Page 13: Areas Of Application
3.2 Important information on the use of hydrocarbons Hydrocarbons (combustible refrigerants) may be used in the compressors named in the title only if all relevant and applicable regulations, standards and technical rules are followed. National safety regu- lations must be observed. In addition, we refer to the following applicable standards and regulations: EN 378, BGR500, TRBS 2152, EC Directives 1999/92/EC and 2014/34/EU. The compressor and the refrigeration system must be permanently equipped with clear, identical labels/plates (ISO 3864) that state that combustible refrigerants are used. This warning plate must be unremovably attached to the compressor. A hazard analysis in accordance with the Operational Safety Ordinance must be performed for the set-up location. Use and handling of the refrigeration system and compressor are to be governed in the explosion protection document. Installation, placement into operation, service and repair (as permitted by the manufacturer) may only be performed by personnel who have been specially trained on combustible refrigerants. If the compressor has to be removed from the system for inspection/maintenance/repair, the remaining refrigerant must be suctioned out and the compressor evacuated, filled with nitrogen (< 0.5 bar) and closed gas-tight. The compressor must be equipped with a tag that clearly states that the compressor was operated with combustible refrigerant (name the refrigerant). If the system contains combustible refrigerants or residues, extreme caution must be exercised when working on the compressor due to the danger of explosion. This applies especially for the use of fire, open flame or other ignition sources (e.g. electronic devices, mobile telephones, static charges, sparks, ...). During maintenance and repair, it must be noted that hydrocarbon residues may remain dissolved in the oil. In addition used dryers contain bottoms of the inflammable refrigerants. Flush the dryer with nitrogen and supply it to the recycling. It should be noted that the solubility of hydrocarbons in oil can be very high, especially at high suction pressures. A high-viscosity lubricant may be required, depending on the application and experience. The lubricant must be released for use by GEA. Depending on the application, a pump-down switch should also be added (e.g. when the refrigeration system is set up outside). -
Page 14: Oil Charge
3 | Areas of application 3.3 Oil charge The following refrigerants are approved for the compressor: Refrigerant Oil grade FUCHS Reniso SP 46 R134a, R404A, R507, R407C FUCHS Reniso Triton SE 55 R290, R1270 FUCHS Reniso Synth 68 INFO Used refrigerant oils have to have a self-ignition temperature of > 250 °C. Compressors with ester oil filling (FUCHS Reniso Triton SE 55) are marked with an X in the type designation (e.g. EX-HGX88e/3235-4 3G). Compressors with oil filling FUCHS Reniso Snyth 68 are marked with HC (e.g. EX-HG88e/3235-4 3G HC). Operate compressors only with the approved refrigerants and the corresponding assigned and approved oils. Other combinations (e.g. R22 with ester oils) are not permitted! Conversion to another refrigerant/oil is not permitted! Oil level: The oil level from the factory reaches the upper edge of the sight glass. The oil level must... -
Page 15: Limits Of Application
3 | Areas of application 3.4 Limits of application ATTENTION Compressor operation is possible within the operating limits. These can be found in GEA Bock compressor selection tool (VAP) under vap.gea.com. Observe the information given there. - Max. permissible discharge end temperature 140 °C. -
Page 16: Compressor Assembly
4 | Compressor assembly INFO • New compressors are factory-filled with inert gas. Leave this service charge in the compressor for as long as possible and prevent the ingress of air. • Check the compressor for transport damage before starting any work. -
Page 17: Setting Up
4 | Compressor assembly 4.2 Setting up ATTENTION Fittings (e.g. pipe holders, additional units, mounting parts etc.) on the compressor are not permissible! Provide adequate clearance for maintenance work. Ensure adequate compressor ventilation. Fig. 6 Do not operate in an aggressive and/or corrosive atmosphere. Fig. 7 Setup on an even surface or frame with sufficient load- bearing capacity. Only set up on a slant after consulting with the manufacturer. Single compressor preferably on vibration damper. Fig. 8 Lightening protection: If the compressor is set up outdoors, a lightening protection concept has to be integrated. Fig. 9 Sun protection: If the compressor is set up outdoors, it has to be protected from direct sunlight. -
Page 18: Pipe Connections
4 | Compressor assembly 4.3 Pipe connections The pressure and suction shut-off valves have graduated inside dia- meters so that pipes in the common millimeter and inch dimensions can be used. The pipe will be inserted more or less deep, depending on the dimension. The connection diameters of the shut-off valves are designed for maximum compressor performance. The actual required pipe cross section must Fig.12: graduated be matched to the output. The same applies for non-return valves. internal diameter ATTENTION An explosive atmosphere must not be present! Do not solder as long as the compressor is under pressure. Superheating can damage the valve. -
Page 19: Laying Suction And Pressure Lines
4 | Compressor assembly Solenoid valve dead Non-return valve open Fig. 14 Important: - Start unloader may only be employed during the starting phase. - Check the solenoid valve and the non-return valve regulary for tightness. - I n addition, we recommend to use a heat protection thermostat on the discharge side of the com- pressor. This protects the compressor against thermal overloading. Connect the heat protection thermostat in series on the safety chain of the control circuit, to switch off the compressor if necessary. - Follow these instructions to avoid thermal overloading. 4.6 Laying suction and pressure lines ATTENTION Improperly installed pipes can cause cracks and tears which can result in a loss of refrigerant. INFO Proper layout of the suction and pressure lines directly after the compressor is integral to the smooth running and vibration beha-... -
Page 20: Operating The Shut-Off Valves
4 | Compressor assembly 4.7 Operating the shut-off valves Before opening or closing the shut-off valve, release the valve spindle seal by approx. of a turn counter-clockwise. After activating the shut-off valve, re-tighten the adjustable valve spindle seal clockwise. Release Tighten Valve spindle seal Fig. 17 Fig. 16 4.8 Operating mode of the lockable service connections Service connection closed Pipe connection Spindle Connection blocked Compressor Opening the shut-off valve: Fig. 18 Spindle: turn to the left (counter-clockwise) as far as it will go. -
Page 21: Electrical Connection
5 | Electrical connection Electrical connection DANGER Risk of electric shock! High voltage! Only carry out work when the electrical system is disconnected from the power supply! ATTENTION When attaching accessories with an electrical cable, a minimum bending radius of 3 x the cable diameter must be maintained for laying the cable. -
Page 22: Information For Contactor And Motor Contactor Selection
5 | Electrical connection 5.1 Information for contactor and motor contactor selection WARNING Always install all electrical peripheral devices in an external control cabinet outside the explosion-endangered area! All protection devices and switching or monitoring units must be fitted in accordance with the local safety regulations and established specifications (e.g. VDE) as well as with the manufacturer’s infor- mation. Motor protection switches are required! Motor contactors, feed lines, fuses and motor protection switches must be rated on the basis of the maximum working current (see name plate). For motor protection use a current-dependent and time-delayed overload protection device for moni- toring all three phases. Set the overload protection device so that it must be actuated within 2 hours, if there is 1.2 times the max. working current. 5.2 Terminal cross section for leads To limit the heating of conducting parts, the minimum terminal cross sections, indicated in the table have to be followed. -
Page 23: Connection Of The Drive Motor
5 | Electrical connection 5.3 Connection of the drive motor Designation on the name plate Y/YY Compressors marked in this way are suitable for direct or part winding start. motor winding is divided into two parts: enmotor Part winding 1 = 50 % and part winding 2 = 50 %. für Direkt- oder Teilwicklungsstart Typschildangabe Gelber Aufkleber führung für Direkt- oder Teilwicklungsstart it dieser Kennzeichnung ist für Direkt- This winding division reduces the start-up current during a part winding start to approx. 50 % of the Typschildangabe Gelber Aufkleber am Klemmenkasten ichter mit dieser Kennzeichnung ist für Direkt- cklungsstart (PW-Anlauf) geeignet. - Page 24 5.4 Circuit diagrams for power section Legend for circuit diagram YY (direct start) Power section QA1 Main switch QA2 Motor contactor FC1.1 Motor safety switch EC1 Compressor motor BT1 PTC-sensor motor winding BT2 Thermal protection thermostat UC1 Terminal box compressor X KK Terminal strip in terminal box compressor X SS Terminal strip in external switch cabinet Legend for circuit diagram Y/YY (part-winding start) Power section QA1 Main switch...
- Page 25 FC1.1 FC1.1 FC1.2 I> I> I> I> I> I> I> I> I> XKK D 1 XKK PW 1 / 2.1.3 / 3.1.3 XKK D 2 XKK PW 2 / 2.1.3 / 3.1.3 network Netz 400V 50Hz network Netz 400V 50Hz XSS Klemmleiste XSS Terminal strip Schaltschrank...
-
Page 26: Electronic Trigger Unit Int69 G Ex
5.5 Circuit diagrams for control section for direct start YY Legend for circuit diagram YY (direct start) FB1 Fault protection switch (release current 30 mA) FC2.1 Control fuse FC2.2 Control fuse LR / oil sump heater SF1 Control voltage O/I QA2 Performance contactor direct start KF3 Collective malfunction alarm contactor KF4 ² Electronic trigger unit INT69 EX2 BT3¹ Pump down- pressostat/ thermostat or external enabling switch BP1/BP2¹ High/low pressure monitoring in accordance with the relevant national regulations X SS Terminal strip in the external switch cabinet X KK Terminal strip in the supplemental terminal box with recognised protection type Optional KF1 Time delay relay (on delay) max. 90 sec. (bypass time at start) KF2... - Page 27 INT69G INT69 EX2 FC2.1 FC2.2 OG OG Δ XKK D 1 XKK D 2 Externe E xternal release LR Freigabe LR FC1.1 90sec. 90sec. or br P< P> P-öl Kriwan The circuit diagram is a system scheme for assignment and order of the safety chain, without Der Schaltplan ist nur ein Systemschema, zur Anordnung und Reihenfolge der Sicherheitskette, ohne Störungsmeldungen und Montageanordnung error messages and installation arrangement (whether inside or outside the Ex zone).
- Page 28 5.6 Circuit diagrams for control section Y/YY part winding start Legend for circuit diagram Y/YY (part-winding-start) FB1 Fault protection switch (release current 30 mA) FC2.1 Control fuse FC2.2 Control fuse LR / oil sump heater SF1 Control voltage O/I Performance contactor part winding I QA3 Performance contactor part winding II KF3 Collective malfunction alarm contactor KF4 ² Electronic trigger unit INT69 EX2 KF5 Time relay for time delayed connect of the second part winding BT3¹ Pump down- pressostat/ thermostat or external enabling switch BP1/BP2¹ High/low pressure monitoring in accordance with the relevant national regulations X SS Terminal strip in the external switch cabinet X KK Terminal strip in the supplemental terminal box with recognised protection type Optional KF1...
- Page 29 INT69 EX2 INT69G FC2.1 FC2.2 OG OG Δ FC1.1 XKK PW 1 Externe E xternal XKK PW 2 release LR FC1.2 Freigabe LR Voltage-free Potentialfrei P< P> P-öl Kriwan Störung Safety Sicherheitskette chain fault The circuit diagram is a system scheme for assignment and order of the safety chain, without Der Schaltplan ist nur ein Systemschema, zur Anordnung und Reihenfolge der Sicherheitskette, ohne Störungsmeldungen und Montageanordnung error messages and installation arrangement (whether inside or outside the Ex zone).
- Page 30 5 | Electrical connection 5.8 Electronic trigger unit INT69 EX2 ATTENTION Install INT69 EX2 outside the explosion-endangered area. The INT69 EX2 trigger unit must be installed according to the wiring diagram. The hot gas sensors of the cylinder cover and the temperature sensors of the motor are observed by the electronic trigger unit INT69 EX2. In case of excess temperature in the motor winding and/or in the hot gas, the INT69 EX2 deactivates the motor contactor. Once cooled, it can be restarted only if the electronic lock of the output relay (terminals 1+2) is released by a mains reset > 5 sec. The INT69 EX2 fulfills the requirements of the IPL 1 (Ignition Prevention Level) as prescribed in the EN 80079-37 and has an appropriate EX identification. The unit trips when an overload or inadmissible operating conditions occur. Find and remedy the cause.
- Page 31 5 | Electrical connection 5.9 Connection of the trigger unit INT69 EX2 Wire the PTC temperature sensor of the compressor motor, thermal protection thermostats of the cylinder cover, pressure and temperature monitoring of the system according to the wiring diagram (fig. 21+22). Pay attention for connecting the PTC sensor. Terminals 1 + 2 on the trigger unit INT69 EX2 and terminals PTC 1 and PTC 2 on the compressor terminal board must not come into contact with mains voltage. This would destroy the trigger unit and PTC sensors. The supply voltage at L1-N (+/- for DC 24 V version) must be identical to the voltage at terminals 11, 12 and 14.
-
Page 32: Commissioning
6 | Commissioning WARNING All of the following work must be performed only by qualified personnel (see p. 4) and with exclusion of an explosive atmosphere. 6.1 Preparations for start-up INFO In order to protect the compressor against prohibited operating conditions, high- and low-pressure monitors are necessary in accordance with the relevant national regulations! The compressor has undergone trials in the factory and all functions have been tested. There are... -
Page 33: Evacuation
6 | Commissioning 6.4 Evacuation ATTENTION Do not start the compressor if it is under vacuum. Do not apply any voltage - even for test purposes (must only be operated with refrigerant). Under vacuum, the spark-over and creepage current distances of the terminal board connection bolts shorten; this can result in winding and terminal board damage. First evacuate the system and then include the compressor in the evacuation process. Relieve the compressor pressure. -
Page 34: Start-Up
6 | Commissioning 6.6 Start-up WARNING Ensure that both shut-off valves are open before starting the compressor! Check that the safety and protection devices (pressure switch, motor protection, electrical contact protection measures, etc.) are functioning properly. Switch on the compressor and let it run for at least 10 minutes. Check the oil level: The oil must be visible in the sight glass. ATTENTION If larger quantities of oil have to be topped up, there is a risk of oil impact effects. If this is the case, check the oil return! 6.7 Avoiding liquid sluggings ATTENTION Slugging can result in damage to the compressor and cause refrigerant to leak. -
Page 35: Maintenance
7 | Maintenance 7.1 Preparation WARNING All work must be performed only by: qualified personnel (see page 4) with exclusion of any danger of explosion. Before starting any work on the compressor: Obtain written work release. Switch off the compressor and secure it to prevent a restart. Relieve compressor of system pressure. Prevent air from infiltrating the system! After maintenance has been performed: Connect safety switch. Evacuate compressor. -
Page 36: Spare Part Recommendation
Item No. Item No. Item No. Designation Set of gaskets 81857 / 81868 (HC) 81856 / 81869 (HC) 81007 / 81870 (HC) Set of valve plate 81617 81621 81622 Set of oil pump 80116 Only use original GEA spare parts! Information on available replacement parts can be obtained from the replacement parts list. Further repair work can only be carried out at the factory. 7.4 Screw connections The following torques must be used when re-assembling the compressor. Cylinder cover / bearing cover 75 Nm M22 x 1.5 Oil filler plug / oil drain plug / oil sump heater 100 Nm 7 / 16 " Flange connection, 13 Nm soldering supports for shut-off valves... -
Page 37: Accessories
8| Accessories 8.1 Capacity regulation INFO Using the Norgren magnetic coil, ID no. 4280/4281 (GEA part no. 70123, 70124, 70125, 70149) effectively reduces the permissible ambient temperature of the compressor to (−20 °C)–(+50 °C). Observe the type plate on the magnetic coil. - Page 38 8| Accessories ATTENTION The device may be used only within the data specified on the type plate. Changes to the device are not permitted. A fuse (max. 3 x l accordance with IEC 6 0127-2-1) corresponding to the rated current must be placed in front of every valve actua- ting magnet as short-circuit protection. The rated voltage of the fuse must be equal to or greater than the rated voltage of the val- ve actuation magnets.
-
Page 39: Oil Sump Heater
8| Accessories 8.2 Oil sump heater (retrofit kit item no. 81193) The explosion-protected heating element in self-limited design, including immersion sleeve and ap- proved cable fitting (Es d), is supplied with an electrical supply line of approx. 3.2 metres. Installation in the terminal box of the compressor is already prepared. The connection line for the heating element must be laid permanently and mechanically protected. During assembly and installation, the requirements of EN 60079-14 and EN 60079-17 must be observed. In addition, nationally applicable laws, safety regulations (BetrSichV) or provisions must be observed. ATTENTION The supply line length of 3.2 m must not be shortened under any circumstances during installation (integrity of protection against arcing or flame penetration within the cable insulation). -
Page 40: Oil Differential Pressure Sensor Int250 Ex
8| Accessories 8.3 Oil differential pressure sensor INT250 Ex (retrofit kit item no. 81196) ATTENTION Installation must be in accordance with EN 60079-14. Risk of static charge from the plastic housing of the INT250 Ex. Avoid strong charge-generating processes in the proximity of the com- pressor (see Chapter 1.3). Carry out the cleaning work using only a damp cloth and away from potentially-explosive atmospheres. -
Page 41: Technical Data
9| Technical data Sound pressure level Oil charge (sight glass centre) Oil charge (ex works) Suction line Discharge line Weight Starting current (rotor locked) Max. power consumption Max. operating current 380-420 V Y/YY - 3 - 50 Hz PW 440-480 V Y/YY - 3 - 60 Hz PW Voltage PW = Part Winding Winding ratio : 50 % / 50 % Displacement (1450 / 1740 rpm) No. -
Page 42: Dimensions And Connections
10| Dimensions and connections M50x1,5 (2x) Onshoreversion Anschlüsse / M63x1,5 (2x) Offshoreversion Connections Saugabsperrventil, B1 A1 Suction line valve, t EX-HG88e Druckabsperrventil, Discharge line valve M50x1,5 (2x) Onshoreversion Anschluss Saugseit Anschlüsse / M63x1,5 (2x) Offshoreversion Connections Connection suction Anschluss Saugseit M40x1,5 (2x) Saugabsperrv B1 A1... - Page 43 10| Dimensions and connections Suction line see technical data, Chapter 9 Discharge line 1 / 8 “ NPTF Connection suction side, not lockable 7 / 16 “ UNF Connection suction side, lockable 1 / 4 “ NPTF Connection suction side, not lockable 1 / 8 “ NPTF Connection discharge side, not lockable 7 / 16 “ UNF Connection discharge side, lockable 7 / 16 “ UNF Connection oil pressure safety switch OIL 7 / 16 “ UNF Connection oil pressure safety switch LP 1 / 4 “ NPTF Connection oil return from oil separator...
-
Page 50: Service
Service Dear customer, GEA compressors are top-quality, reliable and service-friendly quality products. If you have any questions about installation, operation and accessories, please contact our technical service or specialist wholesaler and/or our representative. The GEA service team can be contacted by phone with a toll-free hotline 00 800 / 800 000 88 or via e-mail: info@gea.com Yours faithfully GEA Bock GmbH Benzstraße 7 72636 Frickenhausen Germany... - Page 52 • • GEA Group is a global engineering company with multi-billion euro sales and operations in more than 50 countries. Founded in 1881, the company is one of the largest providers of innovative equipment and process technology. GEA Group is listed in the STOXX ®...
