COMPX ecoForce Quick Manual page 3

ecoForce
No-battery push button cabinet lock

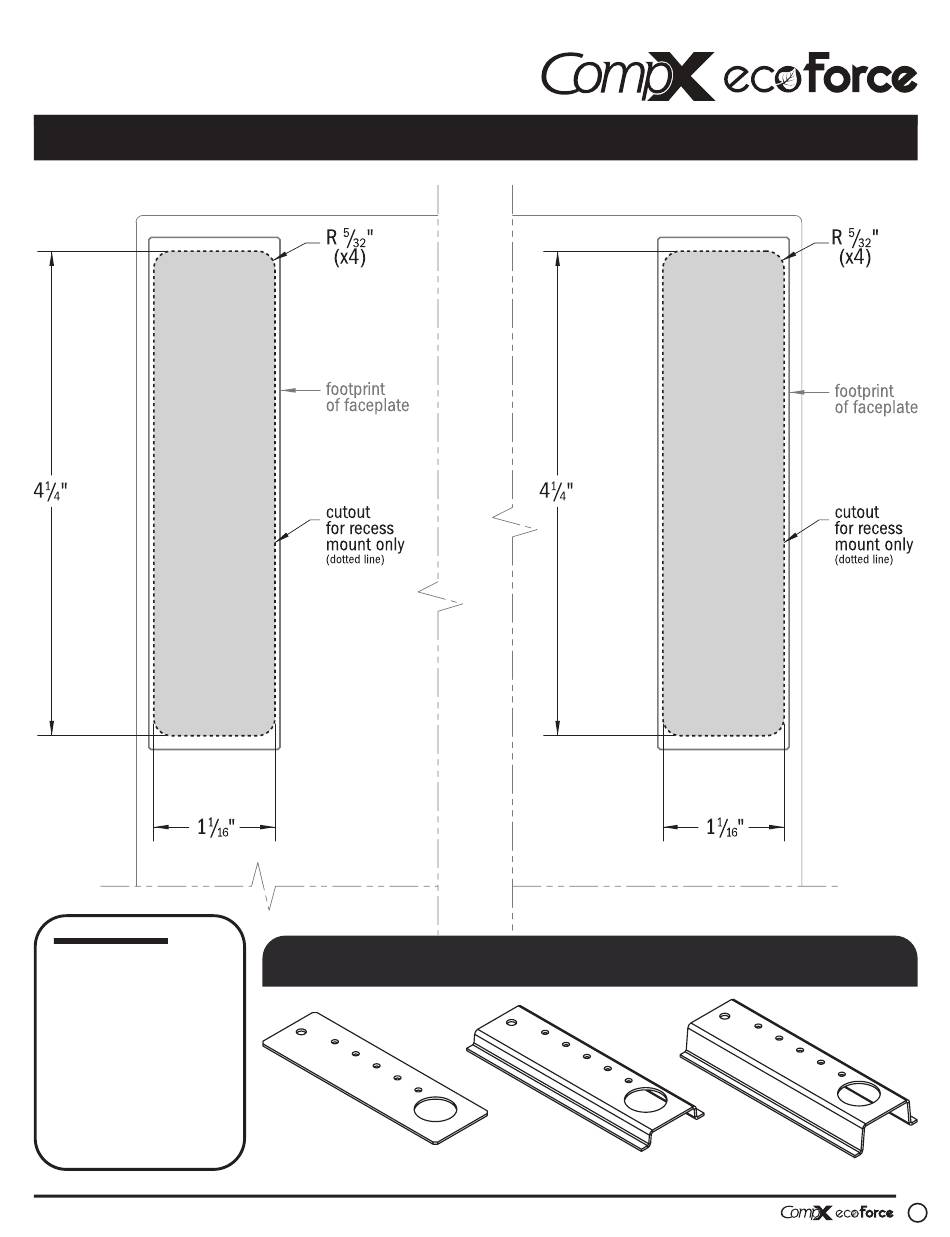

Installation templates – vertical right hand & vertical left hand
Vertical right hand
1"
WARNING:
Print this
page and measure the line
above. It is ONE INCH
LONG. If it measures less
than or more than one inch,
the template measurements
also need to be scaled
accordingly.
FAILURE TO DO SO
COULD RESULT IN
MISDRILLED HOLES.
ecoForce — Recessed mount instructions
– RECESSED mount
Recessed mount requires mounting brackets, made for specific material thicknesses.
N302053-160
thicker material
than 5/16"
Vertical left hand
N3-2053-161
5/16" to 5/8"
N3-2053-162
thinner material
than 5/8"
3
