20 C 2: I
HAPTER NSTALLING THE
in Figure 4. Ensure the wire release lever is closed (in
the upright position).

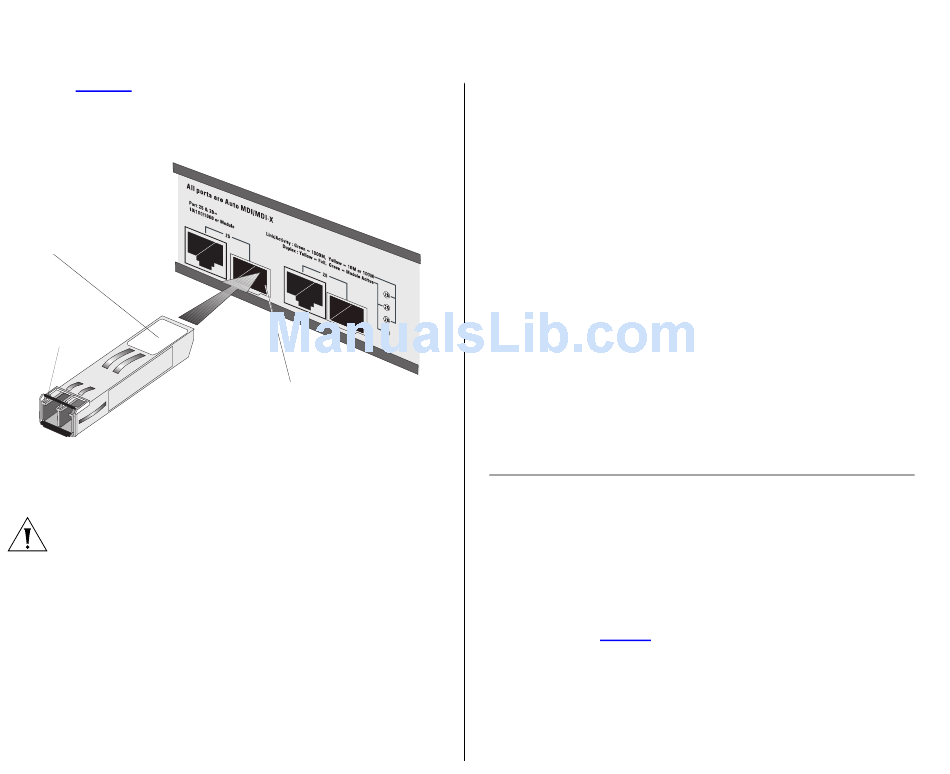

Figure 4 Inserting the SFP Transceiver
Product
label
Wire release
lever
Gently slide the transceiver into the SFP slot until it
2
clicks into place.
CAUTION: SFP transceivers are keyed and can be
properly inserted only one way. If the transceiver does
not click when you insert it, remove it, turn it over,
and then re-insert it.
Remove the plastic protective cover, if fitted.
3
Connect the fiber cable.
4
The transceiver connects to the network using a
5
duplex LC connector. Attach a male duplex LC con-
nector on the network cable into the duplex LC con-
nector on the transceiver.
S
WITCH
Suitable slot
o n host Switch
Connect the other end of the cable to a device fitted
6
with an appropriate Gigabit Ethernet connection.
Check the Module Active LEDs on the front of the
7
Switch to ensure that it is operating correctly.

Removing an SFP Transceiver

Removing an SFP transceiver does not require power-
ing off the Switch.
To remove an SFP transceiver:
Disconnect the cable from the transceiver.
1
Move the wire release lever downwards until it is
2
pointing toward you.
Pull the wire release lever toward you to release the
3
catch mechanism.
The SFP transceiver should slide out easily.

Performing Spot Checks

At frequent intervals, you should visually check the
Switch. Regular checks can give you an early warning
of a possible failure; any problems can then be
attended to when there will be least effect on users.
3Com recommends periodically checking the items
listed in Table 5.
