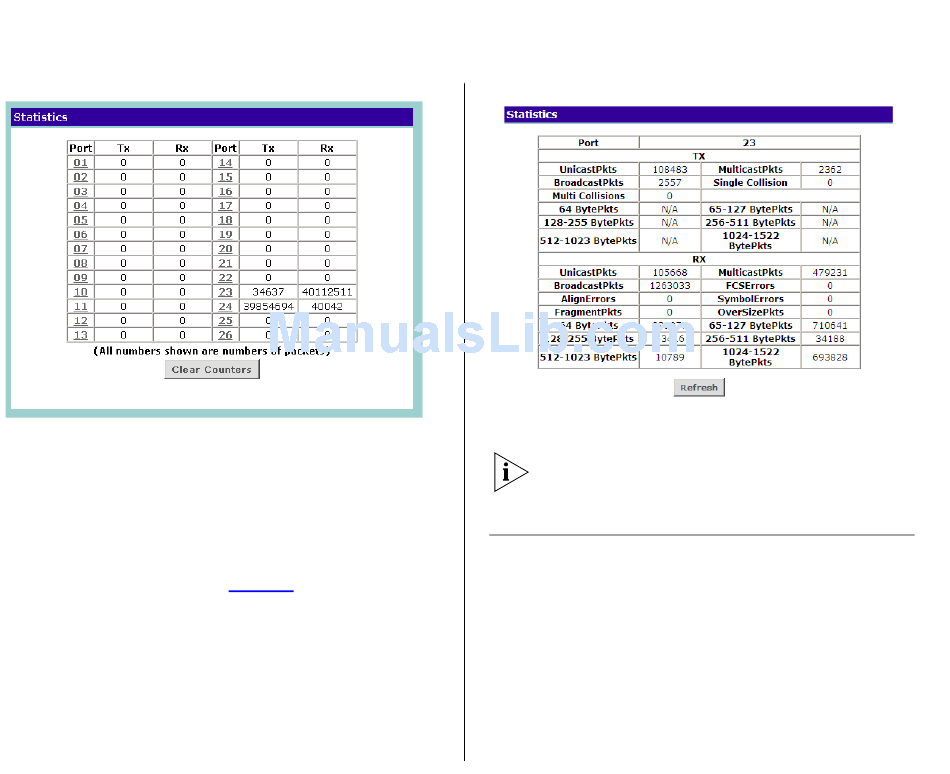

Figure 22 Statistics Screen
Figures that appear onscreen indicate the number of
packets transmitted (Tx) and received (Rx).
To reset all packet counts to zero, click Clear
■
Counters.
To view detailed statistics for each port, click the
■
port number. The statistics page for the port
appears, as shown in
S
WITCH
Figure 23.
Figure 23 Port Statistics Screen
Figures on the Statistics screen for individual ports are
not updated in real time. To view the latest statistics
for the port, click Refresh.

Monitoring Traffic

The Switch allows you to monitor traffic going in and
out of a particular port. For traffic monitoring to
work, you need to attach a network analyzer to one
port and use it to monitor the traffic of other ports in
the stack.
To set up traffic monitoring, you need to set an analy-
sis port (the port that is connected to the analyzer),
and a monitor port (the port that is to be monitored).
Once the pair is defined, and you enable traffic moni-
