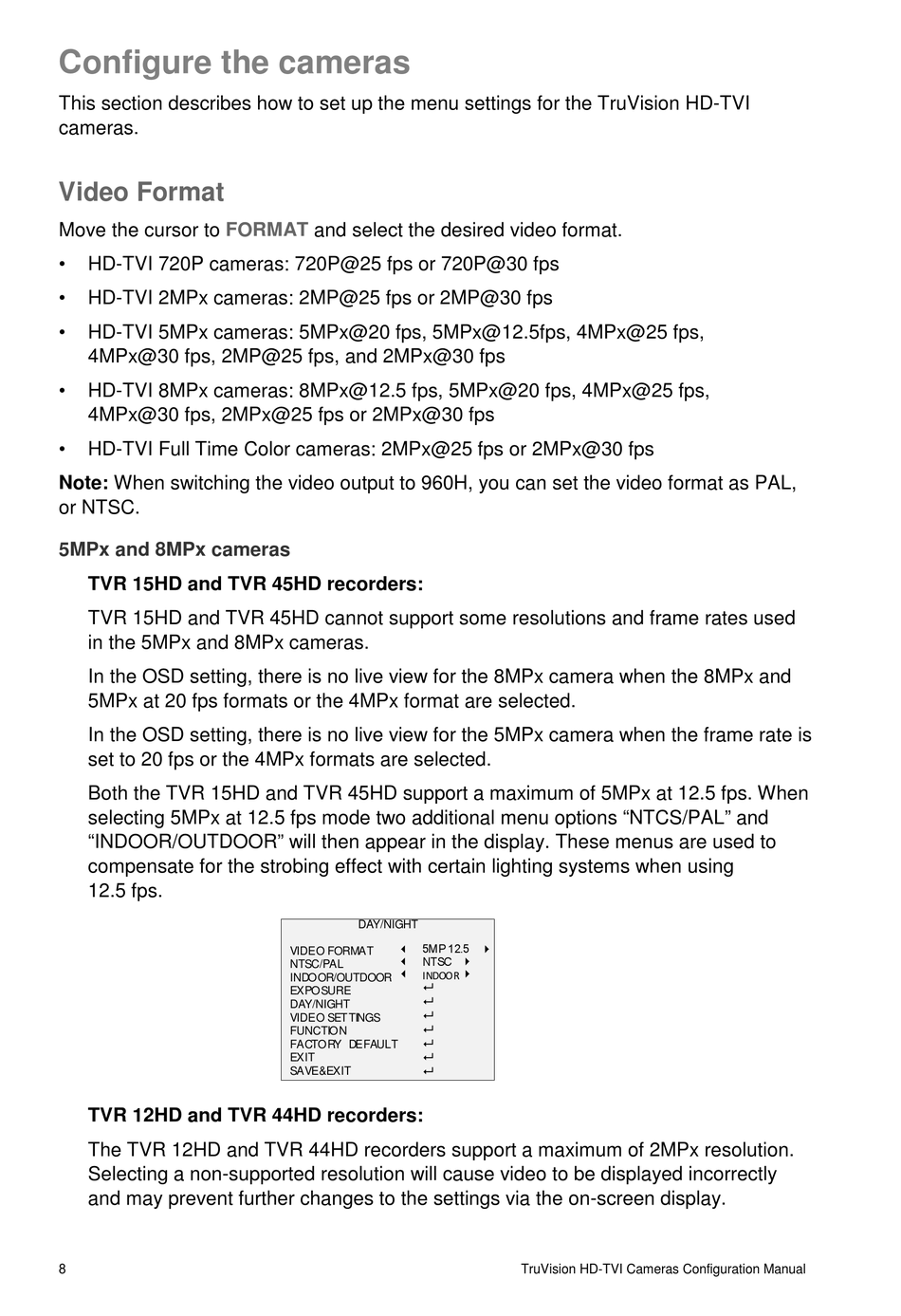

Configure the cameras

This section describes how to set up the menu settings for the TruVision HD-TVI
cameras.

Video Format

Move the cursor to
• HD-TVI 720P cameras: 720P@25 fps or 720P@30 fps
• HD-TVI 2MPx cameras: 2MP@25 fps or 2MP@30 fps
• HD-TVI 5MPx cameras: 5MPx@20 fps, 5MPx@12.5fps, 4MPx@25 fps,
4MPx@30 fps, 2MP@25 fps, and 2MPx@30 fps
• HD-TVI 8MPx cameras: 8MPx@12.5 fps, 5MPx@20 fps, 4MPx@25 fps,
4MPx@30 fps, 2MPx@25 fps or 2MPx@30 fps
• HD-TVI Full Time Color cameras: 2MPx@25 fps or 2MPx@30 fps
Note: When switching the video output to 960H, you can set the video format as PAL,
or NTSC.
5MPx and 8MPx cameras
TVR 15HD and TVR 45HD recorders:
TVR 15HD and TVR 45HD cannot support some resolutions and frame rates used
in the 5MPx and 8MPx cameras.
In the OSD setting, there is no live view for the 8MPx camera when the 8MPx and
5MPx at 20 fps formats or the 4MPx format are selected.
In the OSD setting, there is no live view for the 5MPx camera when the frame rate is
set to 20 fps or the 4MPx formats are selected.
Both the TVR 15HD and TVR 45HD support a maximum of 5MPx at 12.5 fps. When
selecting 5MPx at 12.5 fps mode two additional menu options "NTCS/PAL" and
"INDOOR/OUTDOOR" will then appear in the display. These menus are used to
compensate for the strobing effect with certain lighting systems when using
12.5 fps.
TVR 12HD and TVR 44HD recorders:
The TVR 12HD and TVR 44HD recorders support a maximum of 2MPx resolution.
Selecting a non-supported resolution will cause video to be displayed incorrectly
and may prevent further changes to the settings via the on-screen display.
8
FORMAT and select the desired video format.
DAY/NIGHT
VIDEO FORMAT
NTSC/PAL
INDOOR/OUTDOOR
EXPOSURE
DAY/NIGHT
VIDEO SET TINGS
FUNCTION
FACTORY DEFAULT
EXIT
SAVE&EXIT
5MP 12.5
NTSC
INDOOR







