To allow the spraying system to operate effectively, any spraying device should not exceed 2/3 of the maximum
Example:
2.5 L/min x 12 nozzles = 30 L/min. 30 litres is more than 2/3 the capacity of the M35 pump so an

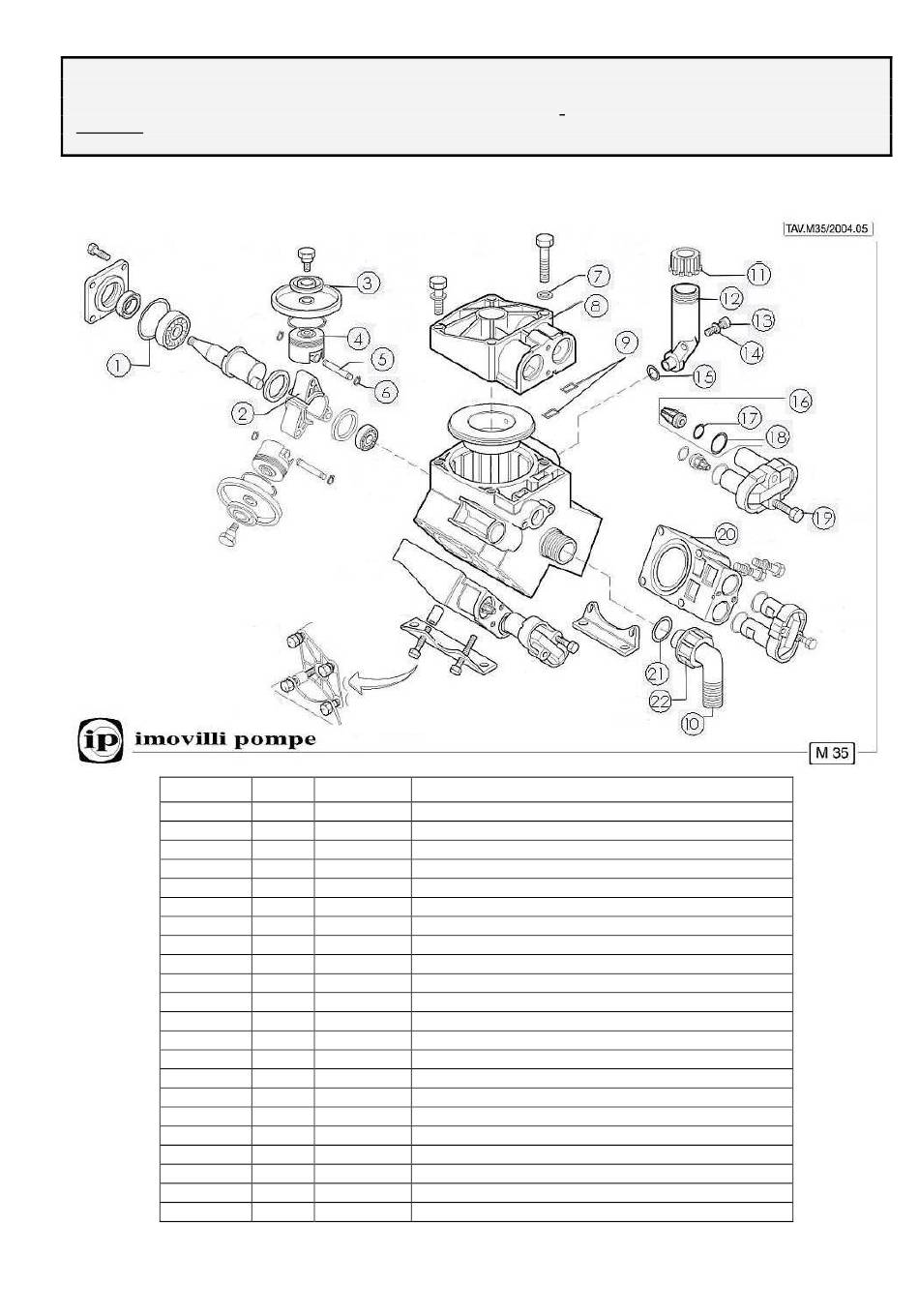

ITEM NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
flow of the spray pump.
M50 would be required, or the nozzle flow reduced.
Part number #6800-7700
QTY.
e9 Part No
e9 description
1
5500-7090
ORing-Metric-3.1x54.4mm-N70
1
7400-4200
Rod-Imovilli-Connecting-M35
1
2300-4320
Diaphragm-Imovilli-Piston-M25;M35
1
6220-4360
Piston-Imovilli-Pump-M35
1
6100-4320
Pin-Imovilli-Piston-M35
1
1980-4000
Circlip-Imovilli-Gudgeon-M35
1
9100-4320
Washer-Imovilli-Chamferred-1750
1
4060-2050
Head-Imovilli-Cylinder-M35-LH
1
5450-4600
ORing-Imperial-3/32x11/16"-N70
1
6200-4230
Pipe-Fitting-Imovilli-Elbow-25 Shank-Swivel-25mm-Plastic
1
1600-4400
Cap-Imovilli-Oil Filler-M25;M35;M50;D82;D113
1
5400-3000
Oil Filler-Imovilli-M25;M35;M50
1
3040-0835
Fastener-Imovilli-Cap Head-Allen Screw-M8x35-Grade 8.8-ZP
1
9100-4320
Washer-Imovilli-Chamferred-1750
1
5500-2020
ORing-Metric-2.0x15mm-V75
1
8900-4340
Valve-Imovilli-Check-Complete-M25;M29;M35
1
5450-4580
ORing-Imperial-3/32"x3/4"-N70
1
5450-4620
ORing-Imperial-3/32"x1"-N70
1
3060-0830
Fastener-Imovilli-Set Screw-Hex-M8x30-8.8 Grade-ZP
1
4060-2050
Head-Imovilli-Cylinder-M35-LH
1
5450-4590
O'Ring-Imperial-3/32''x13/16''-N70
1
6200-4260
Pipe-Fitting-Imovilli-Nut-Swivel-1''-Plastic
CAUTION
M35 Pump
19
