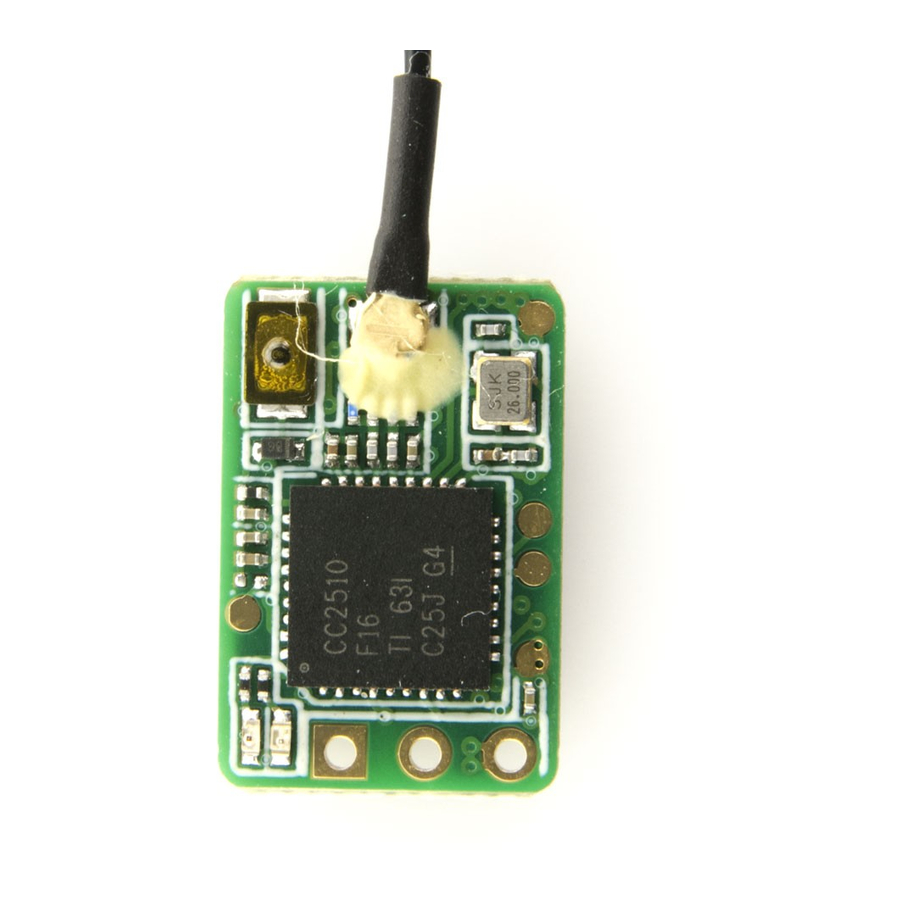

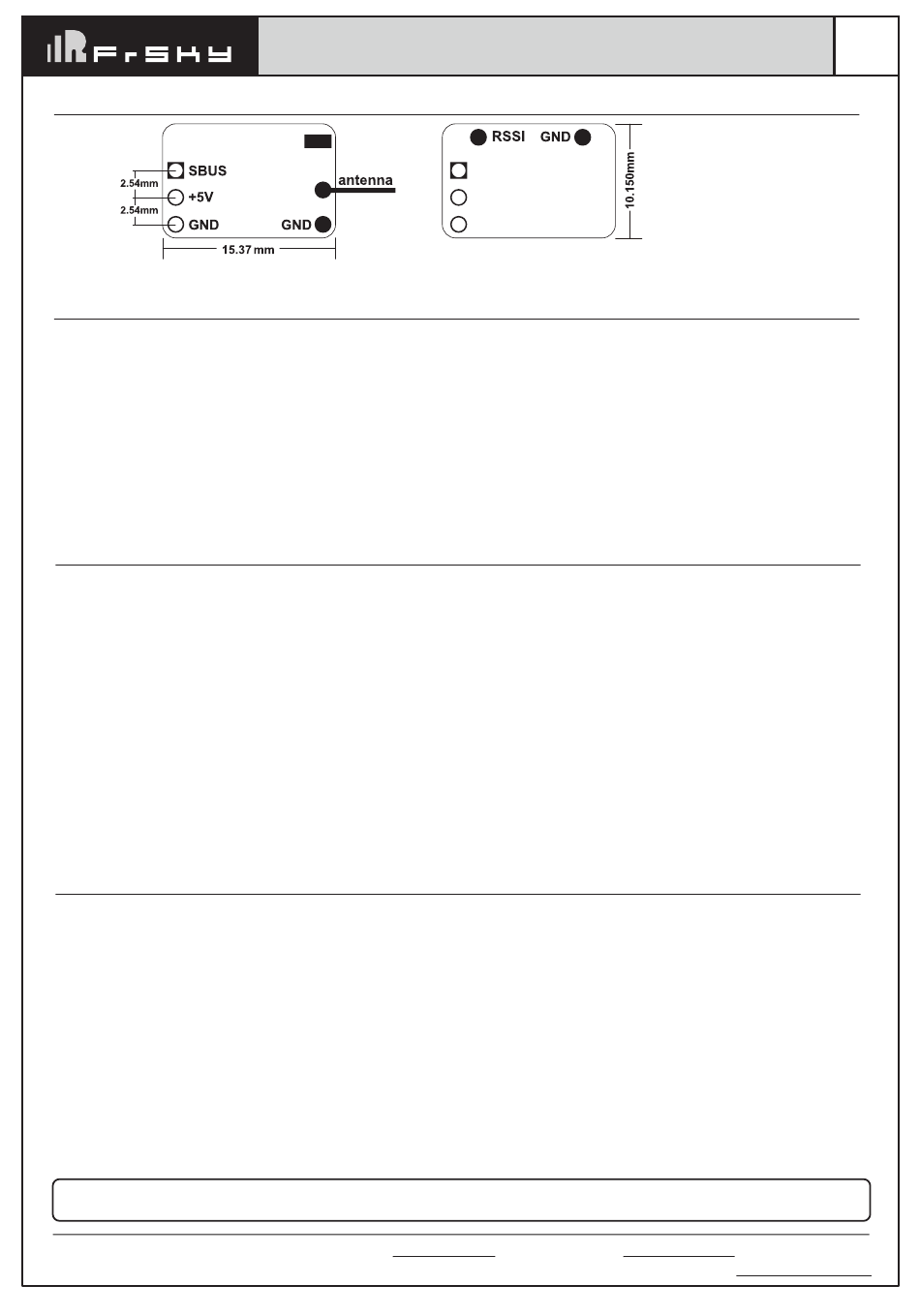

Overview
Specifications
• Dimension: 15*10*3.5mm (L x W x H)
• Weight: 1g
• Number of Channels: Up to 16CH from SBUS
between RSSI and channel output.)
• Operating Voltage Range: 3.5V~10V
• Operating Current: 20mA@5V
• Operating Range: >600m
• With RSSI output on board: Analog 0~3.3V
• Firmware Upgradeable
• Compatibility: TX With ACCESS V1.1.2
Registration & Automatic binding (Smart Match )
With the FrSky ACCESS protocol, the transmitter/transmitter module can bind receiver without using the "F/S"
button.
Follow the step below to finish the Registration & binding procedure:
1. Put the transmitter/transmitter module into [Reg] status.
1.1 For Taranis X-Lite Pro as an example, turn on the transmitter, go to the MENU-MODEL SETUP-PAGE 2,
choose Internal or External RF, and select [Reg].
2. Connect the battery to the receiver while holding the F/S button on the receiver. The RED LED and GREEN LED
on the receiver will be on, indicating into the [Reg] status. Select [ENTER] on the transmitter, The RED LED and
GREEN LED will flash, and the transmitter displays [Registration ok].
3. Turn off the receiver.
4. Move the cursor to select the receiver 1 [Bind].
5. Connect the battery to the receiver, the GREEN LED will flash, indicating into the [Bind] status. Select the RX,
the GREEN will keep lit, and the transmitter displays [Bind successful].
6. The transmitter exit [Bind], GREEN LED will keep lit, RED LED will be off, indicating Working normally.
Failsafe is a useful feature which is for a preset channel output position whenever control signal is lost for a period.
Follow the steps to set Failsafe for channels necessary:
Failsafe for receiver supporting ACCESS can be set via radio interface, which support no pulse, hold and custom
three modes for each channel.
1. For Taranis X-Lite Pro as an example, turn on the transmitter, go to: MODEL SETUP/Internal RF/Failsafe.
2. Failsafe can be set on receiver via short pressing F/S button while moving a certain channel position to a preset
value after binding.
Much more operation and instruction please refer to radio manual.
For more details, please check the complete manual for XM from www.frsky-rc.com - Download - Manual.
Should you have other questions, please send e-mails to FrSky technical support sales4tech@gmail.com.
FrSky is continuously adding features and improvements to our products. To get the most from your product, please check
the download section of the FrSky website www.frsky-rc.com for the latest update firmware and manuals
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky ACCESS XM
F/S
(Default 16 channel, press the button >5s, Ch16 will switch
www.frsky-rc.com
01140049
TM
Contact us: frsky@frsky-rc.com
Version
1.0
