FrSky Horus X10 Express Manual

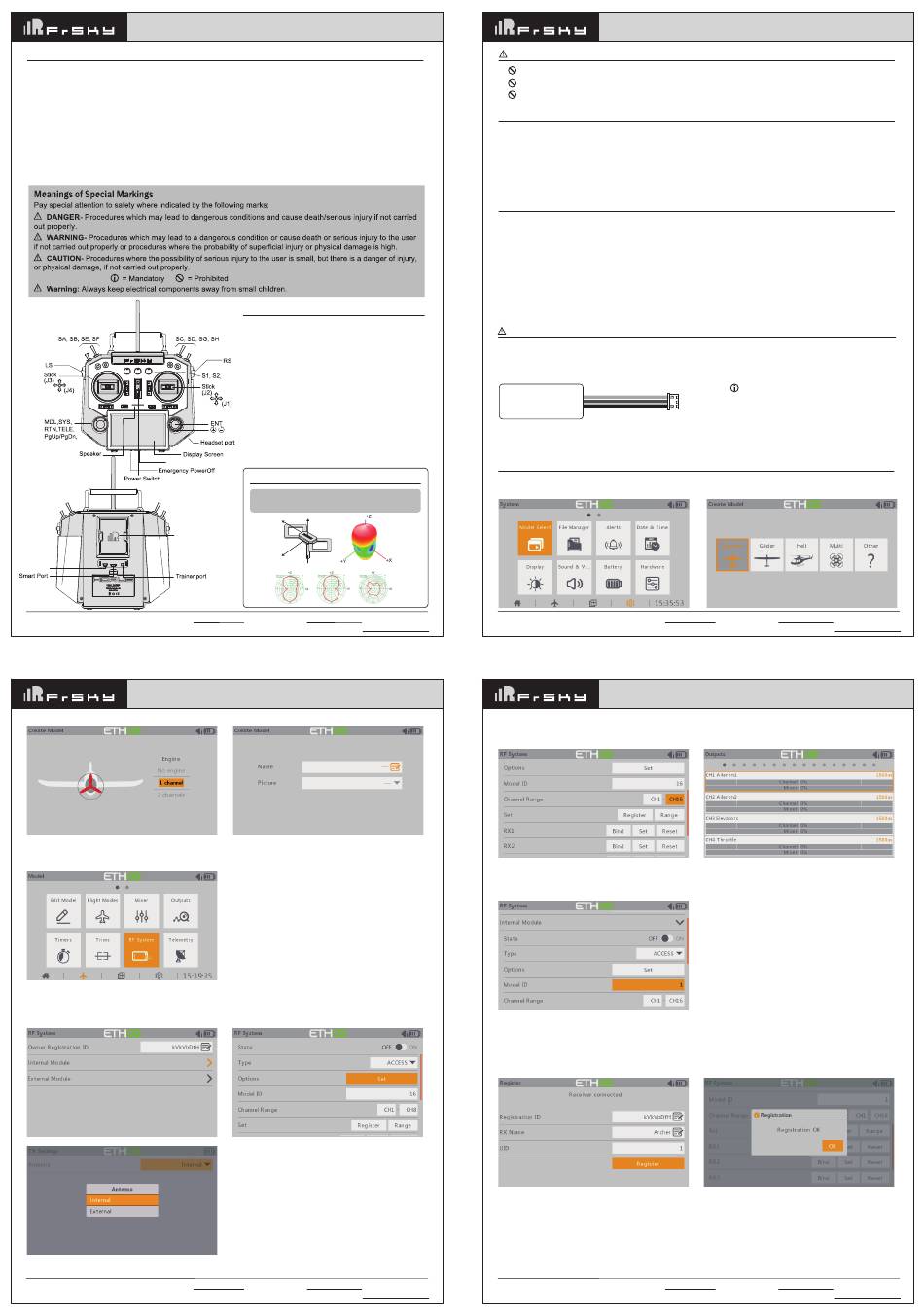

FrSky 2.4GHz ACCESS Horus X10 Express/Horus X10S Express Manual

Introduction

With the demand for further extending the legacy of the Horus Series Transmitters, the Horus X10/S Express version
was born. With many new updates like applying the ACCESS protocol and hardware tweaks.
Horus X10/S Express use the ACCESS communication protocol, it boasts 24 channels with a faster baud rate and
lower latency equipped with a high-speed module digital interface. Along with the new spectrum analysis function and
added FrOS/OpenTX firmware, it is now possible to check the airwaves for RF noise.
Both X10 and X10S Express support balancing charge for 2S Li-ion battery via a collateral USB cable. The accessible
Battery compartment design is another change worth mentioning, with two 18650 Li-ion batteries you can expect to be
able to fly all day. The Express carries forward all of their predecessor' features like the industrial LCD color screen,
and the highly-accuracy M10/MC12P hall sensor gimbals which offer the most precise control. Additionally, it features
a remarkable PARA wireless trainer function which also makes them compatible with the FrSky Free Link App and
AirLink S. All that makes the Express version an ideal transmitter for, gliders, helis, multirotor and every type of
fixed-wing imaginable.
Micro SD Card slot
External RF Module slot
Mini USB Port
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
FrSky 2.4GHz ACCESS Horus X10 Express/Horus X10S Express Manual
Step 2: Configure the model channel and create the model name.

Model Setup Procedure-Internal Module

Step 1:
Choose the INT MODULE. Then turn ON INTERNAL RF, select the OUTSIDE or INSIDE ANTENNA.
Set the Mode for Horus X10 Express/Horus X10S Express internal RF corresponding to your receiver (ACCESS,
ACCST D16).
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Overview
(Switch Default Settings)
● SA: 3 positions, Short Lever ● SF: 2 positions, Long Lever
● SB: 3 positions, Long Lever
● SG: 3 positions, Short lever
● SC: 3 positions, Long Lever ● SH: 2 positions, Momentary;
● SD: 3 positions, Short Lever Long Lever
● SE: 3 positions, Short Lever
You can choose the Switch and define its positions in the
Input and Output Map screen.
1. Micro SD card is not provided with shipment.
2. USB port is for upgrading, reading/writing Micro SD cards
and internal memory of radio contents and charging (Includes
USB cable in packge but without the adapter).
3. Smart Port is for firmware upgrade for all FrSky S.Port
devices.
Infinity 24 Antenna
Recommended 2.4GHz optional high-gain antenna for
achieving higher performance and further range.
+X
+Z
+Y
SMA Connector
Contact us: frsky@frsky-rc.com
01140108
Use the navigation keys to enter the RF system menu.
Contact us: frsky@frsky-rc.com
01140108
FrSky 2.4GHz ACCESS Horus X10 Express/Horus X10S Express Manual

Cautions on handling External antenna.

Do not touch the antenna during operation. Doing so could interfere with transmission, causing a crash.
Do not carry the transmitter by the antenna. The antenna wire could break and prevent transmission.
Do not pull the antenna forcefully. The antenna wire could break and prevent transmission.

Specifications

Dimension: 213*225*112 mm (L*W*H)
●
Weight: Horus X10 Express: 900g (without battery)
●
Horus X10S Express: 950g (without battery)
Operating system: FrOS / OpenTX
●
Internal RF module: ISRM-S-X10E
●
Number of Channels: 24 channels
●
Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
●

Features

High-speed module digital interface with installed
●
ACCESS protocol
Supports spectrum analyzer function
●
Supports wired training function
●
New PARA wireless training system
●
- High-speed training system with a lower latency
- Compatible with FrSky Free Link App and AirLink S
via mobile devices
Dual internal antennas and a single detachable external
●
antenna work in unison to create a robust link
Antenna detection and SWR warning
●
Notes and Warnings for Battery & Charger
About USB 2S Li-battery balance charging :
The Green Power indicator LED state:
Led on: charging Led off: charge end
Please use the following type of battery if you do not want to use the battery slot.
Olny 2S Li-Ion/Li-Po battery
PH2.54-XH-3Y
LiFePO battery is not supported.
4
Battery compartment size: 76*36.5*18.6mm（L*W*H)

ETHOS Operating System

Create the model

Step 1: First go to System Settings, then select model select click the plus sign to select model type.
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
FrSky 2.4GHz ACCESS Horus X10 Express/Horus X10S Express Manual
Step 2: Set the Channel Range
The ISRM module supports 24 channels. the channel range is configurable, and it needs to be double checked
before use.
Step 3: Set the Receiver Number
Step 4 : Registration
In ACCESS model, select the STATE [Register] into Registration status on radio side. Then Press the F/S button
and power on your receiver, and select the "RX Name XX" and [REGISTER] to complete the Registration process
then power down the receiver.
Step 5: Automatic binding (Smart Match )
Move the cursor to Rx1[BIND],and select it, power your receiver, select the RX, and complete the process, the
system will confirm "Bind succeed". (Pressing the "F/S" button is not required in ACCESS to Bind. Please the
receivers manual for details).
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Operating Temperature: -10℃~60℃ (14℉~140℉)
●
Operating Current: 240mA@7.4V (typ)
●
Charging Current: ≤1A ±200mA
●
USB Adaptor Voltage: 5V+0.2V
●
USB Adaptor Current: >2.0A
●
Backlit LCD resolution: 480*272
●
Compatibility: ACCST D16 and ACCESS receivers
●
Industrial LCD: 480*272 readable outdoor color screen
●
Supports 2S Li-battery balancing charge with mini USB
●
interface
Easily accessible battery compartment (*Batteries not
●
included)
M10 hall sensor gimbals and extendable stick ends
●
(Horus X10 Express)
MC12P all CNC digital higher accuracy ten bearings hall
●
sensor gimbals and extendable stick ends (Horus X10S
Express)
Led flash: charge fault
Note:
Battery + 1. Charge the battery with the USB adapter
Battery Balance
(Voltage:5V+0.2V Current:＞2.0A) when
Battery -
you use the USB charging function.
2. The lower the initial charging voltage, the
better the charging effect is when the
voltage difference between the two cells
exceed 50 mV.
Contact us: frsky@frsky-rc.com
01140108
The system will assign you the receiver a number
automatically, when you create a new model, and this
can be easily changed. The range of the Model ID is
00-63, with the default number being 01. Once the
receiver is set to the desired number and is bound to the
Horus X10 Express/Horus X10S Express, the bind
procedure will not need to be repeated unless the
receiver number is changed. At this point, set the
receiving number to your preferred number and repeat
the binding operation.
