3Com OfficeConnect 3C892 Setting Up page 7

Setting up the isdn lan modem on a static network

Hide thumbs Also See for OfficeConnect 3C892:

2 From the Program manager, click Network.

3 From the Network group box, click Network Setup.

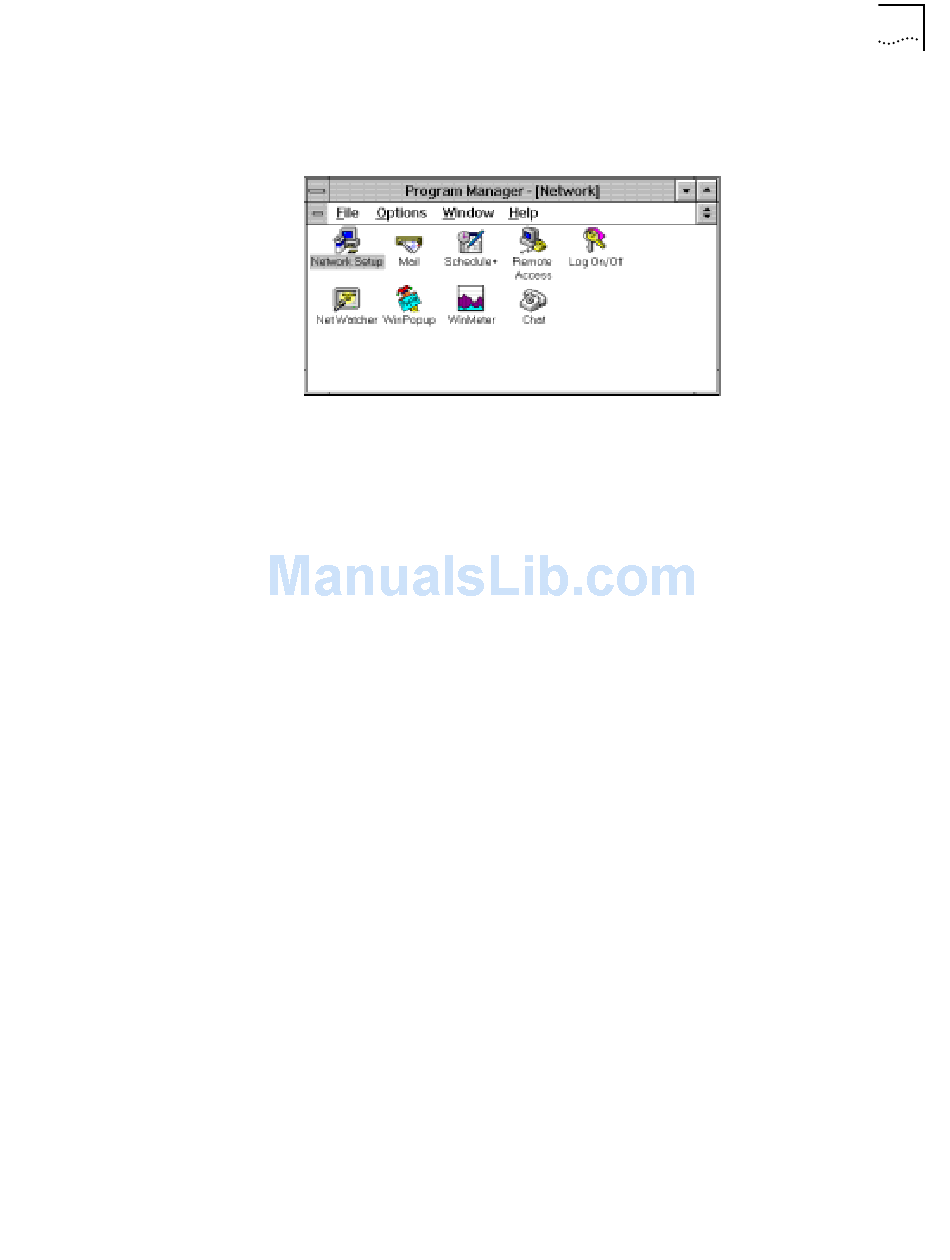

Figure 9 Network Group Box

4 From the Network Setup dialog box, click the Drivers button.

5 From the Network Drivers dialog box, click Add Protocol.

6 Select Unlisted or Update Protocol and then click OK.

7 From the Install Driver dialog box, enter the path to the MS_TCP directory.

For example, if you installed MS TCP on your C: drive in a directory called

MSTCP, you would enter C:\MSTCP.

8 Select MS TCP/IP-32.X and then click OK to install.

9 After the installation is complete, click Close.

10 Click OK.

11 From the MS TCP/IP Conﬁguration dialog box, check the Auto Conﬁguration

check box and then click OK.

12 Restart your PC to allow the changes to take effect.

Setting Up TCP/IP for Windows and Macintosh
