3Com OfficeConnect 3C892 Setting Up page 6

S U ISDN LAN M
6
ETTING P THE
TCP/IP Setup Using
Windows 3.11
O A S N
ODEM N TATIC ETWORK
6 You are then prompted to insert your installation CD-ROM. Insert the Windows
NT 4.0 CD ROM and then click Continue.
If you have Remote Access Service (RAS) installed on your PC after the
appropriate files are copied to your PC, a message box asks whether or not you
would like TCP/IP installed for RAS. If you select Yes, you must select the device
you want to access remotely and then click Close.
7 After the appropriate files are copied to your PC, you will see TCP/IP Protocol
listed in the Network Protocols group box, as shown in Figure 8.

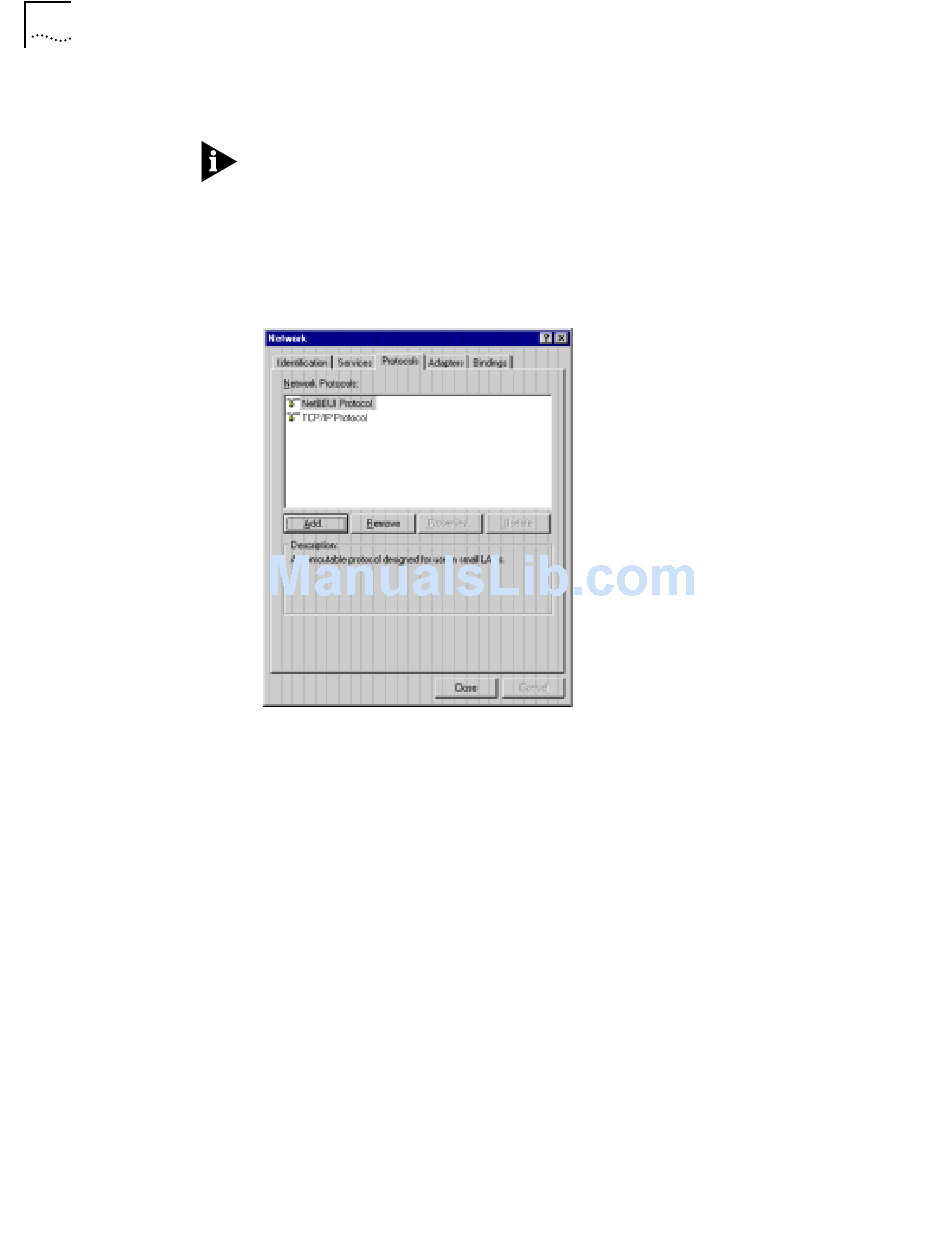

Figure 8 Network Protocols Window
8 Click Close.
The Microsoft TCP/IP Properties window appears.
9 From the Adapter drop down list box, select the Ethernet card that is connected
to the ISDN LAN modem.
10 For static IP addresses, Specify an IP Address should be selected and an IP
address and subnet mask for your computer should be entered. (You can obtain
this information from your system administrator or ISP.)
11 Click OK.
12 Click Yes to restart your PC and allow the changes to take effect.
If you are using Windows 3.11, a TCP/IP stack is not provided as part of the
operating system. If you do not have a TCP/IP stack, you can use MS _TCP
which is provided on the 3Com Companion Programs CD-ROM.
Setting up TCP/IP Using MS TCP
To set up MS_TCP, do the following.
1 Install MS_TCP, located on the 3Com Companion Programs CD-ROM, onto your
hard drive.
