Mounting the Router
on a Vertical Surface
R
OUTER
Ethernet cable
■
Console cable
■
AUX cable
■
Power supply, power cord, and chassis ground wire
■
Equipment
■
A router
Ethernet 10/100BASE-T Hub or LAN switch
Channel service unit/data service unit (CSU/DSU) or other data communications
equipment (DCE) equipment (such as a modem)
Configuration terminal, such as a PC
The Router 3000 can be mounted onto a vertical surface using two pan-head
screws aligned to the brackets on the base of the router. To mount the router on a
vertical surface, do the following:
1 Mark the bracket positions on the wall.
2 Screw two pan-head screws into the marked positions on the wall or other vertical
surface, so that the screws match the position of the two brackets on the base of
the router. Each screw should project 0.6 cm (.25 in) from the wall or the surface.
3 Make sure that the front panel LEDs are easily visible to the operator.
4 Hang the router on the screws by the two brackets.
5 Secure the external power supply of the router to prevent the power cords from
detaching.
See Figure 9 and Figure 10 for illustrations of this procedure.

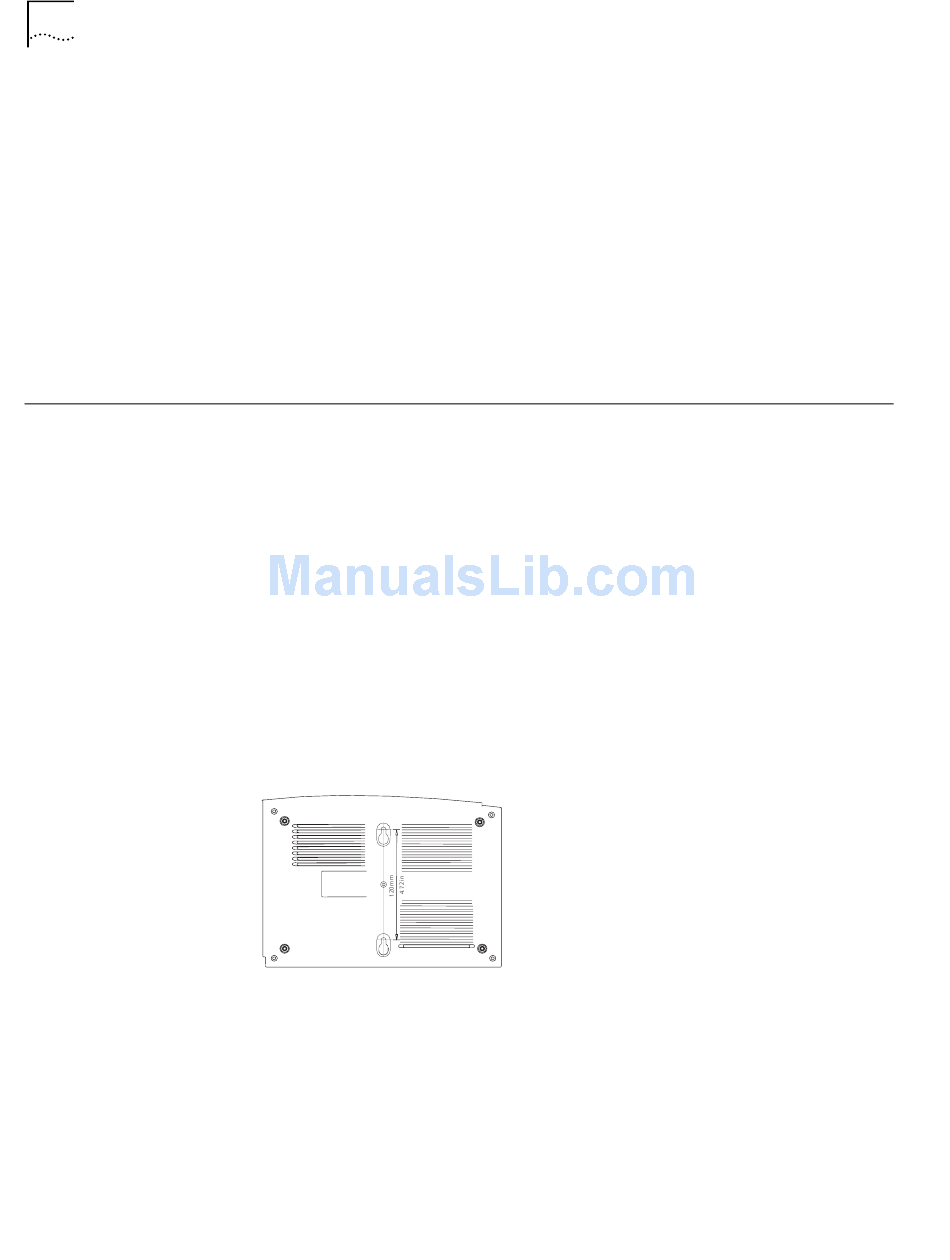

Figure 9 The Bottom of the Router
