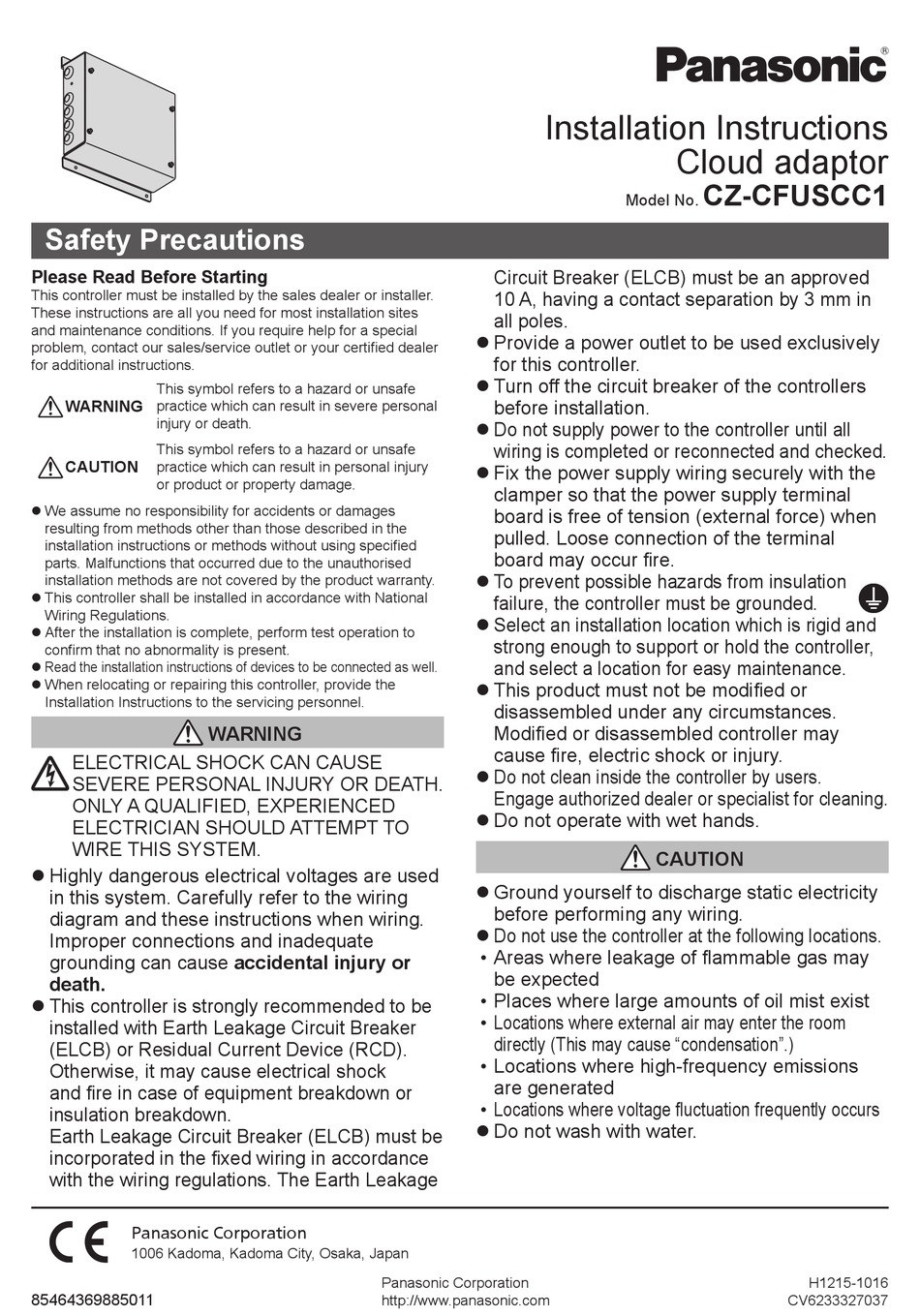

Panasonic CZ-CFUSCC1 Installation Instructions Manual

Safety Precautions
Please Read Before Starting
This controller must be installed by the sales dealer or installer.
These instructions are all you need for most installation sites
and maintenance conditions. If you require help for a special
problem, contact our sales/service outlet or your certifi ed dealer
for additional instructions.
This symbol refers to a hazard or unsafe
WARNING
practice which can result in severe personal
injury or death.
This symbol refers to a hazard or unsafe
CAUTION practice which can result in personal injury
or product or property damage.
 We assume no responsibility for accidents or damages
resulting from methods other than those described in the
installation instructions or methods without using specifi ed
parts. Malfunctions that occurred due to the unauthorised
installation methods are not covered by the product warranty.
 This controller shall be installed in accordance with National
Wiring Regulations.
 After the installation is complete, perform test operation to
confi rm that no abnormality is present.
 Read the installation instructions of devices to be connected as well.
 When relocating or repairing this controller, provide the
Installation Instructions to the servicing personnel.
ELECTRICAL SHOCK CAN CAUSE
SEVERE PERSONAL INJURY OR DEATH.
ONLY A QUALIFIED, EXPERIENCED
ELECTRICIAN SHOULD ATTEMPT TO
WIRE THIS SYSTEM.
 Highly dangerous electrical voltages are used
in this system. Carefully refer to the wiring
diagram and these instructions when wiring.
Improper connections and inadequate
grounding can cause accidental injury or
death.
 This controller is strongly recommended to be
installed with Earth Leakage Circuit Breaker
(ELCB) or Residual Current Device (RCD).
Otherwise, it may cause electrical shock
and fi re in case of equipment breakdown or
insulation breakdown.
Earth Leakage Circuit Breaker (ELCB) must be
incorporated in the fi xed wiring in accordance
with the wiring regulations. The Earth Leakage
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
85464369885011
WARNING
Panasonic Corporation
http://www.panasonic.com
Installation Instructions
Model No.
Circuit Breaker (ELCB) must be an approved
10 A, having a contact separation by 3 mm in
all poles.
 Provide a power outlet to be used exclusively
for this controller.
 Turn off the circuit breaker of the controllers
before installation.
 Do not supply power to the controller until all
wiring is completed or reconnected and checked.
 Fix the power supply wiring securely with the
clamper so that the power supply terminal
board is free of tension (external force) when
pulled. Loose connection of the terminal
board may occur fi re.
 To prevent possible hazards from insulation
failure, the controller must be grounded.
 Select an installation location which is rigid and
strong enough to support or hold the controller,
and select a location for easy maintenance.
 This product must not be modifi ed or
disassembled under any circumstances.
Modifi ed or disassembled controller may
cause fi re, electric shock or injury.
 Do not clean inside the controller by users.
Engage authorized dealer or specialist for cleaning.
 Do not operate with wet hands.
 Ground yourself to discharge static electricity
before performing any wiring.
 Do not use the controller at the following locations.
• Areas where leakage of fl ammable gas may
be expected
• Places where large amounts of oil mist exist
• Locations where external air may enter the room
directly (This may cause "condensation".)
• Locations where high-frequency emissions
are generated
• Locations where voltage fl uctuation frequently occurs
 Do not wash with water.
