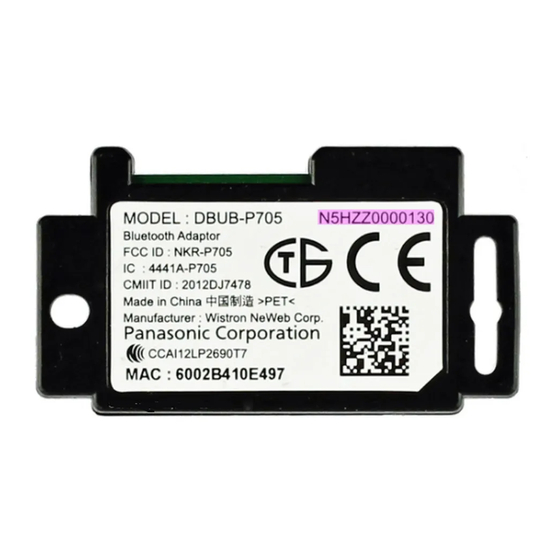

- Page 1 DBUB-P705 Bluetooth Adapter User’s Manual This document provides safety instructions and describes the specifications. Read this document carefully before installing to ensure your safety and product performance.
-
Page 2: Federal Communication Commission (Fcc) Interference Statement
Federal Communication Commission (FCC) Interference Statement This device complies with Part 15B and 15C of FCC Rules and RSS-210 of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device. -
Page 3: Industry Canada Statement
manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Industry Canada statement: Industry Canada statement: Industry Canada statement: Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. - Page 4 用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 Caution: Be aware of the following limits before using the Bluetooth Adaptor. Do not subject the Bluetooth Adaptor to high temperatures, direct sunlight or moisture. Do not bend, or subject the Bluetooth Adaptor to strong impacts. Do not disassemble or alter the Bluetooth Adaptor in any way. Do not attempt to install the Bluetooth Adaptor in any incompatible device.
-
Page 5: Setup The Bluetooth Connection
Setup the Bluetooth connection The Bluetooth adapter is pre-installed in the TV set. No extra installation steps are required for users. Follow the steps below to start using the feature of this adapter: 1. Turn on your TV. 2. Switch to the channel that delivers 3D contents. If you are watching a disc with 3D contents, you will also need to activate your player for playing the disc. -
Page 6: Specification
Specification Power supply 105mA DC 3.3V , Antenna Tx 1, Rx 1 Host Interface USB 2.0 + GPIO x1 Standard Compliance Bluetooth 3.0 Frequency Range 2.4 GHz (2.40GHz-2.4835GHz) ・GFSK ・Pi/4 QPSK Modulation ・8DPSK -88 dBm(typ.) GFSK, 0.1%BER Receiver Sensitivity -85 dBm(typ.) for pi/4-DQPSK, 0.01%BER Transfer rate (standard) 3.0Mbps(MAX, Theoretical Value) Output Power...
