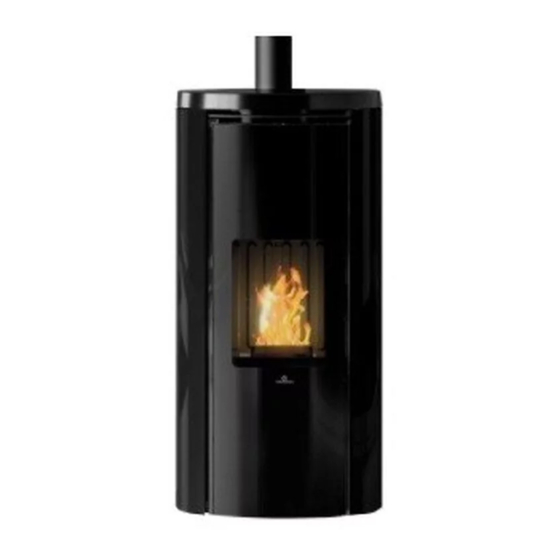

EdilKamin CELIA Air Tight Installation, Use And Maintenance Manual

Hide thumbs

Table Of Contents

Quick Links

CELIA Air Tight

CELIA Air Tight C

PELLET STOVE

Installation, use and maintenance

page 2

Table of Contents

Need help?

Do you have a question about the CELIA Air Tight and is the answer not in the manual?

Questions and answers

Summary of Contents for EdilKamin CELIA Air Tight

Page 1 CELIA Air Tight CELIA Air Tight C PELLET STOVE Installation, use and maintenance page 2...
Page 2: Table Of Contents
CELIA AIR TIGHT C/ CELIA AIR TIGHT Performance declaration (DoP - EK n° 191) Moreover, the company hereby declares that: the CELIA AIR TIGHT C/ CELIA AIR TIGHT wood pellet stoves satisfy the requirements of the following European directives: 2014/35/EC - Low Voltage Directive...
Page 3 If you lose it, • the declaration of conformity given to you by the installer. you can request a copy from your dealer or download it from www.edilkamin.com. The warranty conditions are given in the warranty certificate accompanying the product.
Page 4: Safety Information
• Blocking the aeration vents and air refer to the warranty certificate inside the intakes in the room. DO NOT BLOCK product: specifically, neither Edilkamin nor THE AERATION VENTS OR FLUE. Risk the retailer are liable for damage resulting of smoke returning into the room with from incorrect installation or maintenance.
Page 5: Dimensions
DIMENSIONS DIMENSIONS (cm) Celia Air Tight Ø 8 cm smoke outlet Ø 6 cm air intake Celia Air Tight C Ø 8 cm smoke outlet Ø 13 cm coaxial USER/INSTALLER...
Page 6: Technical Data
Stand by absorption Power Absorbed power on ignition 365 W Remote control frequency (provided) 2,4 GHz Protection rating Fuse 4 AT, 250 Vac 5x20 EDILKAMIN s.p.a. Reserves the right to modify the product without notification in the inte- rests of improvement. USER/INSTALLER...
Page 7: Unpacking
UNPACKING UNPACKING AND PREPARATION Packing employed materials are not toxic or harmful Packing employed materials are not toxic or harmful and do not require specific disposal. and do not require specific disposal. Storage, disposal or possible recycling must be Storage, disposal or possible recycling must be provided by the user in compliance with relative provided by the user in compliance with relative applicable laws.
Page 8 UNPACKING DO NOT REMOVE THE PRODUCT FROM THE PALLET BEFORE OPENING THE DOOR AND LOOSENING THE SCREWS. THE DRAWINGS ARE FOR GUIDANCE ONLY, USEFUL FOR THE INSTALLATION, BUT THEY MAY NOT REFER TO THE SPECIFIC MODEL. INSTALLER...
Page 9: Installation
• The room must have a volume of at least 30 m Contact the authorised Edilkamin Technical Assistance • The floor must be able to bear the weight of the Centre. product and its accessories* (see the note in the paragraph on the heat protection) •...
Page 10 INSTALLATION INSTRUCTIONS INSTRUCTIONS SMOKE SMOKE THE FUMES DUCT THE FUMES DUCT DISCHARGE DISCHARGE WITH WITH WITHOUT WITHOUT • Further to the general prescriptions for the fumes CONCENTRIC PIPE CONCENTRIC PIPE duct and flue, the fumes duct: • may not be made of flexible metal material •...
Page 11 INSTALLATION INTUBATED SYSTEM INTUBATED SYSTEM: Further to the general prescriptions for the fumes duct and flue, the intubated system: • must operate in negative pressure; • must be open to inspection; • must observe local regulations. THE CHIMNEY POT THE CHIMNEY POT (In every country and specially in France, check on the specific waiver conditions) •...
Page 12 INSTALLATION COMBUSTION AIR INTAKE USE OF CONCENTRIC PIPES USE OF CONCENTRIC PIPES The inflow of necessary air for combustion, of air for Without prejudice to the general instructions, you can glass cleaning and heating air renewal must come use concentric pipes (which provide for the passage of from the outside smoke inside and the passage of the combustion air into the external circular ring).
Page 13 The electrical system must be compliant; check the operation of the earth in particular. Edilkamin is not responsible for malfunctions resulting from an improperly earthed system. The power line must be of adequate section for the power of the appliance.
Page 14 USER INSTRUCTIONS FIRST IGNITION (COMMISSIONING) PHASES PELLET LOADING • Make sure you have read and understood this Gently slide the top until the end stop to load pellet. manual Open the inner hatch and just pour pellet making sure • Remove all flammable materials from the appliance not to spill it out (manuals, labels, etc.).
Page 15: Instructions For Use
• SAVE PANEL: panel used for the on/off functions; power setting By purchasing the Edilkamin optional elements included in the range: • UMTS MODEM: used for managing a few functions, even outside of home, by means of a mobile telephone By purchasing the non-Edilkamin optional elements: •...
Page 16 (operations not protected by password) • installer (operations with dedicated password because any errors can jeopardise the product’s operations and SECURITY) • Edilkamin technical assistance centre (operations with dedicated password because any errors can jeopardise the product’s operations and SECURITY) USER...
Page 17 This only refers to the remote control, not the product itself. In normal use, the remote control’s batteries should last a year. This duration is for illustrative purposes only. Edilkamin and the reseller will not consider claims for battery life under any circumstances. RELAX...
Page 18 USER INSTRUCTIONS: REMOTE CONTROL current room temperature target room temperature Bluetooth communication present between the stove and the circuit board. If there is no communica- tion, the symbol disappears. Wi-Fi communication of the product towards the router. If there is no communication, the symbol disap- pears.
Page 19 USER INSTRUCTIONS: REMOTE CONTROL Visualisation of the status of the fan(s). If the activation fume temperature has not been reached, it will not display any symbol. SPEED OFF SPEED 1 SPEED 2 SPEED 3 SPEED 4 SPEED 5 AUTOMATIC The stand-by function (where present and active) has caused the product to switch off. It does NOT indicate that the function is enabled.
Page 20 USER INSTRUCTIONS POSSIBLE STATUSES of the product - OFF STATE The product is “deactivated” and will not produce heat due to manual switching off using the ON/OFF button on the remote control or due to an external contact (timer, telephone dialler). From the OFF page, press the ON/OFF button for 3 seconds to access the ON page.
Page 21 USER INSTRUCTIONS POWER ON/POWER OFF These operations will take a few minutes, during which the flame must appear or switch off. Simply wait without taking any action. The ON/OFF button is used to manually start the on or off phase. During the switch-on, the display will show the status (CLEANING;...
Page 22 USER INSTRUCTIONS AUTOMATIC and MANUAL setting Press the AUTO/MAN button for a few seconds to switch from manual to automatic mode or vice versa. AUTOMATIC MANUAL In AUTOMATIC mode: Setting of the room temperature (read by the remote control, which should be located in the room where the product is installed).
Page 23 USER INSTRUCTIONS - FAN ADJUSTMENT The setting can be made with the stove turned OFF or ON. If the backlight is switched off, it can be activated by pressing any button. Pressing the button will make SET flash and, instead of the room set-point, the number of the fan being modified will appear (F1).
Page 24 USER INSTRUCTIONS - RELAX FUNCTION Natural convection function (without ventilation) with automatic power limiting. This function is available in all modes: automatic, manual and timer-based. Press and hold the button to activate the Relax function. Its activation on the display will be signalled by the arrow relative to the Relax button. Prolonged pressing of the button will deactivate the function.
Page 25 USER INSTRUCTIONS - AIRKARE FUNCTION This function is available as a standard feature on certain models and as an optional feature on other models: check which model you have. The function, if available, can be activated with the stove either on or off, in any mode (except in alarm mode). The airKare can be activated by pressing the dedicated button Its activation on the display will be signalled by the arrow relative to the airKare button.
Page 26 USER INSTRUCTIONS - EASY TIMER (deferred switching on/off) This function switches the product on/off after a set period from activation of the function. This is convenient if you go to bed and want the product to switch on/off after a few hours (maximum 12 hours). The Easy Timer function can be activated by pressing the dedicated button.
Page 27 USER INSTRUCTIONS TIMER Timer regulation is possible by MENU If the product is in automatic mode, the product works at room temperature otherwise it works with the power. Pressing the button allows for switching from Temperature Timer to Power Timer and vice versa. Pressing the button activates or deactivates the timer (pre-programmed from the app or remote control).
Page 28 USER INSTRUCTIONS - MENU It can be accessed by pressing the button and the first Menu item will appear. The menu items can be scrolled with the buttons and the item can be entered with the button. The menu items appear in the following order: 01 STAND-BY 02 PELLET LOAD 03 CHRONO PROG.
Page 29 USER INSTRUCTIONS - STAND-BY When the Stand-by function is active, in the automatic and timer modes, the product switches off once the temperature set-point is reached and turns on again when the room temperature drops below the chosen value. When the Stand-by function is not active, the product sets itself to minimum power when the temperature set-point is reached.
Page 30 USER INSTRUCTIONS Pressing the button with the value ON activates the function and the display will propose to choose how many minutes must pass before the devices switches off in stand-by mode. (es: 5 minutes) buttons can be used to modify the time and the button to confirm.
Page 31 USER INSTRUCTIONS - PELLET LOAD Allows you to load pellets after the screw feeder has emptied. Useful for the technician during the initial start-up. Available only in the OFF status. Any attempt to activate the function in other statuses will not be allowed. To access the function from the main menu (as indicated in the Menu paragraph above), press the M button.
Page 32 USER INSTRUCTIONS - CHRONO PROG. (TIMER) To access the function from the main menu (as indicated in the Menu section above), press the MENU button. The menu items can be scrolled with the buttons and the item can be entered with the button.
Page 33 USER INSTRUCTIONS Choose the day of the week by scrolling the buttons (you will simultaneously see the programme for that day) and confirm with the button. BUTTON OK SAVE The cursor (rectangular and 2 pixels wide) positions itself on 00:00. The time at the top RH shows the start of the time slot.
Page 34 USER INSTRUCTIONS buttons can be used to modify the temperature levels (OFF – T1 and T2) or the power levels (OFF – P1 and P5). After reaching 23:30 you must go backwards. If you shift by pressing and holding the buttons for more than 2", you copy the previous level onto the next level with a 1/2 h frequency per second.
Page 35 USER INSTRUCTIONS The day of the week will flash again and you can move to the next day Confirm with the following button Pressing the button briefly allows you to exit the programming, but the programme will not activate. To activate it, you must briefly press the button again from the main page.
Page 36 USER INSTRUCTIONS - TEMPERATURE SETTING FOR TIMER T1 – T2 To access the function from the main menu (as indicated in the Menu section above), press the MENU button. The menu items can be scrolled with the buttons and the item can be entered with the button.
Page 37 USER INSTRUCTIONS - DATE AND HOUR (TIME) Can be used to set the current date and time. To access the function from the main menu (as indicated in the Menu section above), press the MENU button. The menu items can be scrolled with the buttons and the item can be entered with the button.
Page 38 USER INSTRUCTIONS - °C/°F SETTING of the temperature scale (centigrade or Fahrenheit degrees) To access the function from the main menu (as indicated in the Menu section above), press the MENU button. You can scroll the menu items with the buttons and enter the item with the following button After entering the °C/°F function, the name of the function appears on the first line of the status bar and the current value on the second line.
Page 39 USER INSTRUCTIONS - LANGUAGE SETTING Selects the language. To access the function from the main menu (as indicated in the Menu section above), press the MENU button. You can scroll the menu items with the buttons and enter the item with the following button After entering the Language Menu item, the name of the function appears on the first line of the status bar and the current value on the second line ITALIANO that means Italian.
Page 40 USER INSTRUCTIONS - DISPLAY It allows you to choose the background of the display, USER...
Page 41 USER INSTRUCTIONS - INFO These readings should only be done when requested by the technician. The technician understands the diagnostic meaning of the messages and values, and may ask you to read them to him/her if you experience problems. To access the function from the main menu (as indicated in the Menu paragraph above), press the MENU button. You can scroll the menu items with the buttons.
Page 42 USER INSTRUCTIONS - DATA Information of the product’s operation log can be scrolled with the buttons. To access the function from the main menu (as indicated in the Menu paragraph above), press the MENU button. The menu items can be scrolled with the buttons and the item can be entered with the button.
Page 43 USER INSTRUCTIONS - ALARM LOG Information of the product’s operation log can be scrolled with the buttons. The alarms are arranged from the most recent to the oldest. ALARMS ALARMS ALARMS Exit with the following button - SCREW FEEDER ON-OFF FOR THE TECHNICIAN ONLY (ON INDICATION OF THE AFTER-SALES DEPARTMENT) AUGER MOT.
Page 44 USER INSTRUCTIONS - TECHNICAL MENU (for TECHNICIANS ONLY) Accessible only to an authorised technician with the appropriate password. NOTES You must enter with the installer password (1111) and access the inappropriate changes can cause installer parameters/settings only the product to seize up Flame type (INST) Pellet type (INST) Chimney sweep function (INST)
Page 45 USER INSTRUCTIONS - PELLET TYPE You can scroll the Technical Menu items with the buttons until you reach “PELLET TYPE” PELLET TYPE You can enter the Pellet Type setting with the following button and modify the value with the buttons. Use the button to exit and return to the Technical Menu INSTALLER...
Page 46 USER INSTRUCTIONS - CHIMNEY SWEEP FUNCTION (ONLY WITH THE PRODUCT ON) It can be used to conduct the requested checks agreed upon with the technician Scroll between the Nominal (Max) or Minimum (Min) function using the buttons and modify the value from OFF to ON with the buttons.
Page 47 USER INSTRUCTIONS - PARAMETERS PLEASE REFER SERVICE SUGGESTIONS You can scroll the Technical Menu items with the buttons until you reach “PARAMETERS”. PARAMETERS Enter the Parameters section with the button: the first parameter will be displayed. PLT LEVEL SENSOR Scroll the parameters with the buttons and modify the value with the buttons.
Page 48 USER INSTRUCTIONS: SAVE PANEL SAVE PANEL network present “power” button O n - O f f button SAVE PANEL can temporarily make up for the absence of a remote control or smartphone, or other product management systems. Controls the product starting from the pressing of the buttons. When the remote control or smartphone re-establishes the communication and sends a command to the product, the remote control or smartphone will once again resume control of the product.
Page 49 USER INSTRUCTIONS: SAVE PANEL The three LEDs on the left indicate the status of the product associated with the display. Panel without control unit Active: LED1 (network present) Stove off Digits = “OFF” active: LED1 Stove being switched on Digits = “ON” active: LED1 and LED2 Stove running Digits = “ON”...
Page 50: Maintenance
MAINTENANCE Before doing any maintenance, disconnect the appliance from the mains. Regular maintenance is essential to keep the appliance in good working order. Failure to service the product properly will prevent it from working properly. Any problems due to failure to service the stove will void the warranty. DAILY MAINTENANCE These jobs should be done with the product off, cold and preferably disconnected from the mains.
Page 51 MAINTENANCE 1. Open the combustion chamber door using the removable handle provided. 2. The burning pot slips into position in its housing. Empty the ash tray and burning pot into a non-flammable container (the ashes may still contain embers and/or hot parts) or vacuum if cold. Vacuum out the interior of the combustion chamber, the bed, and the compartment around the burning pot into which the ash falls.
Page 52 For any spare parts, contact your dealer or technician. flue every 3 months. Using non-original spare parts may damage the appliance and relieves Edilkamin of all liability for You should clean the chimney system at least once a damage resulting such use.
Page 53: Troubleshooting
TROUBLESHOOTING In case of an alarm, an alarm code will appear instead of the room temperature. While the product switches off, the status bar will alternately show “OFF” in large letters and the description of the alarm in small letters. If the alarm occurred with the timer active, only the timer’s activation arrow will remain displayed, while the day’s time schedule will disappear.
Page 54 TROUBLESHOOTING MESSAGE PROBLEM SOLUTION • Check that the combustion chamber door is closed displays when the combustion • Check the regular maintenance of the product air intake is below the set level • Check that smoke discharge and combustion air ducts are clean.
Page 55 TROUBLESHOOTING MESSAGE PROBLEM SOLUTION Room temperature probe failure. The product is operating • Contact the technician in manual mode. Ducting room temperature probe (if present) fault. The • Contact the technician product is operating in manual mode. Ducting room temperature probe (if present) fault.
Page 56 MAINTENANCE: A spanner symbol will appear on the display after 2,000 hours of operation. The product is working, but it must be serviced by an authorised Edilkamin technician. LACK OF COMMUNICATION: In case of a prolonged lack of communication between the stove and the remote control, the Bluetooth transmission icon will disappear as well as the icons transmitted by the circuit board to the remote control.
Page 57 TROUBLESHOOTING PELLETS RESERVE INDICATOR: The function is only available if the pellet level sensor is installed and has been activated. When the level sensor intervenes, the circuit board emits a single “beep” (in any switch-on or work status) and the moving reserve symbol will appear on the display.
Page 58 TROUBLESHOOTING After an interval of roughly 20/30 minutes, which varies depending on the model, the stove switches off due to a shortage of pellets. If the user reloads the stove before the start of the switch-off procedure, the symbol disappears and the stove resumes its normal operation.
