Summary of Contents for Iiyama MD 052W7115

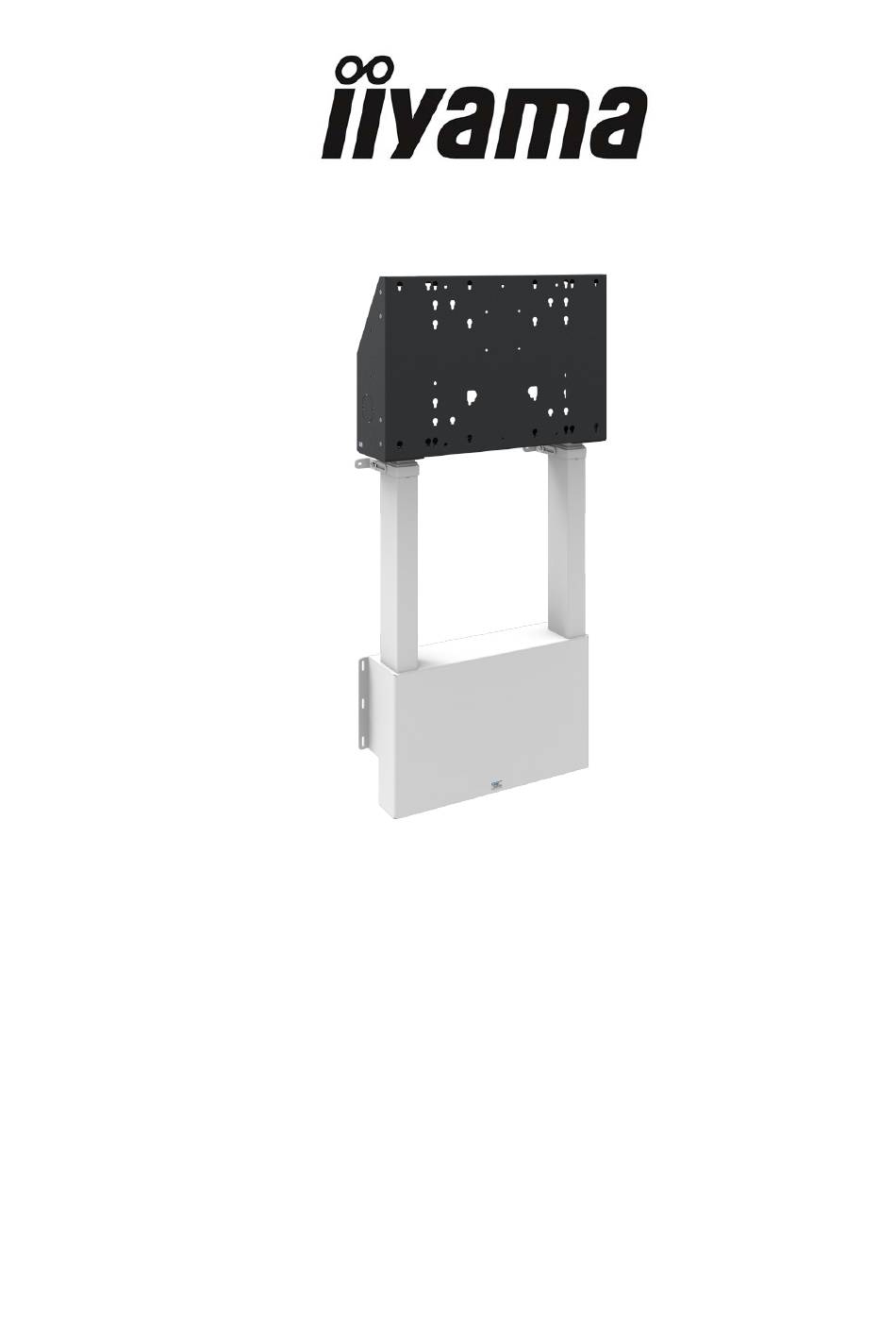

  • Page 1 MANUAL MD 052W7115...
  • Page 2 MOUNTING REGULATIONS Mounting regulations Montagevorschriften WARNING WARNUNG A correct mounting is extremely important and this is not the Eine korrekte Montage ist von größter Bedeutung, und responsibility of SmartMetals Mounting Solutions. Faulty mounting SmartMetals Mounting Solutions kann dafür keine Verantwortung may result in injury to persons or damage to equipment.
  • Page 3: Mounting Instructions

    MOUNTING INSTRUCTIONS MOUNTING INSTRUCTIONS A | M6 Ø15 | 16x E | M8x14 | 4x B | M6x12 | 4x F | M8x25 | 4x I | 200x3.6 | 2x C | M6x25 | 4x G | M8x45 | 4x J | 45x25x1 | 1x D | M6x20 | 16x H | D25xd8.4xh30 | 4x...
  • Page 4 MOUNTING INSTRUCTIONS...
  • Page 5 MOUNTING INSTRUCTIONS...
  • Page 6 MOUNTING INSTRUCTIONS 052.7135 MAX 120 KG B/C/E/F/G/H...
  • Page 7 USER MANUAL DE Achtung! Risiko des Zerquetschens DK Forsigtig! Fare for knusning ES ¡Precaución! Peligro de aplastamiento FI Varoitus! Puristumisvaara FR Attention! Risque d'écrasement GB Caution! Risk of crushing IT Attenzione! Rischio di schiacciamento Down NL Voorzichtig! Beknellingsgevaar PL Uwaga! Ryzyko przygniecenia SE Varning! Klämrisk Do not place objects under the lift system...
  • Page 8 INSTRUCTIONS RESET CONTROLBOX Check the connection Check the connection from the power plug to from the remote to the controlbox the controlbox Connect the Move to lowest power plug position Release Push the down down button for button 30 sec...
  • Page 9: Specification Sheet

    SPECIFICATION SHEET...
  • Page 10: Wiring Diagram

    WIRING DIAGRAM RJ45 8 pins control cable Grey Orange White Blue Green Yellow Violet Cable wire color Function RJ45 8 Pin plug no. Blue + Green Reference 1 Up RJ45 Pin 4 + 5 Blue + Red Reference 1 Down RJ45 Pin 4 + 8 White + Green Reference 2 Up...
