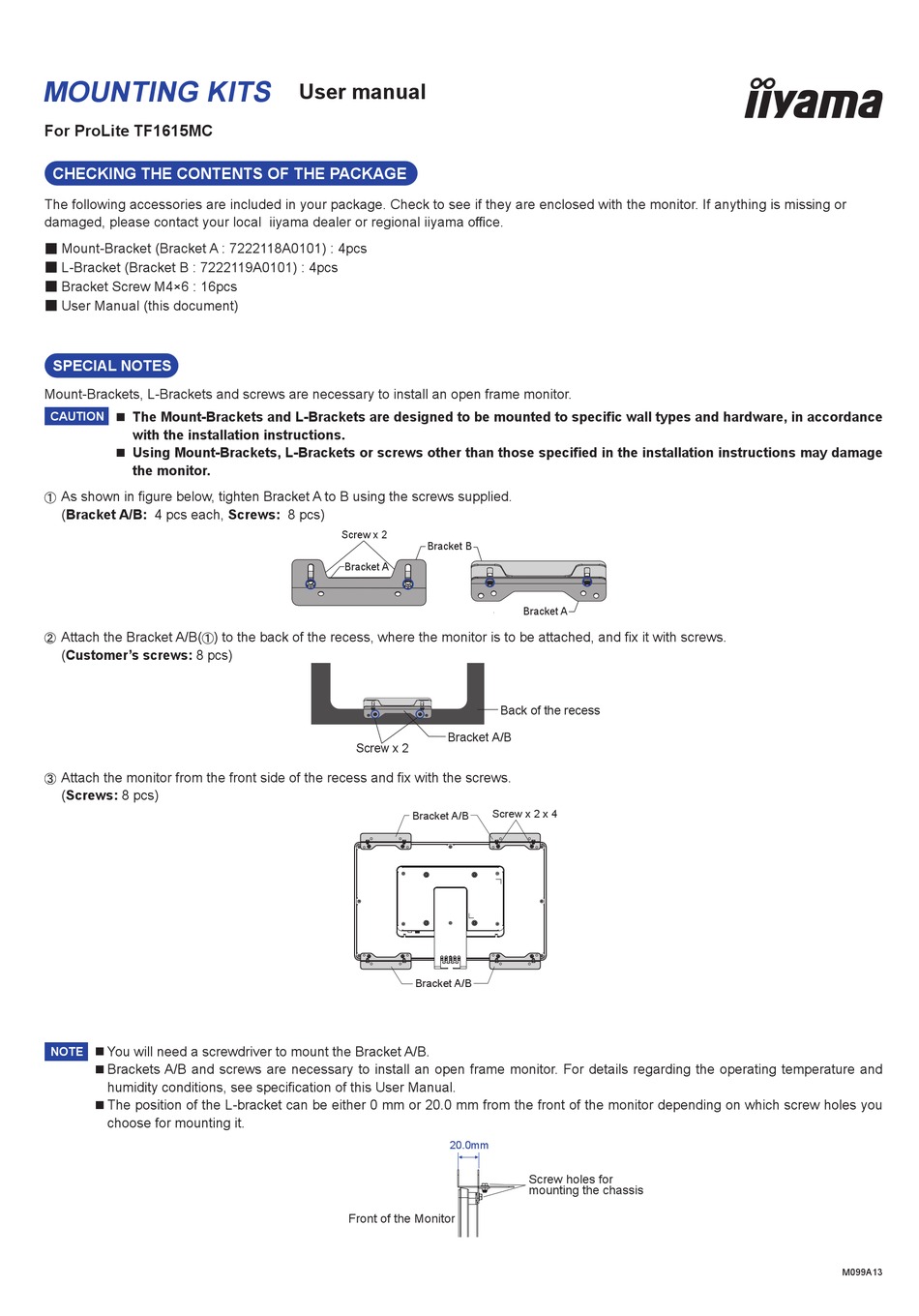

Iiyama ProLite TF1615MC User Manual

MOUNTING KITS
For ProLite TF1615MC

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or
damaged, please contact your local iiyama dealer or regional iiyama offi ce.
■ Mount-Bracket (Bracket A : 7222118A0101) : 4pcs
■ L-Bracket (Bracket B : 7222119A0101) : 4pcs
■ Bracket Screw M4×6 : 16pcs
■ User Manual (this document)

SPECIAL NOTES

Mount-Brackets, L-Brackets and screws are necessary to install an open frame monitor.
 The Mount-Brackets and L-Brackets are designed to be mounted to speci c wall types and hardware, in accordance
CAUTION
with the installation instructions.
 Using Mount-Brackets, L-Brackets or screws other than those speci ed in the installation instructions may damage
the monitor.
As shown in  gure below, tighten Bracket A to B using the screws supplied.
(Bracket A/B: 4 pcs each, Screws: 8 pcs)
Attach the Bracket A/B( ) to the back of the recess, where the monitor is to be attached, and  x it with screws.
(Customer's screws: 8 pcs)
Attach the monitor from the front side of the recess and  x with the screws.
(Screws: 8 pcs)
 You will need a screwdriver to mount the Bracket A/B.
NOTE
 Brackets A/B and screws are necessary to install an open frame monitor. For details regarding the operating temperature and
humidity conditions, see speci cation of this User Manual.
 The position of the L-bracket can be either 0 mm or 20.0 mm from the front of the monitor depending on which screw holes you
choose for mounting it.
User manual
Screw x 2
Bracket B
Bracket A
Screw x 2
Bracket A/B
Bracket A/B
Front of the Monitor
Bracket A
Back of the recess
Bracket A/B
Screw x 2 x 4
20.0mm
Screw holes for
mounting the chassis
M099A13
