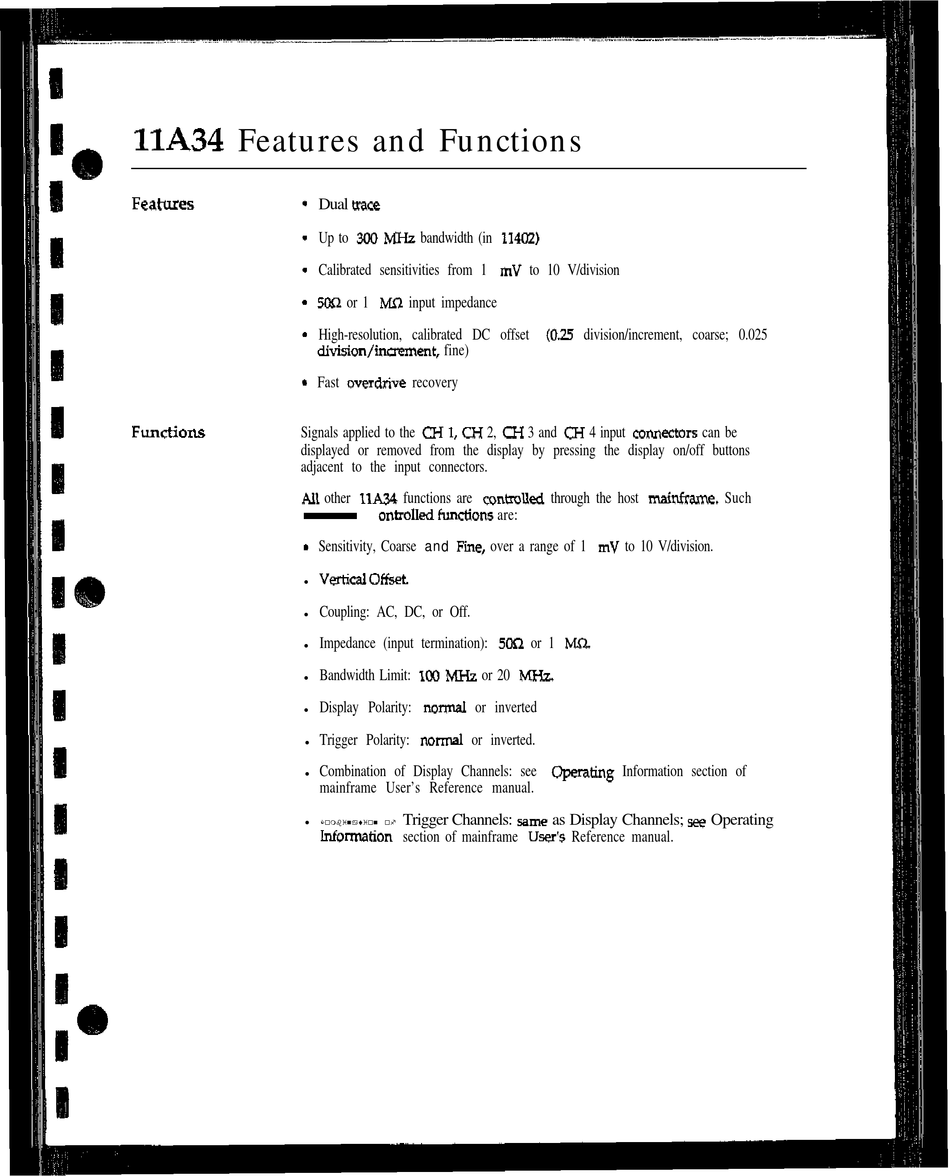

Tektronix 11A34 User Reference Supplement page 4

Dual trace
Up to 300 MHz bandwidth (in 114M)
Calibrated sensitivities from 1 mV to 10 V/division
High-resolution, calibrated DC offset (0.25 division/increment, coarse; 0.025
Fast ovwdrive recovery
Signals applied to the CH I, CH 2, CH 3 and M 4 input co~ectors can be
displayed or removed from the display by pressing the display on/off buttons
adjacent to the input connectors.
and
l
Coupling: AC, DC, or Off.
l
Impedance (input termination): 5On or 1 MC&
l
Bandwidth Limit: 100 MHz or 20 MHz
l
Display Polarity: normal or inverted
l
Trigger Polarity: normal or inverted.
l
Combination of Display Channels: see Operating Information section of
l
mainframe User's Reference manual.
Trigger Channels: same as Display Channels; zee Operating
l Combination of
section of mainframe User's Reference manual.
