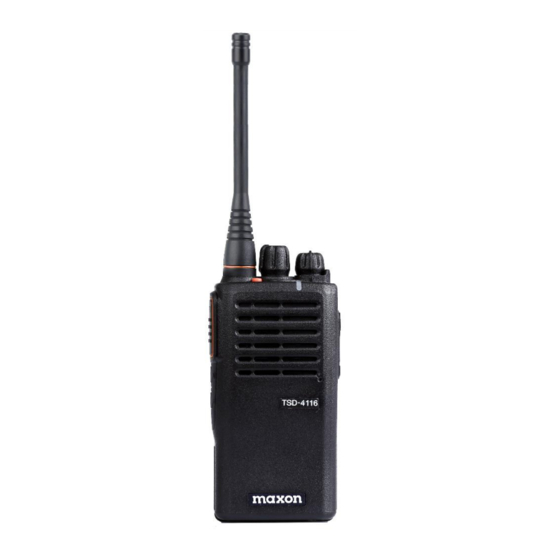

- Page 2 User’s Manual TSD-4000 Series (DMR/Analog) TSD-4116 (VHF) TSD-4416 (UHF) 11535 W. 83rd Terrace, Lenexa, KS 66214 Toll-Free: 800-456-2071 (US Only), 913-859-9515 Website: www.maxonamerica.com...
-
Page 3: Table Of Contents
Table of Contents 1. Specifications 2. Features 3. In-Box Contents 4. Controls & Appearance of TSD-4000 Series radio 5. Battery and Belt Clip Installation and Removal 6. Charging the Battery 7. Function & Operation 8. Precautions for Safe Operation 9. For Safe Operation 10. -
Page 4: Specifications
1. Specifications TSD-4000 Series Radio Specifications TSD-4116: 136 ~ 174 MHz Frequency Range TSD-4416: 400 ~ 470 MHz DMR Tier II TDMA Digital 512 Channels: 16 Channels with 32 Zones per channel Programmable Channels Dimensions (H/W/D) 4.6 x 2.16 x 1.33 (118x55x34 mm) -
Page 5: In-Box Contents
3. In-Box Contents Dual Slot Charger Antenna Radio Battery Belt clip DC Adaptor User Manual Contents subject to change at buyer’s request. -
Page 6: Controls & Appearance Of Tsd-4000 Series Radio
4. Controls and Appearance of TSD-4000 Series Radio Power ON/OFF Volume Knob Turns the radio on and off & adjusts the audio volume level. Channel Knob Change channels by turning the control knob clock-wise or counter-clockwise. 16 Channels can be inputted into each zone. -
Page 7: Battery And Belt Clip Installation And Removal
(Direction arrow #2). 6. Charging the Battery Safety Notes 1. TSD-4000 Series radios use a high-performance, 2600 mAh Li-ion battery (TSA-4260). 2. Please charge the battery before using the radio. Use only the recommended charger for best results. Charging Information Low battery voltage may reduce communication coverage and affect the radio’s performance. - Page 8 www.maxonamerica.com How to Charge 1. Make sure power adaptor for the Dual Slot charger is plugged into the charger and then plug the power adapter for the TSA-0400 charger into a AC120V power outlet. 2. Turn off the radio before charging. 3.
-
Page 9: Function & Operation
7. Function and Operation Function Button & Setting Status LED Descriptions Power up chime is heard then current radio channel selected will be spoken. Power ON/OFF/Volume Orange If radio is on an unprogrammed ON/OFF Control Knob channel, radio will beep. LED will be orange during power up. -
Page 10: Precautions For Safe Operation
www.maxonamerica.com Voice notification Used to disable and then revive radio PC programmable Stun/Revive remotely via another radio function Uses AES Encryption (128, 192, 256) to Encryption PC programmable scramble & unscramble voice Voice notification (Digital Channel function transmissions for privacy. Only) Turns on radio’s microphone to monitor Remote... -
Page 11: For Safe Operation
9. For Safe Operation •FCC RF EXPOSURE COMPLIANCE REQUIREMENTS FOR OCCUPATIONAL USE ONLY The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. -
Page 12: Warranty Statement
. Maxon warrants each new radio product manufactured or supplied by it to be free from defects in material and workmanship under normal use and service for the time period stated, provided that the user has complied with the requirements stated herein.
