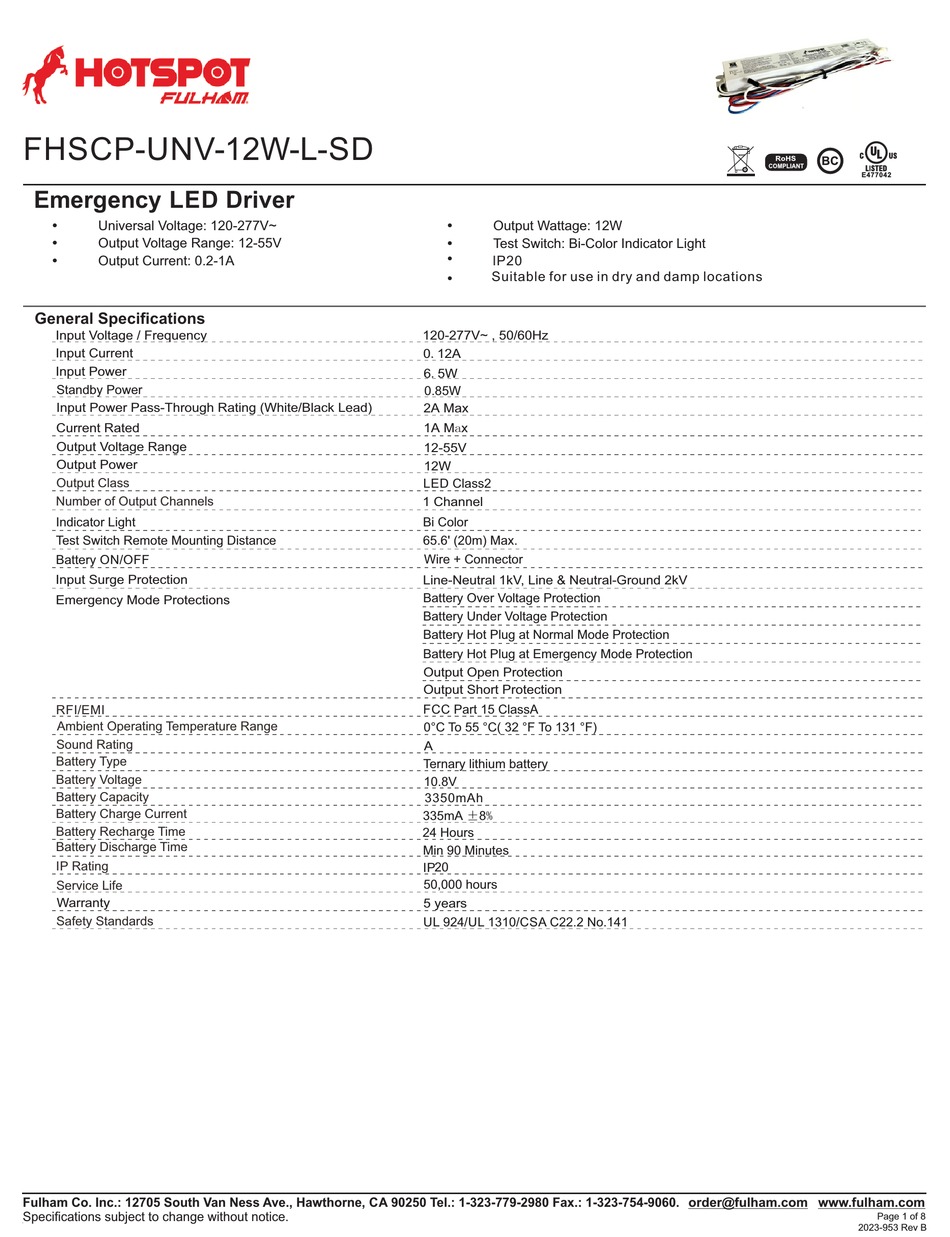

FHSCP-UNV-12W-L-SD
Emergency LED Driver
Universal Voltage: 120-277V~
Output Voltage Range: 12-55V
Output Current: 0.2-1A
General Specifications
Input Voltage / Frequency
Input Current
Input Power
Standby Power
Input Power Pass-Through Rating (White/Black Lead)
Current Rated
Output Voltage Range
Output Power
Output Class
Number of Output Channels
Indicator Light
Test Switch Remote Mounting Distance
Battery ON/OFF
Input Surge Protection
Emergency Mode Protections
RFI/EMI
Ambient Operating Temperature Range
Sound Rating
Battery Type
Battery Voltage
Battery Capacity
Battery Charge Current
Battery Recharge Time
Battery Discharge Time
IP Rating
Service Life
Warranty
Safety Standards
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060.
Specifications subject to change without notice.
Output Wattage: 12W
Test Switch: Bi-Color Indicator Light
I
P20
Suitable for use in dry and damp locations
120-277V~ , 50/60Hz
0.12A
6.5W
0.85W
2A Max
1A Max
12-55V
12W
LED Class2
1 Channel
Bi Color
65.6' (20m) Max.
Wire + Connector
Line-Neutral 1kV, Line & Neutral-Ground 2kV
Battery Over Voltage Protection
Battery Under Voltage Protection
Battery Hot Plug at Normal Mode Protection
Battery Hot Plug at Emergency Mode Protection
Output Open Protection
Output Short Protection
FCC Part 15 ClassA
0°C To 55 °C( 32 °F To 131 °F)
A
Ternary lithium battery
10.8V
3350mAh
335mA ±8%
24 Hours
Min 90 Minutes
IP
20
50,000 hours
5 years
UL 924/UL 1310/CSA C22.2 No.141
E477042
order@fulham.com www.fulham.com
2023-953 Rev B
Page 1 of 8
