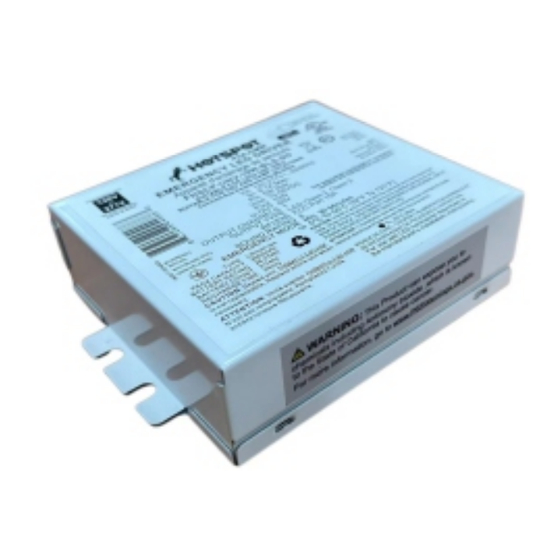

Fulham HOTSPOT FHSCP-UNV-10W-BLS-SD Manual

FHSCP-UNV-10W-BLS-SD
Emergency LED Driver

Universal Voltage: 120-277V~

Output Voltage Range: 15-55V
 Output Current: 181-666mA 
General Specifications
Input Voltage / Frequency
Input Current
Input Power
Maintain Power
Input Power Pass-Through Rating (AC Driver Line)
Max Output Rating (LED+ LED- Terminal)
Output Power
Voltage Range
Current Rated
Number of Output Channels
Input Surge Protection
Test Switch
Protections
RFI/EMI
Ambient Operating Temperature Range
Tc
Sound Rating
Battery Type
Battery Voltage
Pack Capacity
Battery Rating
Battery Count
Battery Recharge Time
Battery Discharge Time
IP Rating
Test Switch Remote Mounting Distance
Service Life
Warranty
Safety Standard
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060.
Specifications subject to change without notice.
 Output Wattage: 10W
 Output Type: LED Class 2

Number of Output Channels: 1 Channel
 Dry and Damp
120-277V~, 50/60Hz
0.1A Max
5W Typical
<0.85W
5A
3A Max
55V Max
10W
15-55V
181-666mA
1Channel
3KV/6KV Ring wave, 1KV/2KV Combine surge
Bi-Color Wet Location Test Switch (FHS-TSTWL-BC)
Output Open Protection
Output Overload Protection
Output Short Circuit Protection
FCC Part15A
0°C To 55°C (32°F To 131F°) (≤10W)
62°C (143.6°F)
A
Lithium-ion
10.95V
2600mAh
28.47Wh
3 Cells
24 Hours
Min 1.5 Hours
IP 20
20' (6m) Max.
50,000 hours @Tc 62°C (143.6°F)
@Tc 62°C (143.6°F) 5 Years From the date of manufacture when properly installed
UL 924, UL 1310, CSA C22.2 No.141
Lithium
E477042
order@fulham.com www.fulham.com
2023-960 Rev A
Page 1 of 7
