Wiring Diagrams

5 Wiring Diagrams
5.1

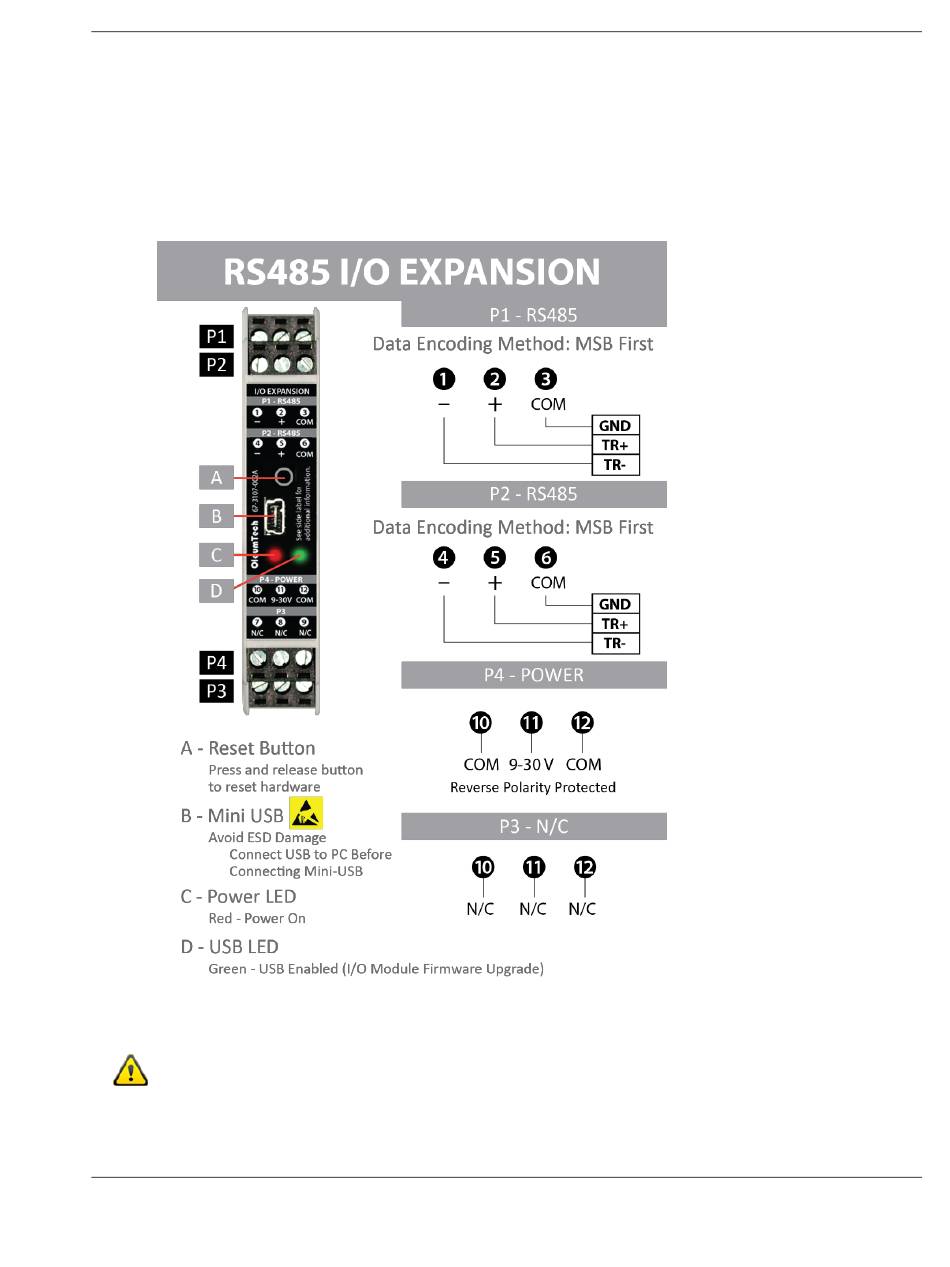

RS485 I/O Expansion Module

(BM-1000-PM1 Shown)
RS485 I/O Expansion Module does not share a common ground with I/O
Modules. All inputs and outputs on I/O Modules provide field isolation.
ProSoft Technology, Inc.
June 10, 2015
Use Solid / Stranded (AWG) 28-12 Wire Gauge
Data Encoding Method
(Word Order):
MSB First
Data Encoding Method
(Word Order):
MSB First
Page 23 of 36
