2.2

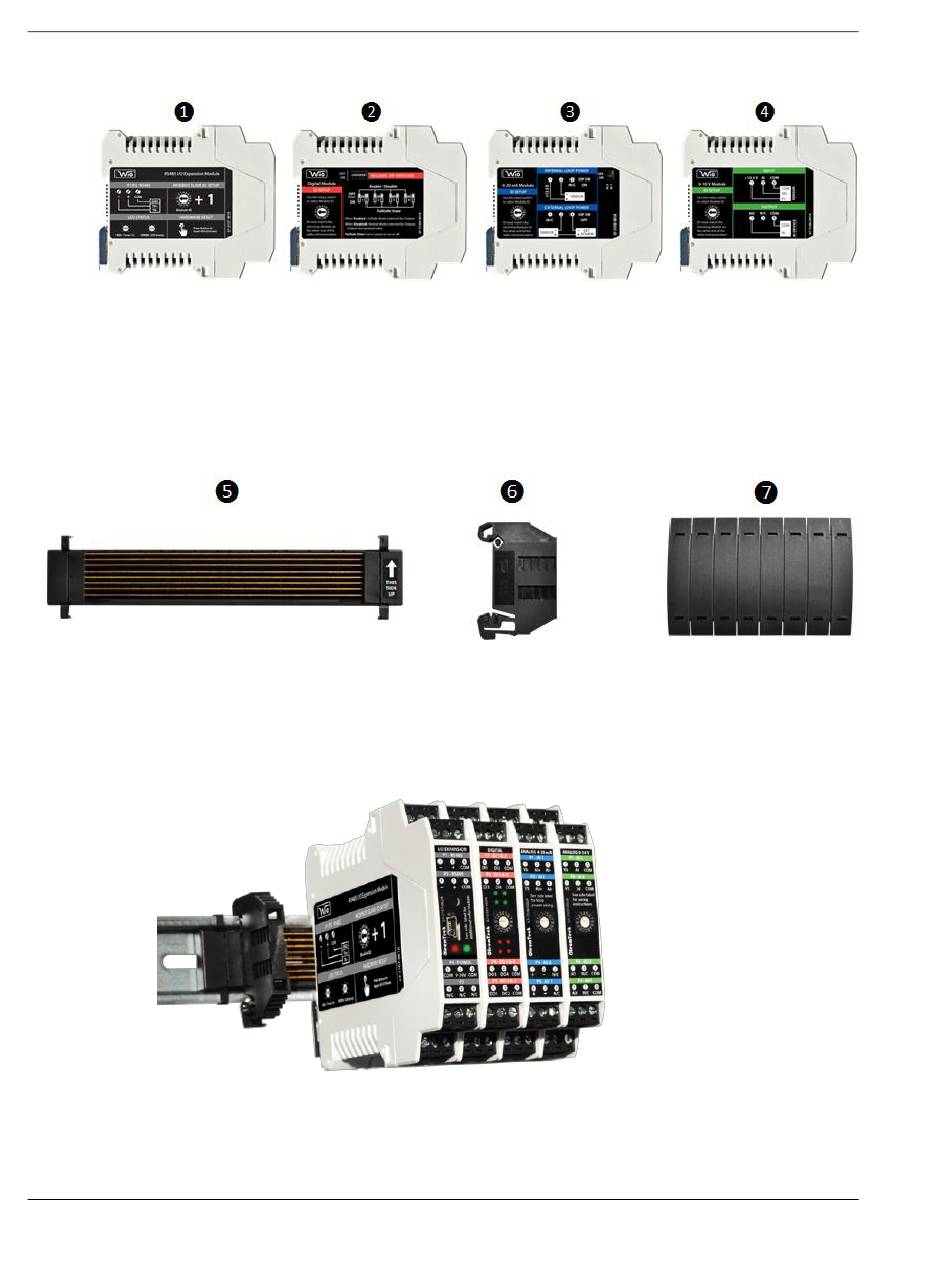

Hardware
1.
RS485 I/O Expansion Module: BM-1000-PM1 (US), BM-0915-RM1 (Int),
BM-2400-RM1 (US), BM-2410-RM1 (Int)
2.
Digital Module: BM-D100-144 (US); BM-D100-244 (International)
3.
4-20 mA Analog Module: BM-A420-122 (US); BM-A420-122 (International)
4.
0-10 V Analog Module: BM-A010-122 (US); BM-A010-122 (International)
5.
DataRail attaches onto 35 mm x 7.5 mm DIN rail (Standard length included in Radio Kit can
support 1 RS485 I/O Expansion Module + 5 I/O Modules)
6.
End Terminal Bracket for securing DataRail and Modules to DIN Rail
7.
DataRail Cover for protecting empty DataRail slots
Page 10 of 36
System Overview
ProSoft Technology, Inc.
June 10, 2015
