Wattstopper
Lighting Control Panel
Quick Start Guide
No:24279 – 03/21 rev. 1
Catalog Number: LP8
Country of Origin: Made in United States
1. Loosen the enclosure's front cover screws (about 1/4"). Do not remove the screws. Lift the
cover and pull it toward you to remove it from the enclosure.
2. Remove the panel interior and set it aside.
3. Mount the panel enclosure to the wall using appropriate hardware (not provided).

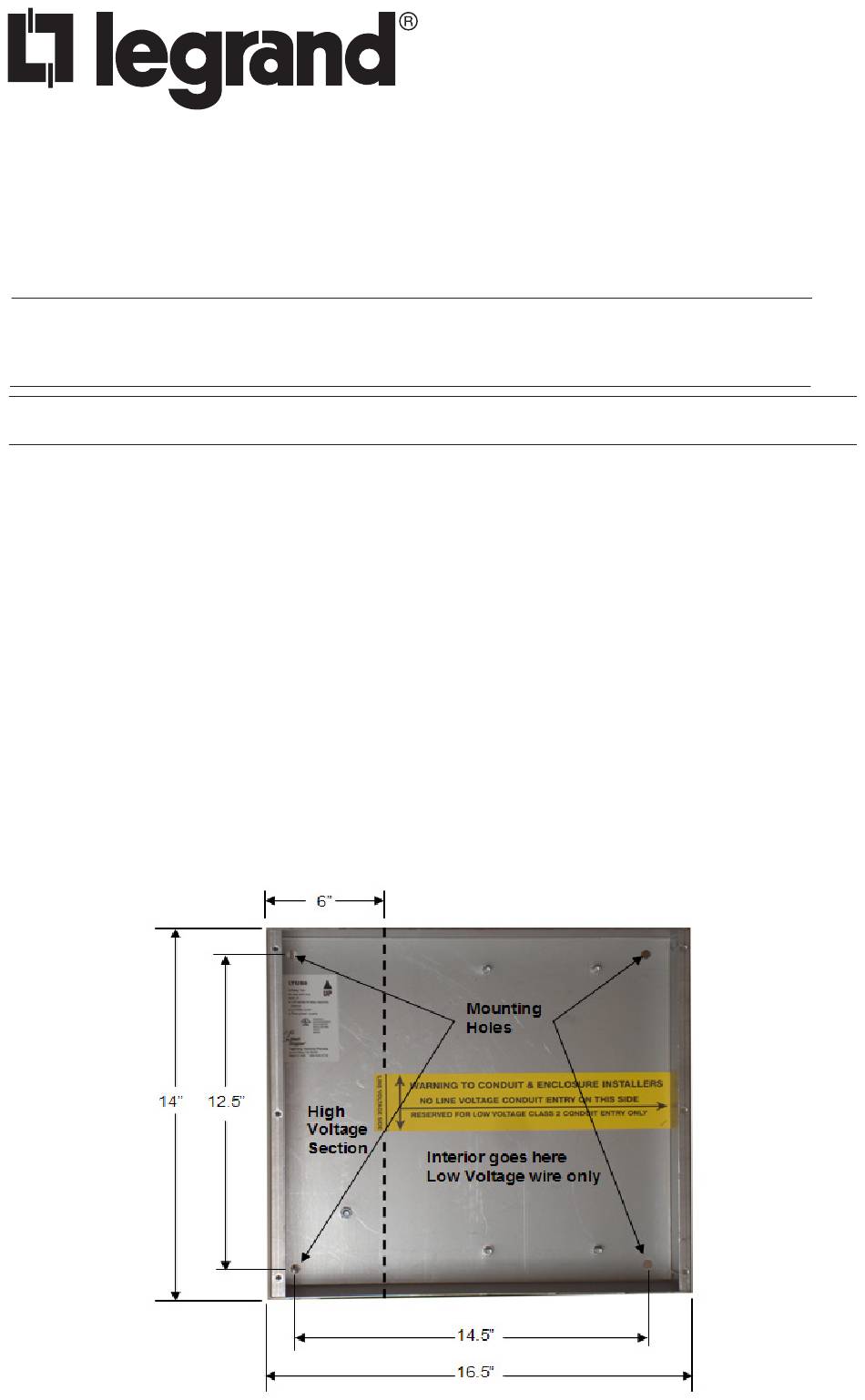

4. Note the entry areas for low and line voltage in the picture. Install conduit into the
designated areas of the enclosure.
5. Reinstall the panel interior using the original hardware.
6. Connect the power supply (lower left corner) to the line voltage power source. Note the
allowable voltages printed on the unit.
7. Note the entry areas for low and line voltage in the picture below. Install conduit into the
designated areas of the enclosure.
8. Reinstall the panel interior using the original hardware.
9. Connect the power supply (lower left corner) to the line voltage power source. Note the
allowable voltages printed on the unit.
®
BAA/TAA Compliant
INSTALLATION
