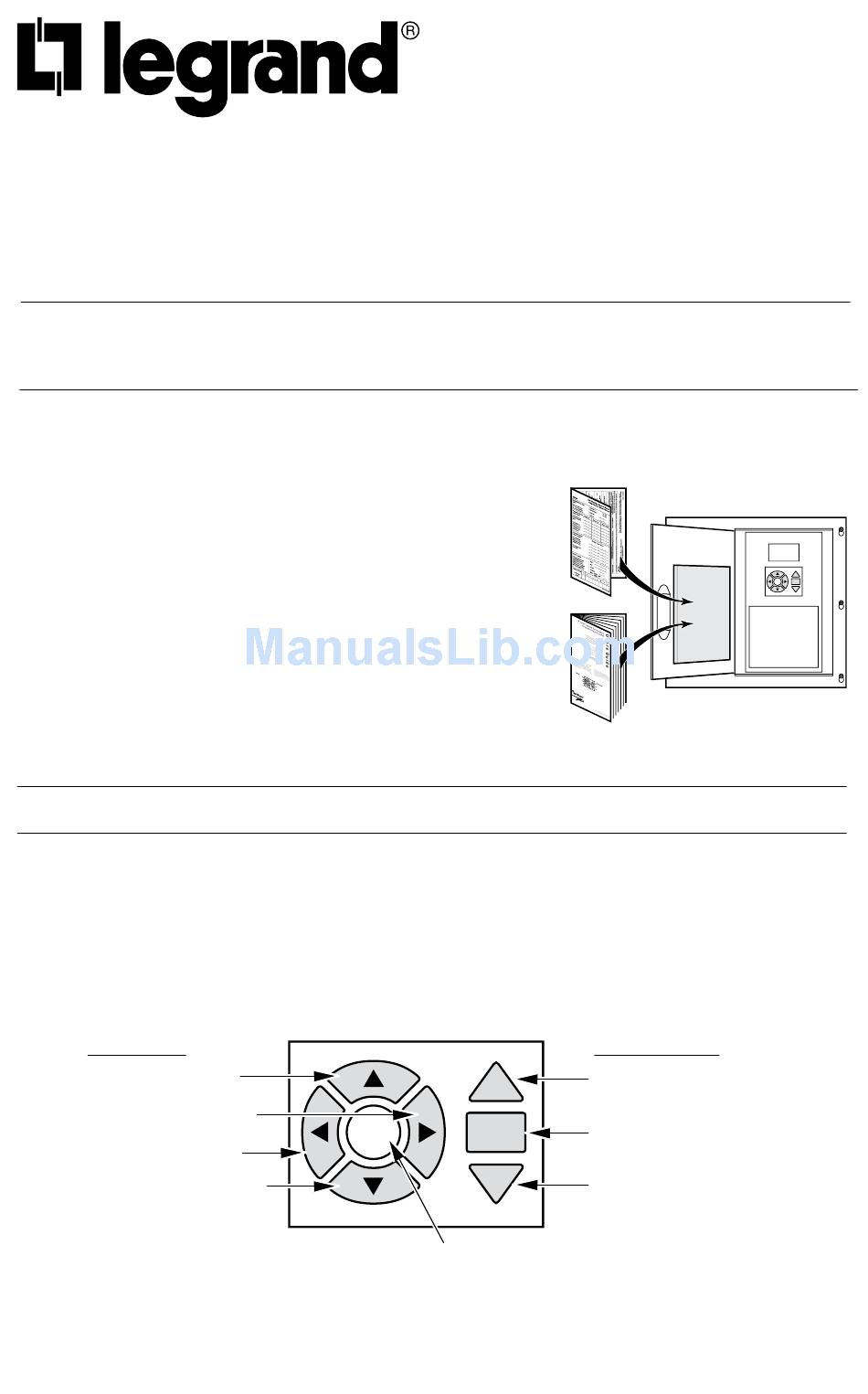

Wattstopper
Lighting Control Panel
User Manual
No:24279 – 12/16 rev. 1
Catalog Number: LP8 and LP24
Country of Origin: Made in China
This guide leads you through programming the LP8 and LP24 series lighting control panels.
Use this guide with the LP8 Programming Record Sheet to keep track of system operation and
programmed parameters.
Keep this manual in the panel enclosure cover door pocket
for future reference, along with the completed Programming
Record Sheet / Relay Schedule and any other manuals or
drawings that apply to the lighting panel installation.
For panel hardware installation, see the Quick Start
Installation Guide.
For wiring instructions, see the Installation and Wiring
Reference.
More information can be found on line at
www.legrand.us/wattstopper.
The left side of the keypad is for
navigating around the screen. This
guide will instruct you to move to the
right, left, up, or down as required.
You can press HELP at any screen for
guidance in making selections.
Navigating
Press to move up
Press to move right
Press to move left
Press to move down
®
THE USER INTERFACE KEYPAD
HELP
Na
vig
atin
Pre
ss
g
to
mo
Pre
ss
ve
to
up
Pre
mo
ve
ss
to
righ
Pre
ss
mo
ve
t
to
mo
left
ve
do
wn
HEL
P
RAIS
Pro
gra
E
mm
SELE
Pre
ing
CT
ss
to
LOW
scr
oll
ER
Pre
up
ss
to
sel
ect
He
lp me
Pre
ss
nu
to
scr
oll
do
wn
The right side of the keypad is for
scrolling through choices and making
selections. This guide will instruct you
to scroll through choices and to make
a selection.
Programming
Press to scroll up
RAISE
Press to select
SELECT
LOWER
Press to scroll down
Help menu
RAISE
HELP
SELECT
LOWER
