Omnitron Systems Technology iConverter 2GXM Quick Start Manual

Management Options iConverter, Serial Agent
Network Management
1: Chassis and Module Management
2: Set Module Name Preferences
Management Module Preferences
3: IP and Control Preferences
4: SNMP Preferences
5: Abandon Preference Changes
6: Save Preference Changes
7: Restore Factory Defaults
8: Restart Management Module
9: Other Networking Features
Management Module Maintenance
10: Firmware Update
11: Set Date/Time
IP Address = 192.168.1.220
Chassis Number = 1
Enter Choice, <H>elp, E<x>it >
Figure D: Command Line Interface Menu Options
The CLI interface allows for the detailed configuration of the module. It is recommended
to configure the module with an IP address associated with the attached network.
Also, SNMP traphost address should be configured if the module is managed with an
SNMP-based Management System. See the 2GXM User Manual for complete
information.
4) VERIFY OPERATION
Once the module has been installed and configured per steps 1 - 3, verify the module
is operational by viewing the LED indicators.
The Power LED indicates the module is receiving power from the chassis.
The Fiber Optic link LEDs
LED Function
indicate the fiber optic
"Legend"
connections have been
Power "Pwr"
established. Verify the Link
Power Supply Status
Mode selection is set to Link
#X
Segment (LS). Until a stable
Port 1
link is established, leave the
Fiber Link Activity
Link Mode configured for LS. "P1"
Chassis Management
After a Link presence is
Master/Slave
"Msr/Slv"
established, the Link Mode
Port 2
selection can be modified.
Fiber Link Activity
"P2"
Omnitron Systems Technology * 140 Technology Dr. * #500 * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
On / Blinking State
Color Off State
Amber No power On: Module has power
On: Power available from
Chassis Power installed Power Supply #X
Amber
Supply not installed Blinking: No power available
from installed Power Supply #X
On: Fiber link is active
Green No Fiber Link
Blinking: Fiber Data Activity
On: Chassis Master
Chassis Slave
Green Blinking: Operating in OAM
Mode
Mode
On: Fiber link is active
Green No Fiber Link
Blinking: Fiber Data Activity
Figure E: LED Indicators
Form 040-08980-002 D 12/07

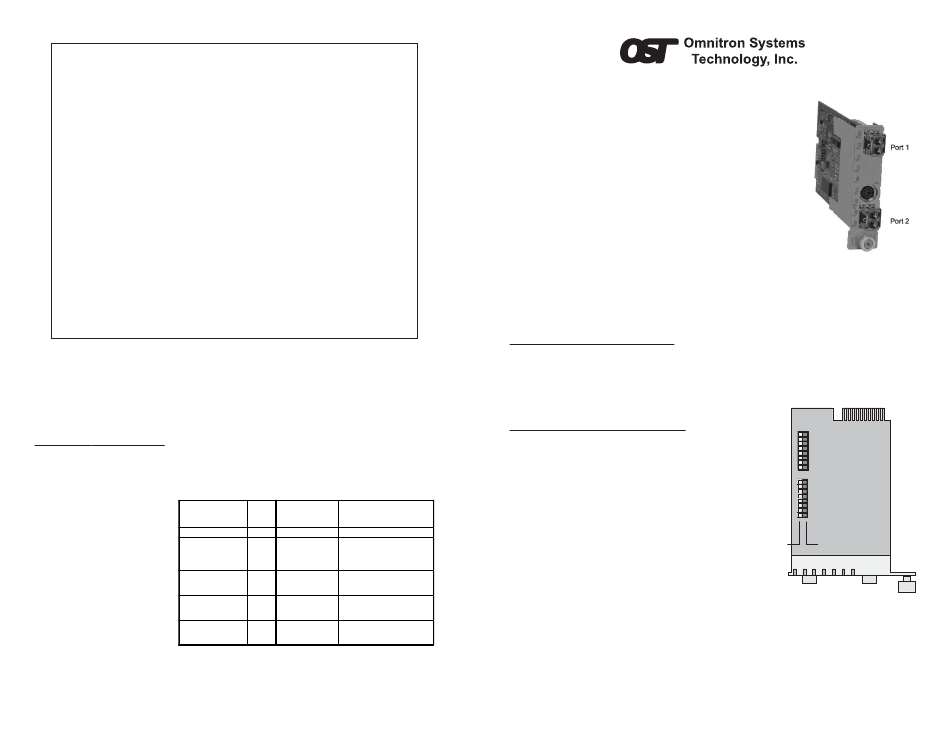

iConverter
2GXM Plug-in Module QUICK START GUIDE
iConverter

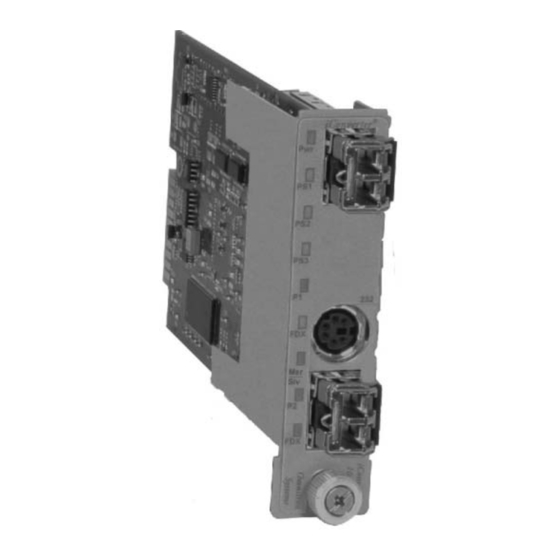

The Omnitron ® 2GXM Network Interface Device
(NID) with integrated management provides Gigabit Ethernet
(1000BASE-X) fiber-to-fiber media conversion.
The 2GXM conforms to Ethernet in the First Mile (EFM) fiber
standards to support Fiber-to-the-X (FTTX) Metropolitan and
Enterprise LAN networks. Built-in Operation, Administration
and Maintenance (OAM) functionality enables the 2GXM to
operate as a managed demarcation point at the customer
premises and network edge, offering Quality of Service
capability.
The 2GXM module can be managed using Omnitron's
NetOutlook TM SNMP Management Software, 3rd Party SNMP
Client, Telnet or the Command Line Interface (CLI).
For more information, including the complete User Manual on the 2GXM Plug-in module,
access Omnitron's documentation download web page to view all relevant documents:
http://www.omnitron-systems.com/downloads.php
INSTALLATION PROCEDURE
1) Configure DIP-Switches
2) Install Module in Chassis and Connect Cables
3) Configure Module via Command Line Interface
4) Verify Operation
1) CONFIGURE DIP-SWITCHES
DIP-SWITCH BANK 1
SW1, SW2 - AUTO/MANUAL NEGOTIATION
"AN/MAN"
When the DIP-switch is in the LEFT Auto-
Negotiate "AN" position (factory default), the
Port automatically determine the duplex and
pause modes of the connecting fiber optic
devices. If the connecting fiber optic devices
cannot provide the proper signal to indicate their
own mode of operation, the DIP-switch should
be set to the RIGHT Manual "MAN" position.
See Figure B on page 2 for more information.
NOTE: When Port 1 operates in Auto-
Negotiation mode, the port advertises for Pause. When the Fiber optic ports
(Port 1 and Port 2) operates in Manual mode, Pause is disabled.
NOTE: The fiber optic ports operate in Full-Duplex mode in both Auto and Manual
negotiation modes.
Switch 1
Bank 2
Switch 8
Switch 1
Bank 1
Switch 8
RIGHT
LEFT
Figure A: DIP-Switch Locations
