Omnitron Systems Technology iConverter 2FXM2 Quick Start Manual

Management Options iConverter, Serial Agent
Network Management
1: Chassis and Module Management
2: Set Module Name Preferences
Management Module Preferences
3: IP and Control Preferences
4: SNMP Preferences
5: Abandon Preference Changes
6: Save Preference Changes
7: Restore Factory Defaults
8: Restart Management Module
9: Other Networking Features
Management Module Maintenance
10: Firmware Update
11: Set Date/Time
IP Address = 192.168.1.220
Chassis Number = 1
Enter Choice, <H>elp, E<x>it >
Figure C: Command Line Interface Menu Options
The CLI interface allows for the detailed configuration of the module. It is recommended
to configure the module with an IP address associated with the attached network.
Also, SNMP traphost address should be configured if the module is managed with an
SNMP-based Management System. See the 2FXM2 User Manual for complete
information.
4) VERIFY OPERATION
Once the module has been
LED Function
installed and configured per
"Legend"
steps 1 - 3, verify the module
Power "Pwr"
is operational by viewing the
Port 1
LED indicators.
Fiber Link Activity
The Power LED indicates "P1"
Port 1
the module is receiving
Half/Full Duplex
power.
"FDX"
Port 2
The Fiber Optic link LEDs
Fiber Link Activity
indicate the fiber optic
"P2"
connections have been
Port 2
Half/Full Duplex
established. Verify the Link
"FDX"
Mode selection is set to Link
Segment (LS). Until a stable
link is established, leave the
Link Mode configured for LS. After a Link presence is established, the Link Mode
selection can be modified.
Omnitron Systems Technology * 140 Technology Dr. * #500 * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
Color Off State On / Blinking State
Green No power On: Module has power
On: Fiber link is active
Green No Fiber Link
Blinking: Fiber Data Activity
Green Half-Duplex On: Full-Duplex
On: Fiber link is active
Green No Fiber Link
Blinking: Fiber Data Activity
Green Half-Duplex On: Full-Duplex
Figure D: LED Indicators
Form 040-8940N-001 B
iConverter
2FXM2 Standalone Module QUICK START GUIDE
®

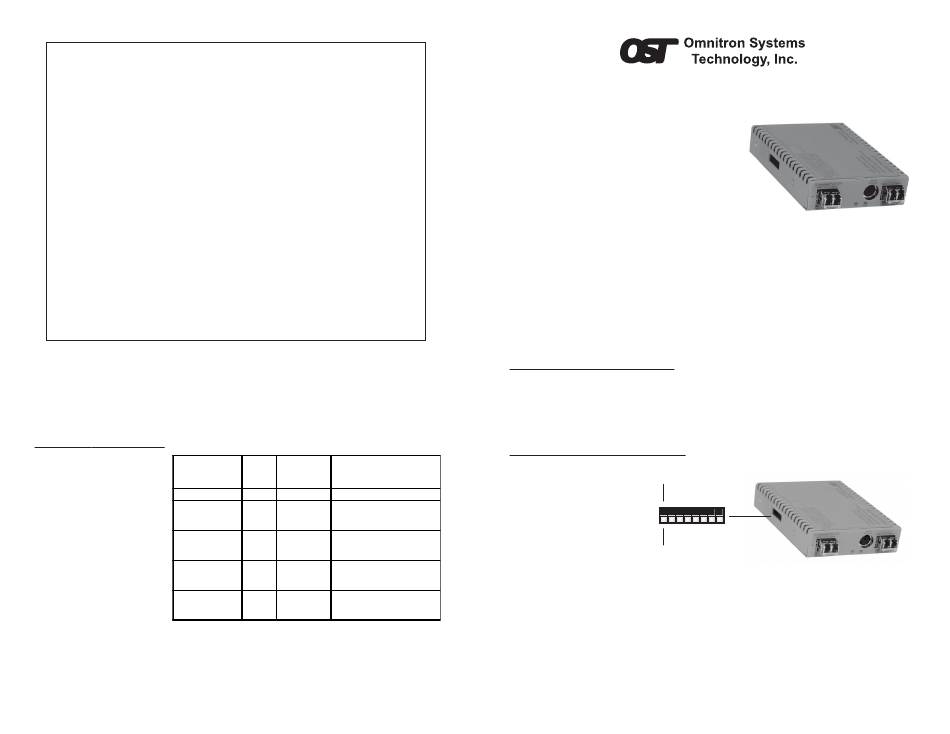

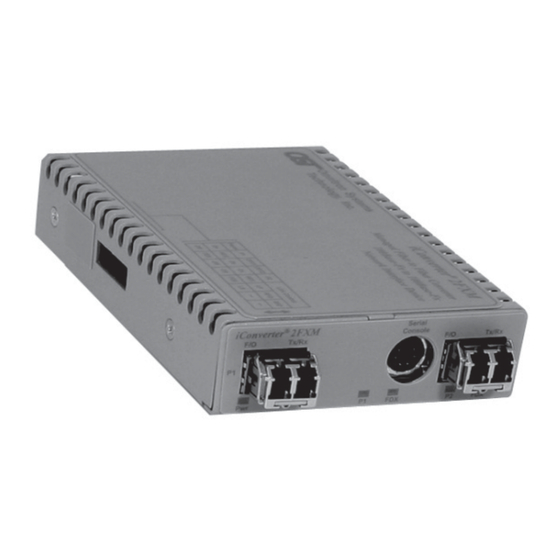

The Omnitron iConverter 2FXM2 media
converter and Network Interface Device (NID)
provides Fast Ethernet (100BASE-FX) fiber-to-
fiber media conversion.
The 2FXM2 conforms to Ethernet in the First Mile
(EFM) fiber standards to support Fiber-to-the-X
(FTTX) Metropolitan and Enterprise LAN
networks. Built-in Operation, Administration and
Maintenance (OAM) functionality enables the
2FXM2 to operate as a managed demarcation
point at the customer premises and network
edge, offering service provisioning functions, such as Quality of Service and Bandwidth
Control (rate-limiting) capabilities.
The 2FXM2 can be managed using Omnitron's
Software, 3rd Party SNMP-Client, Telnet or the Command Line Interface (CLI).
For more information, including the complete User Manual on the 2FXM2 module,
access Omnitron's documentation download web page to view all relevant documents:
http://www.omnitron-systems.com/downloads.php
INSTALLATION PROCEDURE
1) Configure DIP-Switches
2) Install Standalone Module and Connect Cables
3) Configure Module via Command Line Interface
4) Verify Operation
1) CONFIGURE DIP-SWITCHES
DIP-SWITCH BANK 1
UP
SW1 - PAUSE ENABLE
When the Pause Enable
SW1
DIP-switch is in the DOWN
Bank 1
"Off" position (factory
default), the 2FXM2
DOWN
disables the fiber ports'
ability to send and receive
Pause frames during
network congestion.
Setting this DIP-switch to the UP "On" position, enables the 2FXM2 to receive Pause
frames from its link partner. This enables the 2FXM2 to stop transmitting traffic to its
link partner and store incoming frames from the other port in the internal buffer until the
congestion clears. If the internal buffer of the 2FXM2 becomes congested, it will transmit
a Pause frame to its link partner.
SW2 - FIBER PORT 1 FULL/HALF DUPLEX
Setting this DIP-switch to Half-Duplex "HDX" facilitates a connection that supports
NetOutlook TM
SNMP Management
SW8
Port 1 Port 2
Figure A: DIP-Switch Location
