Omnitron Systems Technology iConverter GM4-PoE+ Quick Start Manual

LED Indicators
LED Legend/State
"1G" "100"
OFF
OFF
ON
ON
Port Speed LED Indicators
SPECIFICATIONS
10/100/1000BASE-TX UTP to 100/1000BASE-X Fiber
Description
Network Interface Device with Power over Ethernet
IEEE 802.1Q, 802.1ad, 802.1ax, 802.1p, 802.3, 802.3ad, 802.3ah, 802.1ag,
1588v2, 802.3af, 802.3at and 60W PoE
Standard Compliances RFC 2819 (RMON), 2863 (IF-MIB), 2131 (DHCP), 2544
ITU-T G.8031, G.8032, G.8262, Y.1731, Y.1564
MEF 9, 14, 21, 30, 31, Carrier Ethernet 2.0
Management Telnet, SNMPv1, SNMPv2c, SNMPv3, SSH, Serial Console
Regulatory Compliances UL, CE, FCC Class A, NEBS Level 3, RoHS2, WEEE
Frame Size
Up to 10,240 bytes
Port Types
Cable Types
AC Power Requirements
All models (except 8991T-14, 8991T-23):
2.1 mm Barrel Connector (via AC Power Adapter)
or 3-Pin Terminal Connector (via direct DC voltage)
DC Power Input
8991T-14, 8991T-23:
DIN-6 Connector (via AC Power Adapter)
or 3-Pin Terminal Connector (via direct DC voltage)
48 - 57VDC
DC Power Requirements
Temperature
W: 5" x D: 7.5" x H: 1.375"
Dimensions
L: 127 mm x B: 190.5 mm x H: 34.93 mm
without Power Adapter:
Weight
with Power Adapter:
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
Warranty 3 Year warranty
Link Speed
OFF Port not linked
ON Port linked at 100Mbps
OFF Port linked at 1000Mbps
ON Port linked at 10Mbps
Copper: 10/100/1000BASE-T (RJ-45)
Fiber: 100/1000BASE-X (SFP)
Serial: RJ-45
Copper: EIA/TIA 568 A/B, Category 5 and higher
Fiber: Multimode: 50/125um, 62.5/125um
Single-mode: 9/125um
Serial: EIA/TIA 568 A/B, Category 3 and higher
AC Adapter: 100 - 240VAC/60Hz,
2.8A @ 120VAC (max)
PoE+: 2.74A @ 48VDC max
HPoE: 5.24A @ 48VDC max
Commercial: 0 to 50°C
Wide: -40 to 60°C
Extended: -40 to 75°C
Storage: -40 to 80°C
1.38 lbs. (0.626 kg.)
2.50 lbs. (1.134 kg.)
Page 8
040-8991S-001A 9/14

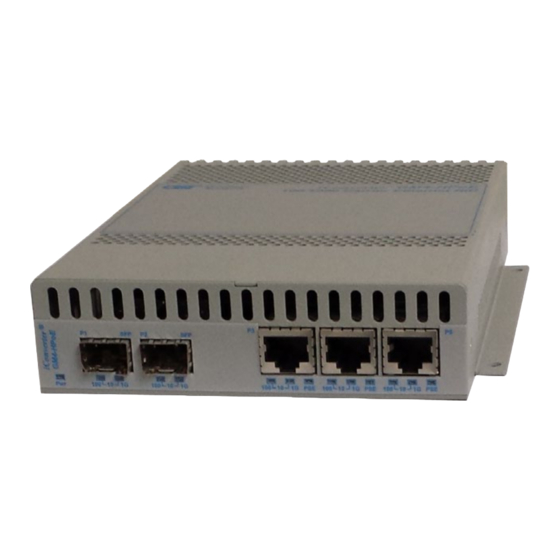

iConverter
GM4-PoE+ and GM4-HPoE
Network Interface Devices

Quick Start Guide

38 Tesla, Irvine, CA 92618 USA
Phone: (949) 250-6510; Fax: (949) 250-6514
®
