Omnitron Systems Technology iConverter 2GXM2 Specifications

iConverter
iConverter
®
iConverter
2GXM2
1000BASE-X SFP to 1000BASE-X SFP Media Converter and Network Interface Device
Wall-Mount
Carrier-Grade optical Ethernet Network Interface Device
Integrated SNMPv1, SNMPv2c, SNMPv3 and IP-less
802.3ah management
802.3ah Link OAM for early fault detection and
performance monitoring
VLAN with 802.1ad Q-in-Q for E-Line and E-LAN services
Quality of Service for Voice/Data/Video over Ethernet
Bandwidth control (rate limiting) with 64Kb increments
Port MIB statistics and optical performance statistics to
support Service Level Agreements
Port Access Control for enhanced security
10,240 byte Jumbo frames
Layer 2 Control Protocol (L2CP) Policy Control
Configurable Link Fault Propagation modes
Small Form Pluggable (SFP) transceivers with Optical
Statistics for standard or CWDM applications
Auto-negotiation of duplex modes and pause capabilities
O
Commercial (0 to 50 C), wide (-40
extended (-40 O to 75 O C) temperature ranges
MEF 9 and 14 Certified Compliant
NEBS Level 3 Compliant
Lifetime Warranty and free 24/7 Technical Support
Plug-in
Tabletop
O O
to 60 C) and
The iConverter 2GXM2 conforms to the Ethernet in the First
®
Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan
and Enterprise LAN networks. The 2GXM2 provides intelligent,
securely managed service demarcation at the customer premises,
offering Quality of Service and enhanced Bandwidth Control (rate-
limiting) capabilities. The 2GXM2 features built-in Operations,
Administration and Maintenance (OAM) with comprehensive
performance monitoring, fault detection and provisioning.

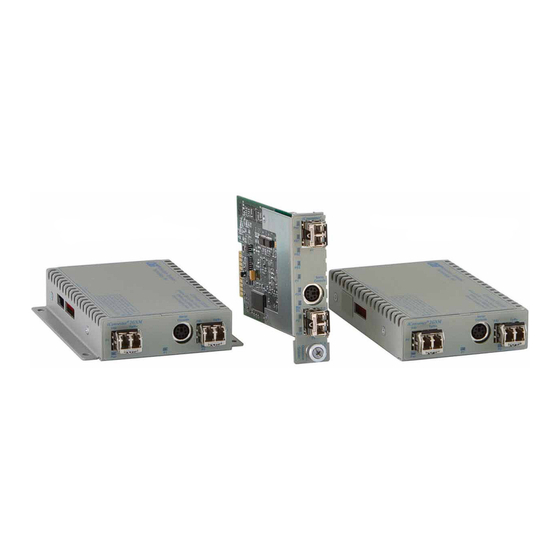

The 2GXM2 is available as a compact standalone unit or as a
chassis plug-in module. The hot-swappable 2GXM2 plug-in
module can be mounted in a 19 or 5-Module chassis with any
combination of redundant AC and DC power supplies. It can
also be mounted in a 2-Module AC or DC powered chassis, or
in a 1-Module chassis with AC or DC power input.
The plug-in module can manage other modules in the same
chassis and operate as a managed gigabit fiber-to-fiber converter.
It features two Gigabit Ethernet backplane ports for connectivity
to adjacent modules in a chassis for multi-port and multi-service
configurations.
The standalone 2GXM2 is available as a tabletop or wall-mount
unit. The tabletop model can be DIN-rail mounted using an
optional DIN-rail mounting kit. Both the tabletop and the
wall-mount models are DC powered and are available with an
external AC/DC power adapter or a terminal connector for DC
power. The 2GXM2 standalone unit combines management
capability with a compact chassis for deployment at the
demarcation point.
iConverter fiber access Network Interface
Devices and media converters are MEF 9 and
14 certified compliant and NEBS Level 3
compliant.
Carrier-Grade Optical Ethernet with reliability
and performance monitoring to support Service
Level Agreements (SLAs).
The modular design of
equipment future-proofs Metro Ethernet
services with scalability of network services
and lowers
comprehensive OAM management and
provisioning.
iConverter NIDs enable
iConverter fiber access
operating costs with
