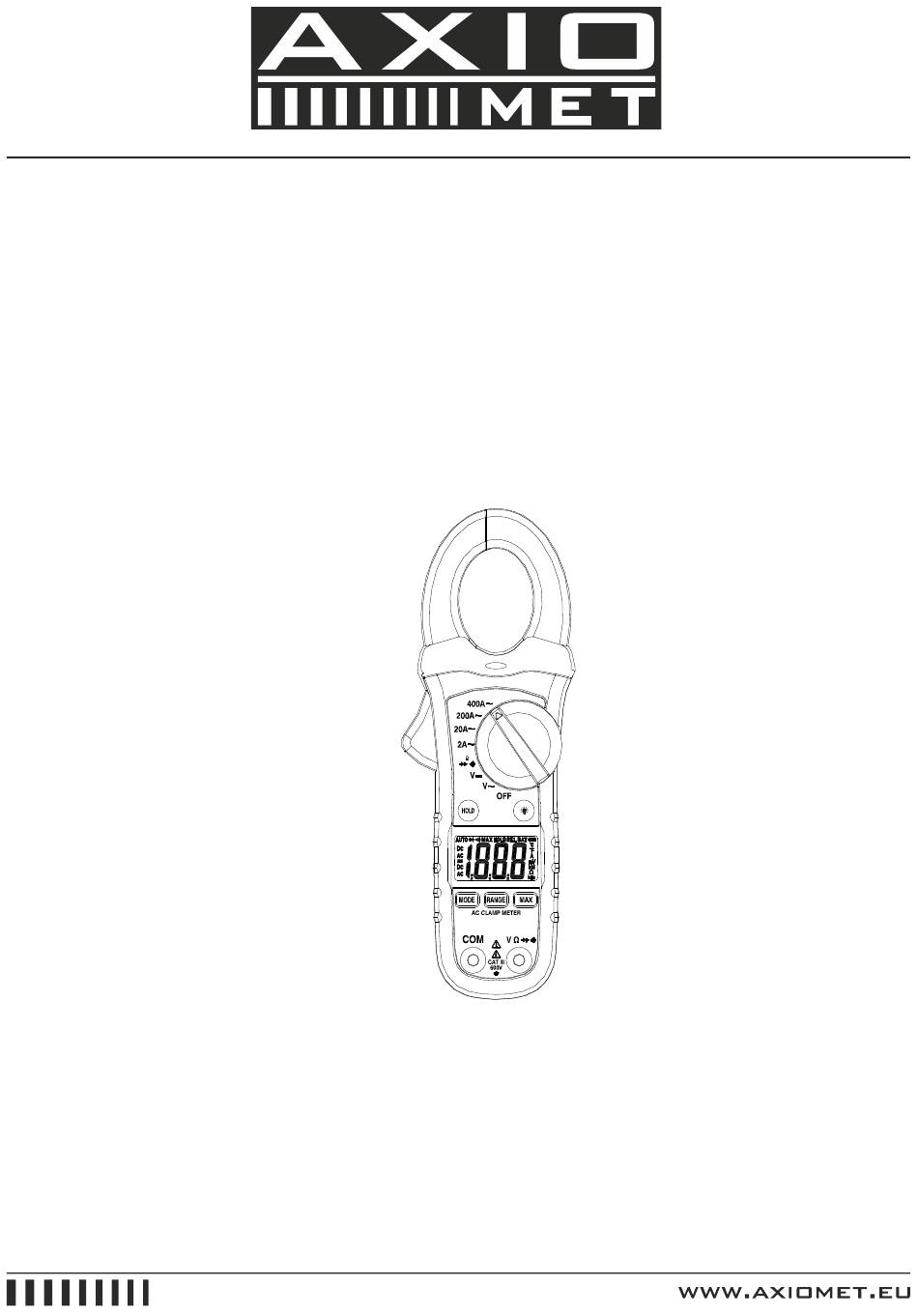

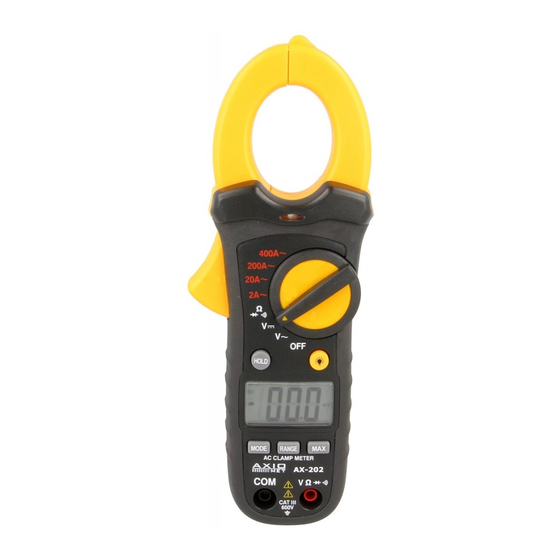

- Page 1 AC CLAMP METER AX-202 INSTRUCTION...
-
Page 2: Safety Notes
Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present Double insulation SAFETY NOTES •... - Page 3 • If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Input Limits Function Maximum Input A AC 400A V DC, V AC 600V DC/AC Resistance, Diode, Continuity , 250V DC/AC Meter Description 1.
- Page 4 Specifications Function Range & Resolution Accuracy (% of reading) ± (2.5 % + 10 digits) 2.000AAC ± (2.5 % + 4 digits) 20.00AAC AC Current ± (2.5 % + 4 digits) (50/60Hz) 200.0AAC ± (3 % + 4 digits) 400.0 AAC ±...
- Page 5 2000 counts LCD Display AC Current 50-60Hz (AAC) AC Voltage bandwidth 50-60Hz (VAC) Operating Temperature 41 to 104 F (5 to 40 Storage Temperature -4 to 140 F (-20 to 60 Operating Humidity Max 80% up to 87°F (31°C) decreasing linearly to 50% at 104°F(40°C) Storage Humidity <80% Operating Altitude...
- Page 6 1. Set the Function switch to the 400.0A ~ 2.000A range. 2. If the range of the measured is not known, select the higher range first then move to the lower range if necessary. 3. Press the trigger to open jaw. Fully enclose one conductor to be measured. The clamp meter LCD will display the reading.
-
Page 7: Mode Button
Non-Contact AC Voltage Measurements WARNING: Risk of Electrocution. Before use, always test the Voltage Detector on a known live circuit to verify proper operation 1. Touch the probe tip to the hot conductor or insert into the hot side of the electrical outlet. 2.
