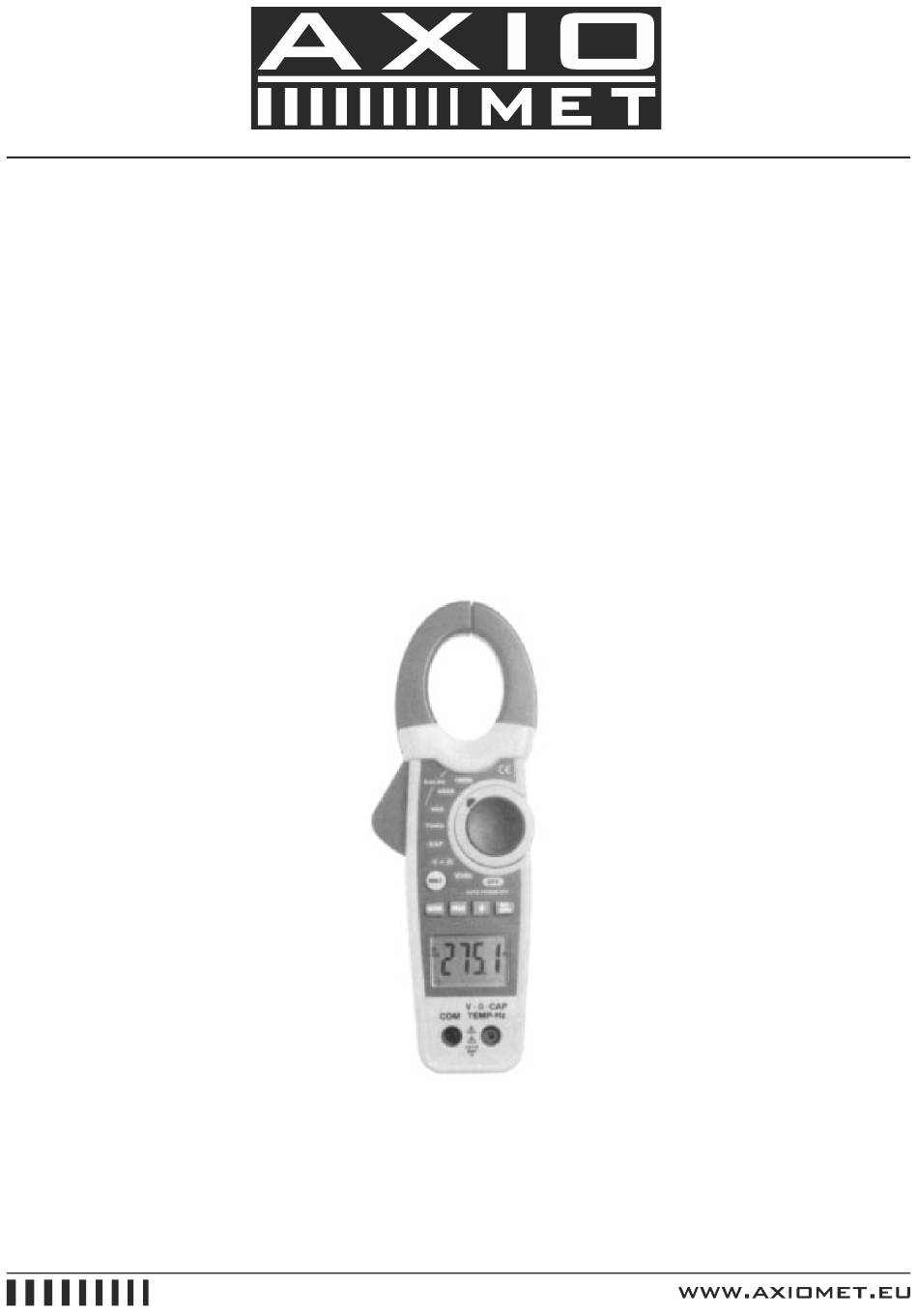

- Page 1 AC/DC TRUE RMS CLAMP METER AX-355 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS 1. Measuring Limits ....................3 2. Safety Information ....................3 3. Features ......................5 4. Instrument Layout ....................6 5. Specifications ....................6 6. DC Current Measurement ..................9 7. AC Current Measurement ..................10 8. DC Voltage Measurement ..................11 9. -
Page 3: Measuring Limits
1. Measuring Limits DC Amperem: 0.01A to 1000A AC Amperem: 0.01A to 1000A DC Voltage: 0.1mV to 600V AC Voltage: 0.1mV to 600V Resistance: 0,1Ω to 400MΩ Capacitance: 0.001nF to40mF Frequency: 0.001 kHz to 4kHz Temperature: -40°C to 1000°C -40 °F to 1832 °F 2. - Page 4 DANGER is reserved for conditions and actions that are likely to cause serious or fatal injury. WARNING is reserved for conditions and actions that are likely to cause serious or fatal injury. CAUTION is reserved for conditions and actions that are likely to cause minor injury.
-
Page 5: Features
CAUTION: • Before making measurements ensure that the function selector switch is set on the appropriate range position • Always make sure that the plug of each test lead is inserted fully into the appropriate terminal of the meter. • Ensure that the function selector switch is set to the “OFF” position after use. When the meter will not be in use for a long period of time, place it in storage after removing the battery. -
Page 6: Instrument Layout
4. INSTRUMENT LAYOUT 5. SPECIFICATION Clamp Size 30cm opening approx. Diode Test: Test Current of 0.3mA typical Open circuit voltage 1.5V DC Continuity Check: Threshold < 35Ω, Test current < 1mA Low Battery Indication: is displayed Over range Indication: “OL” is displayed Measurements Rate 2 per second, normal Input Impedance:... - Page 7 AC Voltage Bandwidth: 50/60Hz(VAC) Operating Temperature: -10°C to 50°C (14°F to 122°F) Storage Temperature: -30°C to 60°C ( -22°F to 140°F) Relative Humidity: Up to 85% Over Voltage: Category III 600V Battery: One DC 9V IEC6F22 1604 Battery Auto Power OFF: Approx.20 minutes Dimensions: 229x60x49 mm...
- Page 8 AC Voltage: Range Measuring Range Resolution Accuracy(% of Reading) ±(1.0% + 10 cyfr) 400mV 0 ~ 400.0mV 0.1mV ±(1.5% + 8 cyfr) 0 ~ 4.000V 0.001V 0 ~ 40.00V 0.01V 400V 0 ~ 400.0V 0.1V ±(2.0% + 8 cyfr) 600V 0 ~ 600V Note: No Automating on 400mV AC Range Resistance:...
-
Page 9: Dc Current Measurement
Frequancy: Range Measuring Range Resolution Accuracy(% of Reading) ±(1.5% + 2 cyfry) 4kHz 0 ~ 4.000kHz 0.001kHz Czułość: 5V rms min. Temperature: Range Measuring Range Resolution Accuracy(% of Reading) °C ±(2.5% + 3°C) -40°C ~ 1000°C 1°C °F ±(2.5% + 5°F) -40°F ~ 1832°F 1°F 6. -
Page 10: Ac Current Measurement
7. AC TRUE RMS CURRENT MEASUREMENT WARNING: Ensure that the test leads are disconnected from the meter before making current measurements. 1. Set the function switch to range position, and make sure that the current under test does not exceed the upper limit of the measuring range you hale selected. 2. -
Page 11: Dc Voltage Measurement
8. DC VOLTAGE MEASUREMENT 1. Set the function switch to range position. The meter automatically defaults to DC Volts. 2. Insert the red test leads into the input terminal and the black lead to the terminal. 3. Connected the other end of the test leads to the circuit under test. 4. -
Page 12: Ac Voltage Measurement
9. AC TRUE RMS VOLTAGE MEASUREMENT 1. Set the function switch to range position. 2. Press the button to select the AC Volt range. The meter automatically defaults to DC Volts. 3. Insert the red test lead into the input terminal and the black lead to the terminal. -
Page 13: Resistance Measurement
10. RESISTANCE MEASUREMENT 1. Set the function switch to range position. The meter automatically defaults to resistance range. 2. Insert the test lead into the input terminal and the black lead to the terminal. 3. Connect the other end of the test leads to the circuit or component under test. Take the reading on the display. -
Page 14: Capacitance Measurement
11. CAPACITANCE MEASUREMENT 1. Set the function switch to range position. 2. Insert the red test lead into the input terminal and the black lead to the terminal. 3. Connect the other end of the test leads to the circuit or component under test. Take the reading on the display. -
Page 15: Frequency Measurement
12. FREQUENCY MEASUREMENT 1. Set the function switch to range position. The meter automatically defaults to Frequency range. 2. Press the button for 3 seconds to select the Frequency range. The meter automatically defaults to DC Volts. 3. Insert the red test lead into the . -
Page 16: Temperature Measurement
13. TEMPERATURE MEASUREMENT range position. The meter automatically defaults to °C range. 1. Set the function switch to 2. Insert the meter white temperature adaptor into the input terminal and the terminal. Ensure that the “-“ marking on the adaptor is inserted into the terminal and the „+”... -
Page 17: Continuity Testing
4. Connect the other end of the test leads to the component under test. Read the display Note: • Use the diode test to check diodes, transistors, silicon controlled rectifiers (SCR’s) and other semiconductor devices. • The test sends a current through a semiconductor junction, then measure the junction’s voltage drop. -
Page 18: Data Hold Functions
Note: • Using resistance and continuity function in a live circuit will produce false results and may damage the instrument. • In many cases the suspicious components must be disconnected from the circuit under test to obtain accurate results. • WARNING Before attempting to make a test ensure there is no voltage present on the circuit. -
Page 19: Peak Hold Functions
17. PEAK HOLD This is a function used to record the maximum and minimum readings on the display for the voltage and current ranges. 1. Press the button once. This will record the „PEAK” maxiumum, the meter beeps and display the „P-MAX” indicator on the LCD. 2. - Page 20 5. Replace the battery cover and reinstall the screw.
