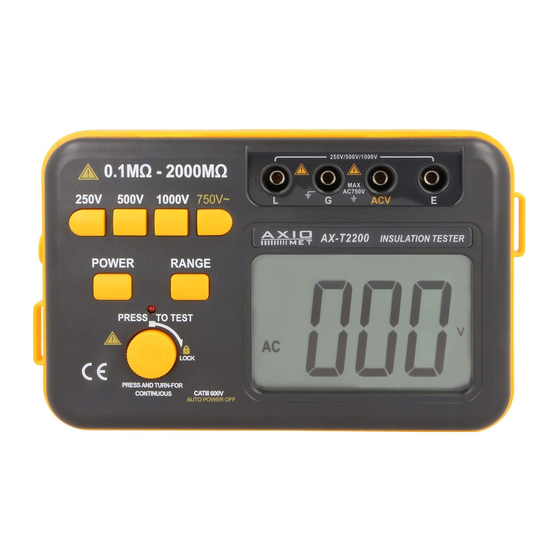

AX-T2200

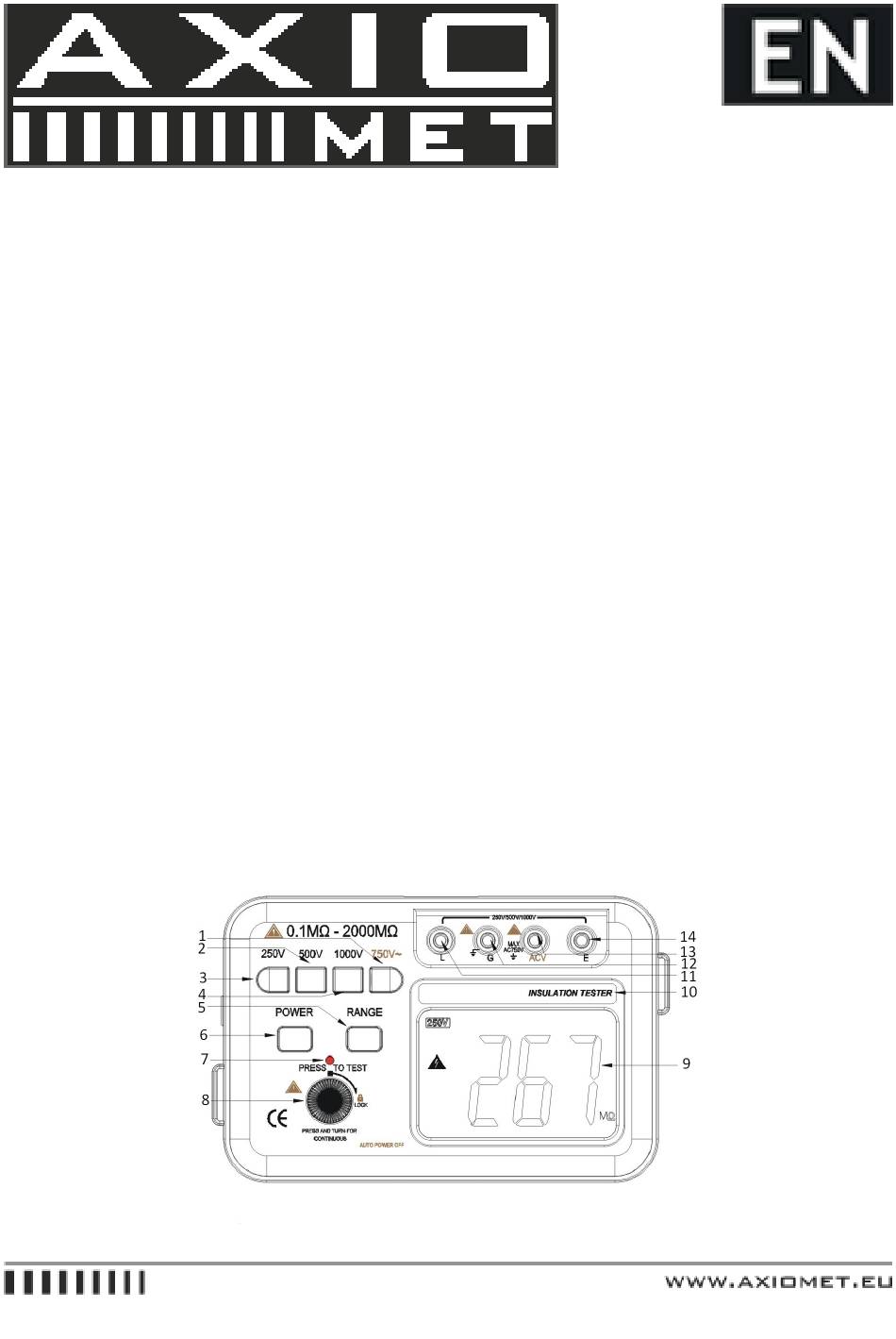

1. Front panel description
1, 2, 3, 4.Voltage selection switch(AC750V/500V/250V/1000V).
5. Resistance Range selection switch(RANGE).
6. Power switch:auto-lock power switch(POWER).
7. High voltage indicator:LED display.
8. Measurement button.
9. LCD display:Display the measured data and units
10. Instrument model.
11. L: Terminal for connecting the measured circuit.
12. G:Terminal for protection, connect the electrode wire of
protection loop to "G" terminal when the measured
object is required to add the protection loop to eliminate
the leakage effect.
13. ACV: Input terminal of AC Voltage measurement.
14. E:Terminal for connecting the ground of the measured
object.
15. Terminal of AC adaptor()
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axio MET AX-T2200
Summary of Contents for Axio MET AX-T2200
- Page 1 AX-T2200 1. Front panel description 1, 2, 3, 4.Voltage selection switch(AC750V/500V/250V/1000V). 5. Resistance Range selection switch(RANGE). 6. Power switch:auto-lock power switch(POWER). 7. High voltage indicator:LED display. 8. Measurement button. 9. LCD display:Display the measured data and units 10. Instrument model.
- Page 2 2. Technic property 2.1. General property Display:84.8×59.8mm LCD display, max.“1999” Over range indicator:display“1” Power:battery LR6 (1.5V) ×6 (or external AC adaptor), no battery indicator. Auto power off (approx. 15miutes after turning on) Power consumption:consumption is less than 300mw at unload measurement. Operation environment:Temperature 0°C - 40°C.
- Page 3 Note:Median resistance: to ensure that the voltage of both sides of measurement is not less than 90% of lower limit of resistance measurement of measurement voltage normal value. 3. Operation description Open the battery case and set up 6pcs of batteries (see the following pictures), note the polarity of batteries. Press the button of“POWER”.
- Page 4 4. Resistance measurement 5. Safety Notices • When voltage measurement selection button does not be pressed, it is possible to appear the high voltage at the output voltage terminal. • When measuring, first check the measurement voltage selection and if the indication of the measurement voltage on LCD is in accordance with the voltage needed •...
- Page 5 • To ensure the safety of measurement and reduce the interference, the test leads adopt silicone rubber materials, please do not change the leads at will. • When the external AC adaptor supplies the power, the inside batteries are disconnected and the batteries can’t be charged at the time.
