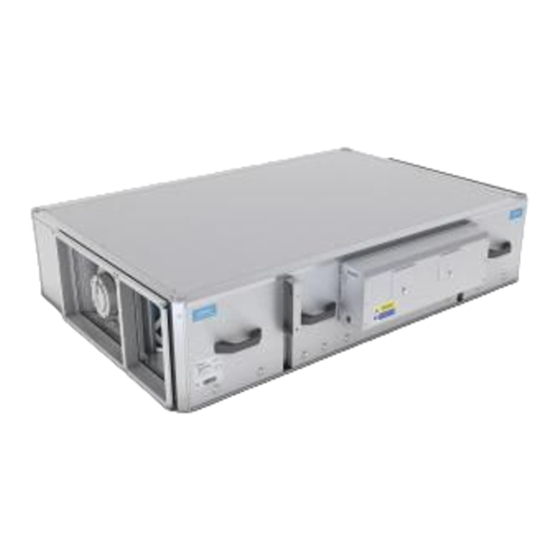

NuAire XBOXER XBC Series Installation, Operating And Maintenance Instructions
Unit sizes 10 - 65with ecosmart classic (es) or basic control (bc)
Hide thumbs
Also See for XBOXER XBC Series:
Subscribe to Our Youtube Channel
Related Manuals for NuAire XBOXER XBC Series
Summary of Contents for NuAire XBOXER XBC Series

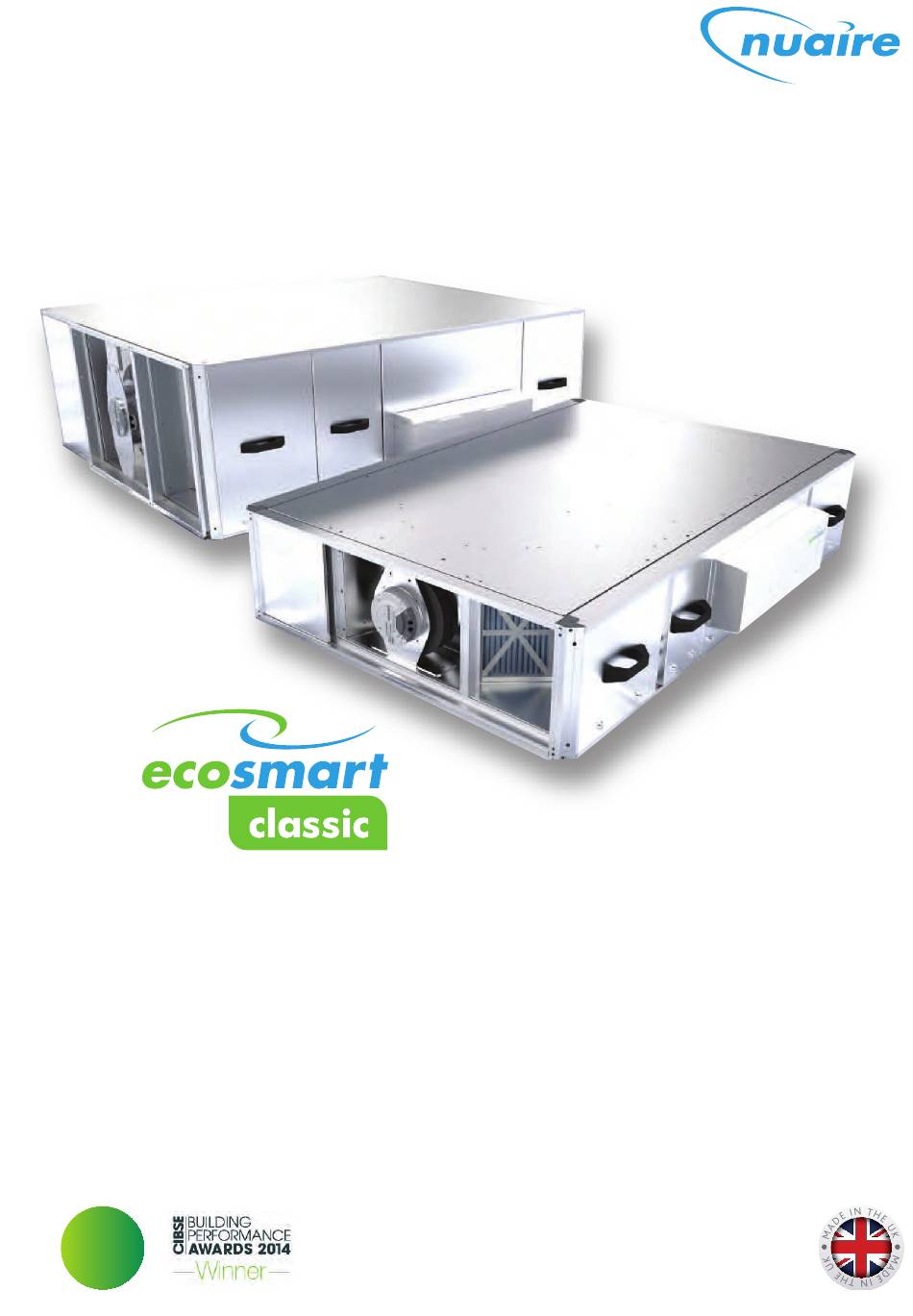

- Page 1 XBOXER XBC UNIT SIZES 10 - 65 WITH ECOSMART CLASSIC (ES) OR BASIC CONTROL (BC) INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR THE COMPLETE VENTILATION SOLUTION COMPLIANT 2016...
-
Page 2: Installation And Maintenance
*Unlock an access panel by inserting a flat head screwdriver into the locking latch and turning anti-clockwise (1/4 turn). Note: Bottom access unit (BA) Filters cannot be accessed from the side of the unit. nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605... - Page 3 LPHW or Electric Heater Battery LPHW or Electric Heater Battery Note: The unit is shipped with four G4 filters in place, two of which are included as spares. For F7 filters contact Nuaire. Figure 4. Standard Unit Format (Top view).
- Page 4 • That all appropriate risk assessments have been carried out and the and vermin. required safety measures have been taken. If the storage period is to exceed two months, contact Nuaire for • That you understand the work required. guidance on the appropriate “mothballing” procedures.
-
Page 5: Dimensions And Weights
Figure 9. Plan view of unit with 4 hanging brackets attached (two each side of the unit). Unit Code Dimensions to Hole Centres (mm) XBC10-H-LES 1059 XBC15-H-LES 1059 XBC25-H-NBC 1207 XBC45-H-NBC 1309 1008 XBC55-H-NBC 1619 1058 XBC65-H-NBC 1619 1058 Compatible with 20mm Mez. nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605... - Page 6 1067 CONNECTION / FLANGE DIMENSIONS XBC65 Flange M8 INSERT HOLE CENTRES Connector Note: The flange connector leaves factory attached to unit. SUPPLY/ INTAKE/ EXTRACT DISCHARGE 1067 CONNECTION / FLANGE DIMENSIONS nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
- Page 7 XBC65-HS-MS10* 1050 XBC65-HE-MS10* 1050 XBC65-HS-MS12* 1250 XBC65-HE-MS12* 1250 XBC65-HS-MS16* 1600 XBC65-HE-MS16* 1600 2 attenuator flange connections are attached to every unit. Add 50mm to dimension 'A' to include both flanges. nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
- Page 8 HS - Denotes the type of silencer required for the supply or discharge. HE - Denotes the type of silencer required for the extract or intake. *Note: XBC15 silencers are also suitable for XBC10 units. nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
- Page 9 Foam Sealing Strip. 6. Secure the attenuators to the attenuator flange connector on the end of the fan unit. (see fig 10). Four piece support brackets. nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
- Page 10 XBC25-EXHAUST-RT XBC25-INTAKE-RT XBC45-EXHAUST-RT Weatherproof Components XBC45-INTAKE-RT Item Description Quantity XBC55-EXHAUST-RT Roof Assembly XBC55-INTAKE-RT Control Cover XBC65-EXHAUST-RT Fixing Channel XBC65-INTAKE-RT Figure 15. Installing the weatherproof roof, exhaust and intake terminals. nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
- Page 11 External weather proof version (example code: XBC15-MD-WP). Fan unit If matching length Nuaire silencers (example codes: XBC15-HS-MS16 & XBC15-HE-MS16) are being fitted to the fan unit, the motorised damper (example code XBC15-MD) should to be fitted after the silencers (as Figure 16).
- Page 12 & negative pressure is equal to the set pressure. 1 - NC Nuaire recommend the pressure switch be set to trigger when the filters experience a 125 Pa increase above the clean filter resistance for 3 - C the largest commissioned airflow rate. Use the adjustment dial to set the pressure at which the switch will trip.
- Page 13 Isolation - Before commencing work, make sure that the unit, if not already doing so. switched live and Nuaire control are electrically isolated from the Piped connections should be made to the unit using appropriate mains supply.
- Page 14 This diagram only shows the essential field wiring points for clarity. *Remove link wire if switched live signal, an enabler Local isolator (by others) or BMS signal is connected. nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
- Page 15 This diagram only shows the essential field wiring points for clarity. *Remove link wire if switched live signal, an enabler or BMS signal is connected. Local isolator (by others) nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
- Page 16 The voltage tolerance is +/- 125mV and is adjustment Fault measured at the fans terminal. TRICKLE = Selects trickle Frost running: 0 = off, 1 = selected Trickle Test TEST = Test button nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
- Page 17 230V ~ 50Hz 230V ~ 50Hz 230V ~ 50Hz link from +V to SIG for Isolator by link from +V to SIG for max speed others max speed 230V ~ 50Hz nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
-
Page 18: Maintenance
The product warranty applies to the UK mainland and in accordance service visits. with Clause 14 of our Conditions of Sale. Customers purchasing from outside of the UK should contact Nuaire International Sales office for Note: The unit application may require particular attention to this further details. - Page 19 Installation and Maintenance XBC 10-65 Ecosmart Classic (ES) & Basic (BC) Controls NOTES nuaire.co.uk 029 2085 8400 21. 07. 20. Leaflet Number 671605...
- Page 20 GENERAL In addition to the particular requirements given for the individual product, the following general requirements The equipment referred to in this Declaration of Incorporation is supplied by Nuaire to be assembled into a should be noted. ventilation system which may or may not include additional components.
