This document refers to the following
Nuaire Run Around Coil products:
Code description example
R4NC - RAC - L 2 WP
| |
|
| | |
1
2
3
4 5
1. =
Type/Curve Ref.
2. = Ecosmart control as standard
NC = No control
3. = Run around coil
4. = Unit type
L = LPHW
N = No heater
5. = 2 row coil or 3 = 3 row coil
6. = Optional Weather Roof
Please note - project specific variations of these products may be
supplied.
Such products will be identified on the unit rating plate by the
reference – Qaxxxx.
Generally, the standard product information given here will apply,
and any additional information necessary for the safe installation,
operation and maintenance of the product will be supplied directly
to the contractor.
AHU with Heat Recovery section and direct drive AC motor technology.
Discharge
Intake

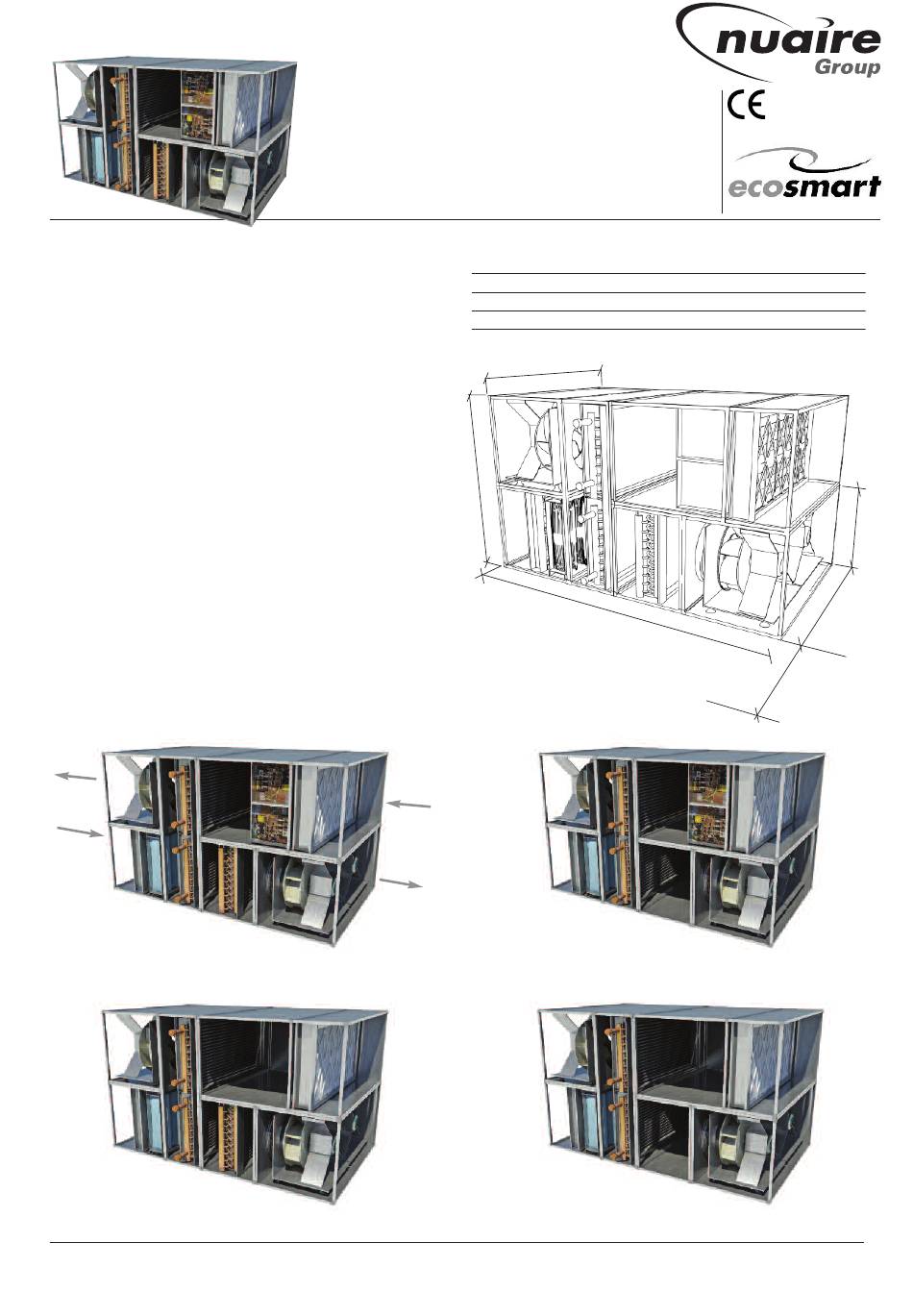

Figure 1. Model shown: R4/6-RAC-L (LPHW). Includes Ecosmart control.
Figure 3. Model shown: R4/6NC-RAC-L (LPHW). No Ecosmart control.
Nuaire Limited Western Industrial Estate Caerphilly United Kingdom CF83 1NA
T: 029 2085 8400 F: 029 2085 8444 E: info@nuaire.co.uk W: www.nuaire.co.uk
XBOXER
Run Around Coil
Installation, Operating and
Maintenance Instructions
6
Extract
Supply
Unit overall dimensions (mm)
Unit Code
A
R4-RAC-L/N/NC
2800
R5-RAC-L/N/NC
3200
R6-RAC-L/N/NC
3800
N.B If CW or DX modules are included add 600mm to overall length.
B
C
A
Note: Full length access is from either side.
1600mm for Run Around Coil maintenance.
800mm for filter access etc.
Figure 2. Model shown: R4/6-RAC-N (No heater). Includes Ecosmart control.
Figure 4. Model shown: R4/6NC-RAC-N (No heater). No Ecosmart control.
1
The EMC Directive
2004/108/EC
The Low Voltage
directive
2006/95/EC
OPTIONS AVAILABLE
B
C
Duct size D x E
1600
1600
1540 x 740
2000
2000
1940 x 940
2600
2600
2540 x 1240
D
1600mm -
Run Around Coil
maintenance.
800mm -
filter access etc.
17. 06. 15. Leaflet Number 671424
E
