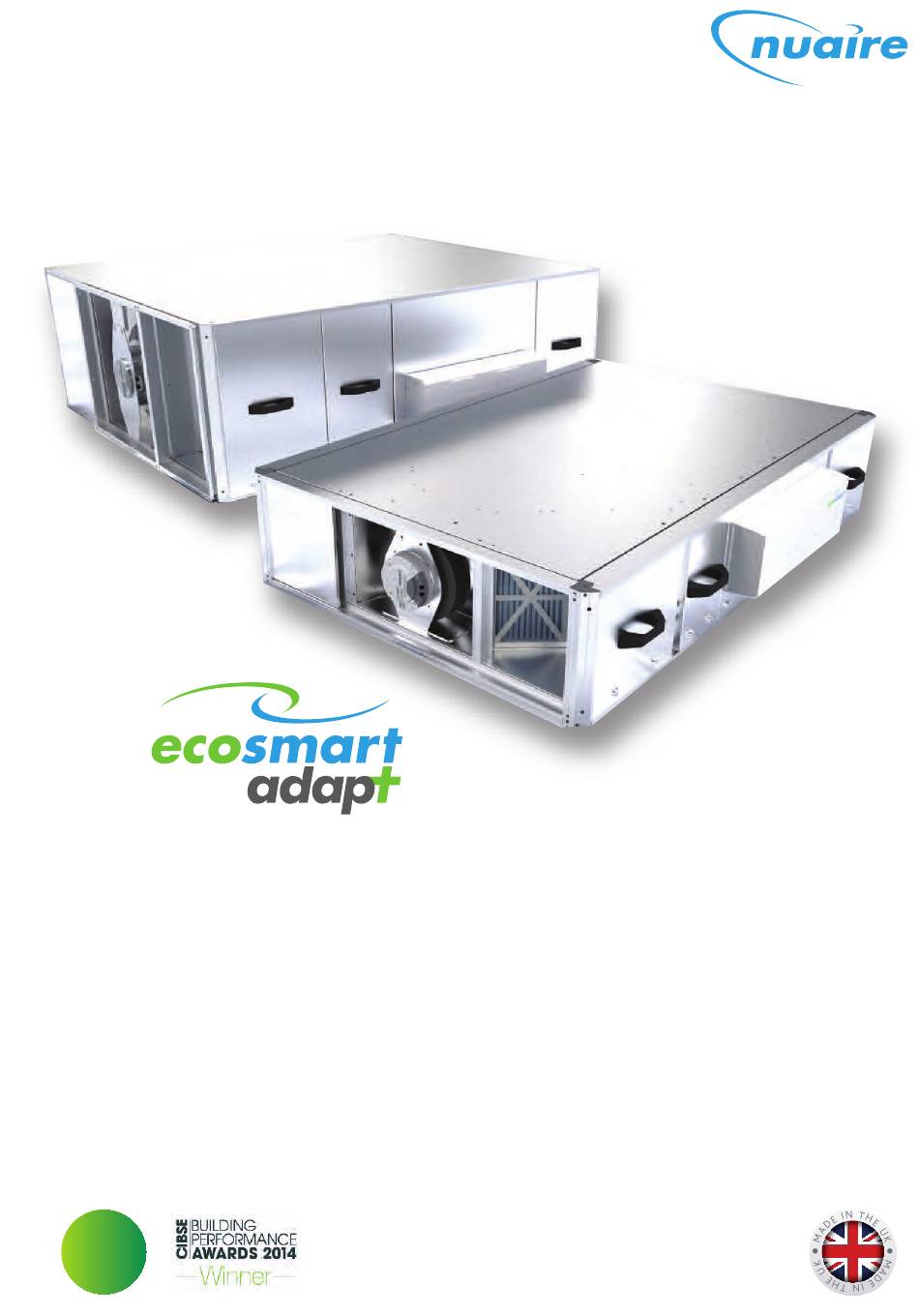

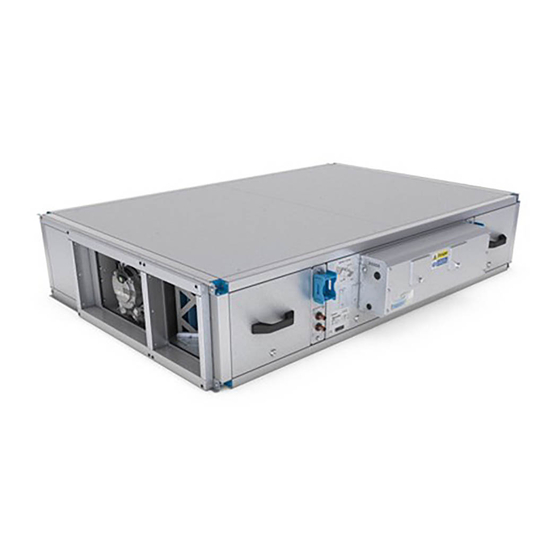

XBOXER XBC
UNIT SIZES 10 - 65 WITH
ECOSMART ADAPT CONTROL WITH TREND (AT)
INSTALLATION, OPERATING AND
MAINTENANCE INSTRUCTIONS
ErP
FOR THE
COMPLETE VENTILATION
SOLUTION
COMPLIANT
2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XBOXER XBC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NuAire XBOXER XBC Series

Summary of Contents for NuAire XBOXER XBC Series

  • Page 1 XBOXER XBC UNIT SIZES 10 - 65 WITH ECOSMART ADAPT CONTROL WITH TREND (AT) INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR THE COMPLETE VENTILATION SOLUTION COMPLIANT 2016...

  • Page 2: Table Of Contents

    XBOXER XBC ECOSMART ADAPT (TREND) CONTROL (AT) CONTENTS - INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS PAGE 1.0 Introduction 2.0 XBOXER XBC Unit Access Concepts 3.0 Delivery of Equipment 4.0 Erection and Assembly 5.0 Dimensions and Weights 6.0 Installing the XBC Fan Units and Attenuators 7.0 Commissioning and Setting To Work 8.0 Description Of Control - Software Strategy 9.0 Electrical Details...

  • Page 3: Introduction

    XBOXER XBC 10-65 (AT Control) Supply & Extract Ventilation Unit with Heat Recovery The EMC Directive 2014/30/EU The Low Voltage Installation and Maintenance Directive 2014/35/EU 1.0 Introduction Code description: XBOXER XBC Ventilation Unit The information contained in this document provides details of XBC 45 - H - L - AT - WP - R - BA installation, operation and maintenance for installers and users of the XBOXER XBC Supply and Extract Ventilation Unit with Heat...

  • Page 4: Xboxer Xbc Unit Access Concepts

    LPHW or Electric Heater Battery LPHW or Electric Heater Battery Note: The unit is shipped with four G4 filters in place, two of which are included as spares. For F7 filters contact Nuaire. Figure 4. Standard Unit Format (Top view).

  • Page 5: Delivery Of Equipment

    • That all appropriate risk assessments have been carried out and the and vermin. required safety measures have been taken. If the storage period is to exceed two months, contact Nuaire for • That you understand the work required. guidance on the appropriate “mothballing” procedures.

  • Page 6: Dimensions And Weights

    Figure 9. Plan view of unit with 4 hanging brackets attached (two each side of the unit). Unit Code Dimensions to Hole Centres (mm) XBC10-H-LES 1059 XBC15-H-LES 1059 XBC25-H-NBC 1207 XBC45-H-NBC 1309 1008 XBC55-H-NBC 1619 1058 XBC65-H-NBC 1619 1058 Compatible with 20mm Mez. nuaire.co.uk 029 2085 8200...
  • Page 7 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 5.3 XBOXER XBC Attenuator Flange Connector Dimensions (mm) Figure 10. Attenuator flange connector dimensions. M8 INSERT HOLE CENTRES XBC10 & 15 Flange Connector Hole centres. INTAKE/ SUPPLY/ EXTRACT DISCHARGE CONNECTION / FLANGE DIMENSIONS XBC25 Flange M8 INSERT HOLE CENTRES Connector...
  • Page 8 XBC55-HE-MS12* 1250 XBC55-HS-MS16* 1600 XBC55-HE-MS16* 1600 XBC65-HS-MS10* 1050 XBC65-HE-MS10* 1050 XBC65-HS-MS12* 1250 XBC65-HE-MS12* 1250 XBC65-HS-MS16* 1600 XBC65-HE-MS16* 1600 2 attenuator flange connections are attached to every unit. Add 50mm to dimension 'A' to include both flanges. nuaire.co.uk 029 2085 8200...
  • Page 9 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 5.5 XBOXER XBC Bend Attenuator Dimensions (mm) and Weights (kg) Figure 12. Bend attenuator dimensions (mm). Side view Plan view HS-MBS-S HS-MBS-L HE-MBS-L HE-MBS-S Duct Connection Duct Connection Attenuator Unit Attenuator Code Dimensions (mm) Weights (kg)

  • Page 10: Installing The Xbc Fan Units And Attenuators

    Foam Sealing Strip. 6. Secure the attenuators to the attenuator flange connector on the end of the fan unit. (see fig 10). Four piece support brackets. nuaire.co.uk 029 2085 8200...
  • Page 11 Exhaust RT Inlet RT IMPORTANT Unit Codes for Optional Exhaust and Inlet Terminals Isolation - Before commencing work, make sure that the unit, XBC10-EXHAUST-RT switched live and Nuaire control are electrically isolated from the XBC10-INTAKE-RT mains supply. XBC15-EXHAUST-RT XBC15-INTAKE-RT XBC25-EXHAUST-RT...
  • Page 12 Figure 16. Motorised damper installation options. Internal version (example: XBC15-MD-AT). External weather proof version (example: XBC15-MD-AT-WP). If matching length Nuaire silencers (example codes: XBC15-HS-MS16 & XBC15-HE-MS16) are being fitted to the fan unit, the motorised damper (example code XBC15-MD-AT) should to be fitted after the Fan unit silencers (as Figure 17).
  • Page 13 1 - NC XBC 25-85 Nuaire recommend the pressure switch be set to trigger when the Connect T29 T30 filters experience a 125 Pa increase above the clean filter resistance for Adapt Trend &...

  • Page 14: Commissioning And Setting To Work

    Isolation - Before commencing work, make sure that the unit, switched live and Nuaire control are electrically isolated from the Piped connections should be made to the unit using appropriate mains supply.
  • Page 15 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) This page has been intentionally left blank 25. 11. 20. Leaflet Number 671731...

  • Page 16: Description Of Control - Software Strategy

    80°C. When this occurs, the critical alarm will latch in software. Once the unit cools, the contactor will re-engage but the heater signal will remain at 0V until the critical fault is reset in software or by power cycle. nuaire.co.uk 029 2085 8200...
  • Page 17 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) Point Name Description Range Default ENABLE Software enable switch Off / On RUNONTIME Run-on timer value 0 - 3600 Seconds TRICKLEMODE When on, fans will trickle even with no enable signal Off / On SETTEMP Desired temperature setpoint 10°C to 30°C...
  • Page 18 Force bypass damper into bypass mode (This resets on power cycle) Off / On Force bypass damper out of bypass mode (Pump failure or DAMPEROUTOFBYPASS Off / On DAMPERBYPASS switch will override this) (This resets on power cycle) FANDAMPERTEST Factory Use Only Off / On nuaire.co.uk 029 2085 8200...
  • Page 19 10-65 Ecosmart Adapt (Trend) Control (AT) 8.11 Sensors and Touch Screens To help you select the appropriate control solution for your application, simply refer to one of the options below. For the full range and technical details, please visit www.nuaire.co.uk Thermistor Temperature Sensors Code: TB/TI/S - For duct or immersion use.

  • Page 20: Electrical Details

    If an I/O damper is fitted, it must be wired to the fan run relay, and the relay supplied with the relevant supply voltage. See I/O Damper connection diagram for details. 9.5 Network Settings Default IP address: 192.168.11.12 Subnet mask: 255.255.255.0 LAN 011, node 012 nuaire.co.uk 029 2085 8200...
  • Page 21 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 9.6 Connection Chart Description IQ422 Expansion Module Din Rail Terminal Terminal No. Terminal No. Fresh Air Sensor 1 (4, 5) Supply Air Sensor 2 (6, 7) Return/Room Air Sensor 3 (8, 9) 25 - 26 Input 4 4 (10, 11)
  • Page 22 EARTH TERMINAL BLOCKS FUSE TERMINALS The earth terminal block (green/yellow) has a direct electrical Replaceable cartridge fuses are housed in quick connection to the DIN rail, with the earthing foot (earth release fuse terminals. connection only). nuaire.co.uk 029 2085 8200...

  • Page 23: Connection And Wiring Diagrams

    XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 10.0 Connection and Wiring Diagrams 10.1 Hardware Positions On The Unit Extract (Option 2) Inlet (Option 1) Supply Discharge Inlet (Option 2) Extract (Option 1) KEY TO HARDWARE POSITIONS A) Supply fan (drive & health) B) Delivery air temperature sensor C) Extract air temperature sensor D) Re-heater trip (electric heater models only)
  • Page 24 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 10.2 I/O Damper Connection 24V Actuator Version (XBC15-MD-AT) nuaire.co.uk 029 2085 8200...
  • Page 25 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 10.3 Basic Connection Diagram 25. 11. 20. Leaflet Number 671731...
  • Page 26 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 10.4 Physical Layout nuaire.co.uk 029 2085 8200...
  • Page 27 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 25. 11. 20. Leaflet Number 671731...
  • Page 28 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 10.5 XBC10-15 (No Heater/LPHW) nuaire.co.uk 029 2085 8200...
  • Page 29 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 25. 11. 20. Leaflet Number 671731...
  • Page 30 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 10.6 XBC25-65 (No Heater/LPHW) nuaire.co.uk 029 2085 8200...
  • Page 31 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 25. 11. 20. Leaflet Number 671731...
  • Page 32 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 10.7 XBC10-15 (Electric Heater) nuaire.co.uk 029 2085 8200...
  • Page 33 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 25. 11. 20. Leaflet Number 671731...
  • Page 34 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 10.8 XBC25-65 (Electric Heater) nuaire.co.uk 029 2085 8200...
  • Page 35 XBOXER XBC 10-65 Ecosmart Adapt (Trend) Control (AT) 25. 11. 20. Leaflet Number 671731...

  • Page 36: Maintenance

    The product warranty applies to the UK mainland and in accordance with Clause 14 of our Conditions of Sale. Customers purchasing from service visits. outside of the UK should contact Nuaire International Sales office for Note: The unit application may require particular attention to this further details.
  • Page 37 GENERAL In addition to the particular requirements given for the individual product, the following general requirements The equipment referred to in this Declaration of Incorporation is supplied by Nuaire to be assembled into a should be noted. ventilation system which may or may not include additional components.
  • Page 38 UNIT CONTROL TYPE NOTES 25. 11. 20. Leaflet Number 671731...
  • Page 39 UNIT CONTROL TYPE NOTES 25. 11. 20. Leaflet Number 671731...
  • Page 40 CF83 1NA +44 (0)29 2085 8200 +44 (0)29 2085 8222 info@nuaire.co.uk www.nuaire.co.uk As part of our policy of continuous product development Nuaire reserves the right to alter specifications without prior notice. Telephone calls may be recorded for quality and training purposes.
