Allen-Bradley 194L Installation Instructions

Installation Instructions
Control and load switches
(Cat. No. 194L)
Attention: To prevent electrical shock, disconnect from power source before installing or servicing. To be commissioned and maintained only by qualified personnel;
pay attention to the operating instructions!
Achtung: Vor Installations- oder Servicearbeiten Stromversorgung unterbrechen, um Unfälle zu vermeiden. Inbetriebsetzung und Wartung nur durch Fachpersonal;
Betriebsanleitung beachten!
Attention: Avant le montage et la mise en service, couper l'alimentation secteur afin d'éviter tout accident. Mise en service et entretien: seulement par du personnel
spécialisé; respecter les instructions d'exploitation!
Attenzione: Per prevenire infortuni, togliere tensione prima dell'installazione o manutenzione. Messa in servizio e manutenzione solo da personale specializzato;
attenersi alle istruzioni per l'esercizio!
Atención: Desconectar la alimentación eléctrica antes de realizar el montaje y la puesta en servico, con el objeto de evitar accidentes. Puesta en servicio y
mantenimiento exclusivamente por personal especializado; respetar las instrucciones de puesta en servicio y mantenimiento!
B
Z
D
(A)

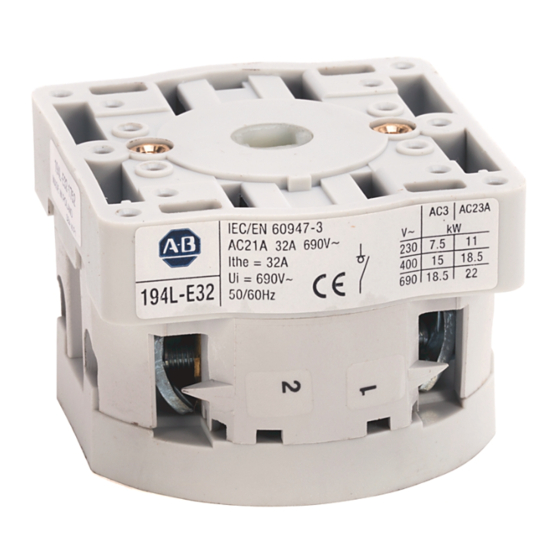

194L-E
View Z
Mounting position
194L-A
mm
[in]
A
Load Size [A] (only for
2-holes mounting)
12
16
20
25
32
ø 3.3
40
[1/8]
1
Type HE
2
Mounting position
194L-A
B
(only for D
4-holes mounting)
36
[1-27/64]
36 or 48 17
-
[1-27/64] or [1-57/64] [43/64]
36 or 48
[1-27/64] or [1-57/64]
800E-AW2
5
1
4
3
1.2Nm
4
[10.6 lb-in]
PH 2
6
5
7
3
2
4
1.2Nm
[10.6 lb-in]
PH 2
IEC/EN 60947-3
UL 60947-4-1
CAN/CSA-C22.2 No. 60947-4-1
194L-E
A
Load Size [A] (only for
2-holes mounting) 4-holes mounting)
12 28 or 32
[1-7/64] or [1-17/64]
16
20 28 or 32
[1-7/64] or [1-17/64] [1-27/64] or [1-57/64]
25
32 33
[1-19/64] [1-27/64] or [1-57/64]
40
Use front element Cat. No. 194L-HE...
3
Type HC
2
0.7 Nm
[6.2 lb-in]
0.7 Nm
PH 1
[6.2 lb-in]
PH 1
Use front element Cat. No. 194L-HE...
5
0.7 Nm
6
[6.2 lb-in]
PH 1
7
B
(only for D
36
[1-27/64]
36 or 48 9.5
[3/8]
36 or 48
194L-HC...
Optional
(only for: E, L type)
6
7
8
9
